The DV-16 NPTF Flow Control Valve is engineered for precision flow control in industrial applications. Crafted from carbon steel with a zinc-plated finish, this valve ensures durability and reliability. The color-coded spindle allows for accurate flow adjustments, while the unique safety spindle design adds an extra layer of protection. With NPTF threaded connections and ANSI certification, this valve meets rigorous industry standards for seamless integration and performance. Ideal for manifold or panel mounting, this valve offers a flow rate of 80 gpm and an operating pressure of 5000 psi, making it a versatile solution for fluid control needs.
Product Specifications
Dimensions Diameter G
1.50 in | 38 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 105 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
1.53 in | 39 mm
Dimensions Dimension F
3.07 in | 78 mm
Dimensions Dimension J
Pg 16 Thread
Dimensions Pipe Outer Diameter Od
1.050 in
Dimensions Pipe Size
3/4 in
Note 0

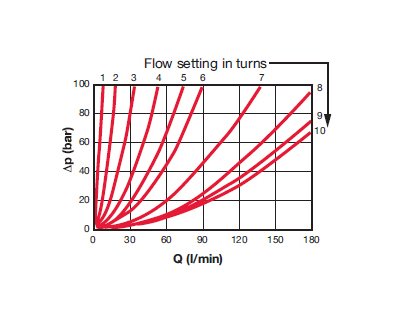

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-16-01.X/5-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
16
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV12Part Number: 00705302
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
1.2 kg | 2.6 lb
Supplementary Details 0
Panel Mounting Kit
