DV-20 NPTF Flow Control Valve - Needle Type, ANSI B1.20.3, Carbon Steel
DV-20 NPTF Flow Control Valve - Needle Type, ANSI B1.20.3, Carbon Steel
SKU:ACC-7a610c
DV-20 NPTF Flow Control Valve: Precision needle valve for reliable fluid regulation. ANSI certified.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DV-20 NPTF Flow Control Valve - Needle Type, ANSI B1.20.3, Carbon Steel
$149.99
Quantity: 1
Claim Your Seller Account
DV-20 NPTF Flow Control Valve - Needle Type, ANSI B1.20.3, Carbon Steel
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-20 NPTF Flow Control Valve is a precision-engineered needle valve designed for optimal flow control in industrial applications. Featuring NPTF threaded connections and a unique safety spindle design, this valve ensures precise regulation of fluid flow. Built with durable carbon steel and fluoroelastomer seals, it offers reliable performance in diverse operating conditions. With a color-coded spindle for visual flow control accuracy, this valve is suitable for inline mounting and manifold installations, meeting rigorous American National Standards Institute (ANSI) certifications.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.71 in | 145 mm
Dimensions Dimension B
5.04 in | 128 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Dimensions Hex Size
3/4 in | 19 mm
Dimensions Pipe Outer Diameter Od
1.315 in
Dimensions Pipe Size
1 in
Note 0

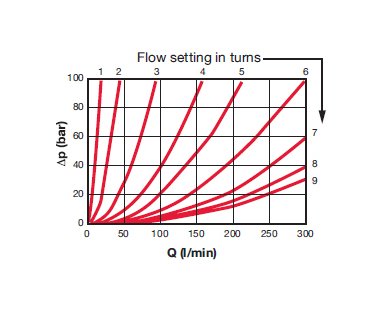

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Phosphated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-20-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
20
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
2.1 kg | 4.6 lb
