DV-25 NPTF Needle Flow Control Valve
DV-25 NPTF Needle Flow Control Valve
SKU:ACC-a2dc24
Get precise and reliable flow control with the DV-25 NPTF Needle Valve, designed for durability and accuracy.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DV-25 NPTF Needle Flow Control Valve
$129.99
Quantity: 1
Claim Your Seller Account
DV-25 NPTF Needle Flow Control Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-25 NPTF Needle Flow Control Valve is a precision-engineered valve designed for optimal flow control. Featuring SAE O-Ring, NPT or BSPP Threaded Connections, and a unique safety spindle design, this valve ensures accurate and reliable performance. With a durable construction of Carbon Steel housing and Fluoroelastomer seals, it operates at pressures up to 5000 psi and temperatures ranging from -4 to 212 °F. Ideal for manifold mounting or inline installation, this valve is color-coded for easy identification and includes provisions for panel mounting. Meet ANSI standards for quality assurance and enjoy seamless flow control with the DV-25 NPTF Valve.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Dimensions Hex Size
3/4 in | 19 mm
Dimensions Pipe Outer Diameter Od
1.660 in
Dimensions Pipe Size
1-1/4 in
Note 0

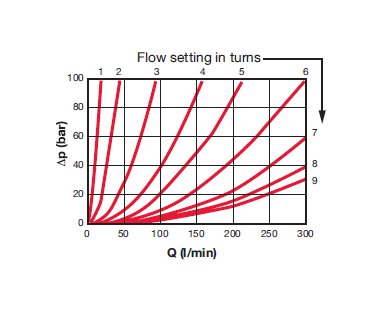

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Phosphated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-25-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
2.8 kg | 6.2 lb
