The DV-25 SAE Flow Control Valve is a precision-engineered needle valve designed for optimal flow control in industrial applications. With SAE O-Ring, NPT or BSPP Threaded Connections and a secure manifold mounting feature, this valve ensures reliable performance and seamless integration. It boasts a color-coded spindle for precise flow adjustment, a unique safety spindle design for added security, and a durable construction using Fluoroelastomer seal material and carbon steel. Meeting ISO standards and with an operating pressure of 5000 psi, this valve delivers superior functionality and longevity.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.91 in | 150 mm
Dimensions Dimension B
5.24 in | 133 mm
Dimensions Dimension C
1.18 in | 30 mm
Dimensions Dimension D
2.36 in | 60 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Dimensions Hex Size
3/4 in | 19 mm
Dimensions Thread Size
1-5/8-12 UN
Note 0

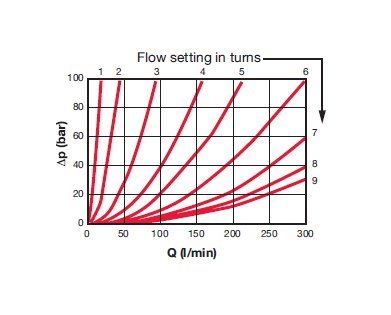

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Phosphated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-25-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
25
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-20
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
2.8 kg | 6.2 lb
