DV-30 NPTF Flow Control Valve - ANSI B1.20.3, 80 gpm, 5000 psi
DV-30 NPTF Flow Control Valve - ANSI B1.20.3, 80 gpm, 5000 psi
SKU:ACC-008e32
Precision flow control with the DV-30 NPTF Valve - ANSI B1.20.3, 80 gpm, 5000 psi
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
DV-30 NPTF Flow Control Valve - ANSI B1.20.3, 80 gpm, 5000 psi
$259.99
Quantity: 1
Claim Your Seller Account
DV-30 NPTF Flow Control Valve - ANSI B1.20.3, 80 gpm, 5000 psi
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-30 NPTF Flow Control Valve is a high-performance Needle Valve designed for precision flow control in industrial applications. Featuring NPTF threaded connections, carbon steel construction, and a unique safety spindle design, this valve ensures reliable operation in demanding environments. With a flow capacity of 80 gpm and an operating pressure of 5000 psi, it meets the highest standards of efficiency and durability. The valve's color-coded spindle allows for accurate flow adjustment, while its provision for panel mounting adds versatility to installation processes. Compliant with ANSI standards, this valve provides exceptional performance and safety in fluid control systems.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
6.10 in | 155 mm
Dimensions Dimension B
5.43 in | 138 mm
Dimensions Dimension C
1.38 in | 35 mm
Dimensions Dimension D
2.76 in | 70 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Dimensions Hex Size
3/4 in | 19 mm
Dimensions Pipe Outer Diameter Od
1.900 in
Dimensions Pipe Size
1-1/2 in
Note 0

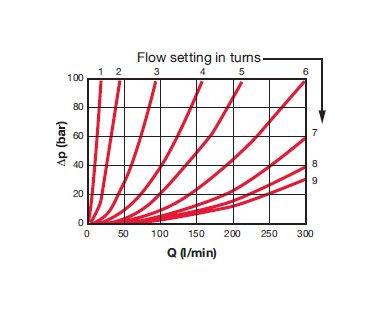

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Phosphated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-30-01.X/5
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
30
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
7.7 kg | 3.5 lb
