DV-30 SAE Flow Control Valve with Fluoroelastomer Seals
DV-30 SAE Flow Control Valve with Fluoroelastomer Seals
SKU:ACC-b769f6
Experience precise flow control with DV-30 SAE Valve, designed for durability and safety in industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DV-30 SAE Flow Control Valve with Fluoroelastomer Seals
$299.99
Quantity: 1
Claim Your Seller Account
DV-30 SAE Flow Control Valve with Fluoroelastomer Seals
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-30 SAE Flow Control Valve is designed for precise flow regulation in industrial applications. Featuring SAE O-Ring connections, NPT or BSPP threading, and a unique safety spindle design, this needle valve ensures reliable performance. With a flow rate of 80 gpm, operating pressure of 5000 psi, and a temperature range from -4 to 212 °F, it meets the demands of high-pressure systems. The valve's Fluoroelastomer seals provide excellent resistance to extreme temperatures and chemicals, enhancing durability and safety.
Product Specifications

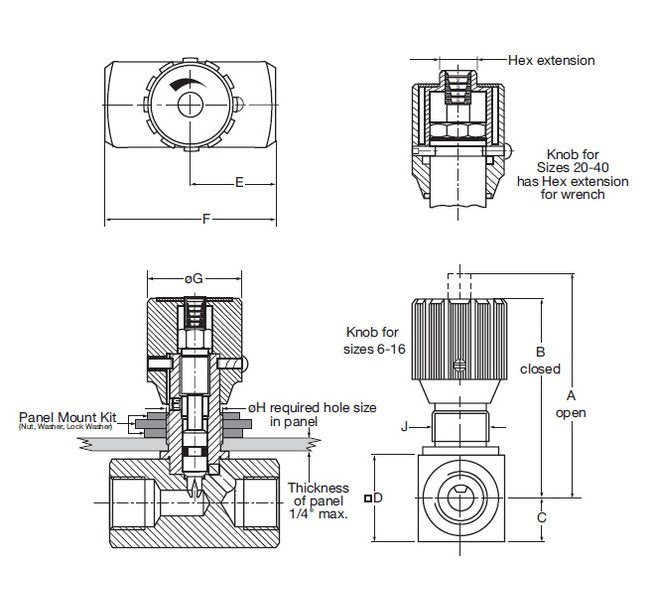

Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
6.10 in | 155 mm
Dimensions Dimension B
5.43 in | 138 mm
Dimensions Dimension C
1.38 in | 35 mm
Dimensions Dimension D
2.76 in | 70 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Dimensions Hex Size
3/4 in | 19 mm
Dimensions Thread Size
1-7/8-12 UN
Note 0

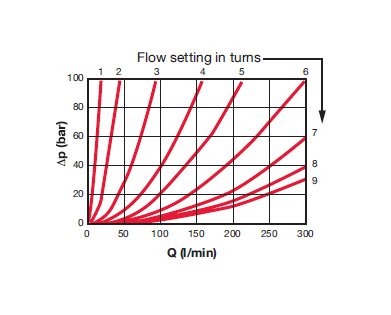

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Phosphated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-30-01.X/12
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
30
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Port Configuration
SAE - SAEJ1926 Ports with ISO 725 Threads and O-Ring Sealing
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Tube Size
-24
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
7.7 kg | 3.5 lb
