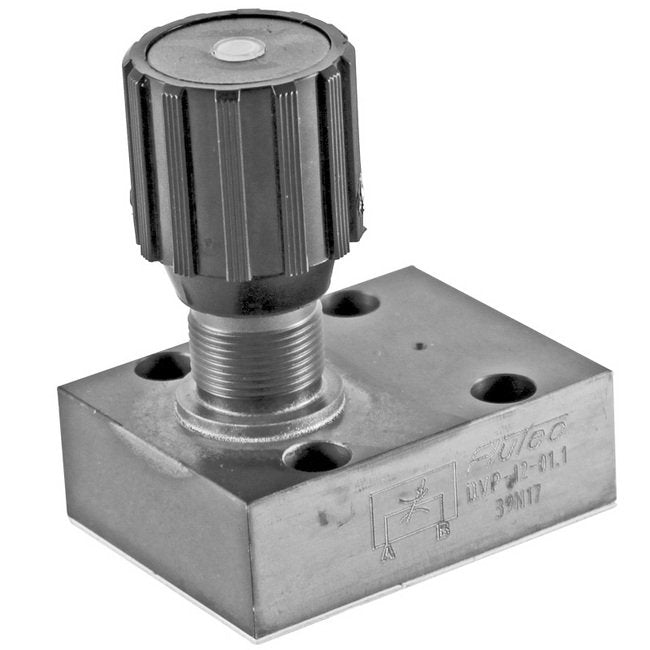

DVP-06 Flow Control Valve with Fluoroelastomer Seal

Name: DVP-06 Flow Control Valve with Fluoroelastomer Seal
Brand: HYDAC Technology Corporation
SKU: ACC-e30666
Price: 79.99 USD
Availability: OutOfStock

SKU:ACC-e30666

Precision-engineered DVP-06 Flow Control Valve with Fluoroelastomer Seal. Ideal for high-flow industrial applications, ensuring secure sealing and accurate control.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DVP-06 Flow Control Valve is a precision-engineered component suitable for a range of applications. Featuring SAE O-Ring, NPT or BSPP Threaded Connections, this valve ensures secure sealing with Fluoroelastomer O-Rings. Its Carbon Steel construction guarantees durability under challenging conditions. The valve offers a high flow rate of 80 gpm with an operating pressure of up to 5000 psi, making it ideal for demanding industrial environments. Additionally, its color-coded spindle enables accurate flow control, while the unique safety spindle design enhances operational safety. With dimensions tailored for manifold mounting and provision for panel mounting, this valve is a versatile choice for flow control systems.

Product Specifications

Dimensions Diameter G

0.94 in | 24 mm

Dimensions Diameter H

0.51 in | 13 mm

Dimensions Dimension A

2.16 in | 55 mm

Dimensions Dimension B

1.97 in | 50 mm

Dimensions Dimension C

0.31 in | 16 mm

Dimensions Dimension D

0.63 in | 16 mm

Dimensions Dimension E

0.75 in | 19 mm

Dimensions Dimension F

1.50 in | 38 mm

Dimensions Dimension J

Pg 7 Thread

Specifications Bun

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Flow

80 gpm

Specifications Housing Material

Carbon Steel

Specifications Material

Carbon Steel

Specifications Model Code Description

DVP-06-01.X

Specifications Operating Pressure

5000 psi

Specifications O Ring Material

Fluoroelastomer (FPM)

Specifications Product

FLOW CONTROL VALVES

Specifications Product Group Family

FLOW CONTROL VALVES

Specifications Seal Material

Fluoroelastomer (FKM)

Specifications Temperature Range At Full Pressure Max

-4 to 212 ÂºF

Specifications Valve Operator

Knob

Specifications Weight

0.12 kg | 0.26 lb
