DVP-08 Flow Control Valve with Fluoroelastomer Seal

Name: DVP-08 Flow Control Valve with Fluoroelastomer Seal
Brand: HYDAC Technology Corporation
SKU: ACC-d32327
Price: 99.99 USD
Availability: OutOfStock

SKU:ACC-d32327

Enhance flow control precision with the DVP-08 Valve; durable Carbon Steel construction, precise Fluoroelastomer seal, and safety spindle design.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

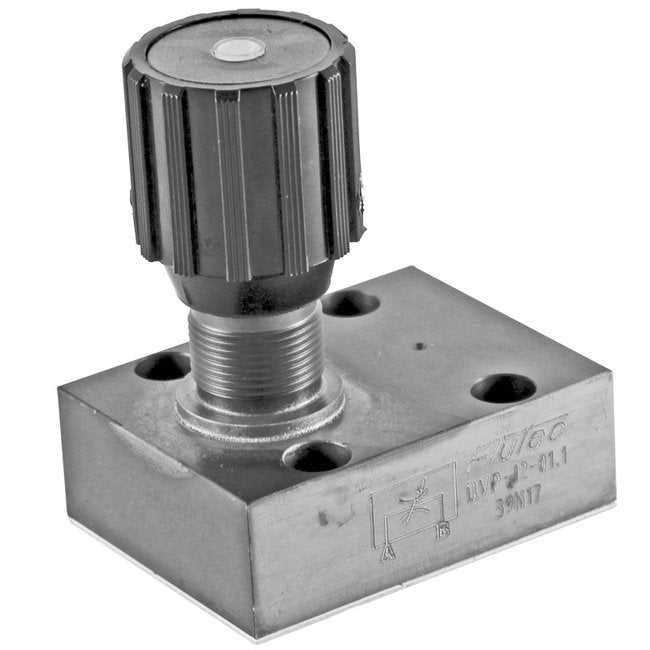

The DVP-08 Flow Control Valve is a precision-engineered valve designed for optimal flow control in various applications. Featuring SAE O-Ring and NPT or BSPP Threaded Connections, this valve ensures secure installations. The color-coded spindle allows for accurate flow adjustments, while the unique safety spindle design enhances operational safety. Made from high-quality Carbon Steel and Fluoroelastomer materials, this valve is durable and reliable. With a maximum operating pressure of 5000 psi and a flow rate of 80 gpm, the DVP-08 meets stringent industry standards for performance and reliability.

Product Specifications

Dimensions Diameter G

1.14 in | 29 mm

Dimensions Diameter H

0.75 in | 19 mm

Dimensions Dimension A

2.83 in | 72 mm

Dimensions Dimension B

2.56 in | 65 mm

Dimensions Dimension C

0.49 in | 12.5 mm

Dimensions Dimension D

0.98 in | 25 mm

Dimensions Dimension E

0.94 in | 24 mm

Dimensions Dimension F

1.89 in | 48 mm

Dimensions Dimension J

Pg 11 Thread

Specifications Bun

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Flow

80 gpm

Specifications Housing Material

Carbon Steel

Specifications Material

Carbon Steel

Specifications Model Code Description

DVP-08-01.X

Specifications Operating Pressure

5000 psi

Specifications O Ring Material

Fluoroelastomer (FPM)

Specifications Product

FLOW CONTROL VALVES

Specifications Product Group Family

FLOW CONTROL VALVES

Specifications Seal Material

Fluoroelastomer (FKM)

Specifications Temperature Range At Full Pressure Max

-4 to 212 ÂºF

Specifications Valve Operator

Knob

Specifications Weight

0.25 kg | 0.55 lb
