DVP-10 Flow Control Valve - Reliable, Durable, and Precise Fluid Management Solution
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DVP-10 Flow Control Valve - Multi-Purpose Manifold Needle Valve
$89.99
Quantity: 1
Claim Your Seller Account
DVP-10 Flow Control Valve - Multi-Purpose Manifold Needle Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

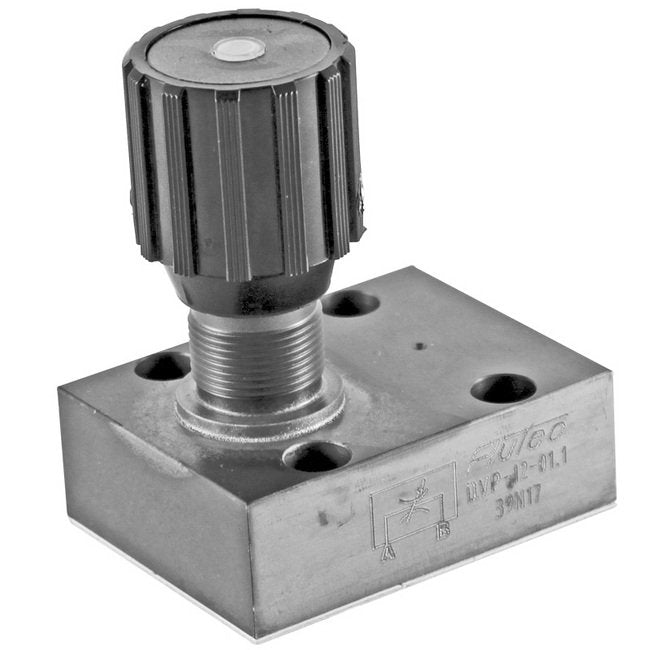

The DVP-10 Flow Control Valve is a versatile solution suitable for a wide range of applications. Crafted from durable carbon steel with a Fluoroelastomer (FKM) seal material, this valve ensures reliable performance even in demanding environments. With SAE O-Ring connections and a unique safety spindle design, precise flow control is guaranteed. Ideal for manifold mounting and panel installation, this valve features color-coded spindle for easy identification and smooth operation. Meeting stringent industry standards, this valve offers an operating pressure of 5000 psi and a flow rate of 80 gpm, making it an indispensable component for various fluid control systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 29 mm
Dimensions Dimension A
2.91 in | 74 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.14 in | 29 mm
Dimensions Dimension F
2.28 in | 58 mm
Dimensions Dimension J
Pg 11 Thread
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Material
Carbon Steel
Specifications Model Code Description
DVP-10-01.X
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FKM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Valve Operator
Knob
Specifications Weight
0.4 kg | 0.88 lb
