DVP-12 Flow Control Valve with Fluoroelastomer Seal

Name: DVP-12 Flow Control Valve with Fluoroelastomer Seal
Brand: HYDAC Technology Corporation
SKU: ACC-670d42
Price: 89.99 USD
Availability: OutOfStock

SKU:ACC-670d42

Achieve precision flow control with the DVP-12 Valve. Color-coded spindle, Fluoroelastomer seals, and robust Carbon Steel construction for industrial reliability.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

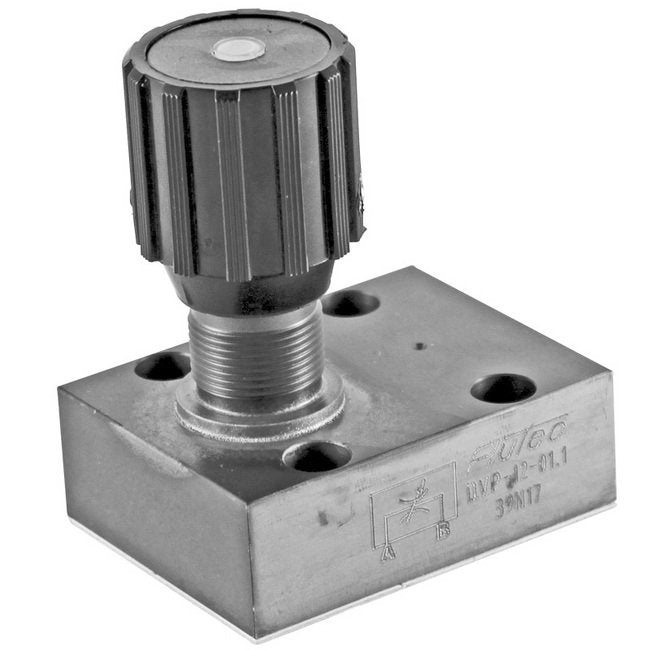

The DVP-12 Flow Control Valve is a versatile solution designed for precision flow control in industrial applications. Featuring SAE O-Ring connections and a unique safety spindle design, this valve ensures reliable performance and ease of installation. Its color-coded spindle allows for accurate flow adjustments, while the provision for panel mounting adds convenience. With a durable Carbon Steel housing and Fluoroelastomer seals, this valve offers exceptional resilience in challenging environments. Operating at a maximum pressure of 5000 psi and a flow rate of 80 gpm, the DVP-12 is a reliable choice for fluid control requirements.

Product Specifications

Dimensions Diameter G

1.50 in | 38 mm

Dimensions Diameter H

0.91 in | 23 mm

Dimensions Dimension A

3.62 in | 92 mm

Dimensions Dimension B

3.23 in | 82 mm

Dimensions Dimension C

0.69 in | 17.5 mm

Dimensions Dimension D

1.38 in | 35 mm

Dimensions Dimension E

1.34 in | 34 mm

Dimensions Dimension F

2.68 in | 68 mm

Dimensions Dimension J

Pg 16 Thread

Specifications Bun

Specifications Division

ACCESSORIES

Specifications Finish

Zinc Plated

Specifications Flow

80 gpm

Specifications Housing Material

Carbon Steel

Specifications Material

Carbon Steel

Specifications Model Code Description

DVP-12-01.X

Specifications Operating Pressure

5000 psi

Specifications O Ring Material

Fluoroelastomer (FPM)

Specifications Product

FLOW CONTROL VALVES

Specifications Product Group Family

FLOW CONTROL VALVES

Specifications Seal Material

Fluoroelastomer (FKM)

Specifications Temperature Range At Full Pressure Max

-4 to 212 ÂºF

Specifications Valve Operator

Knob

Specifications Weight

0.7 kg | 1.5 lb

DVP-12 Flow Control Valve with Fluoroelastomer Seal
