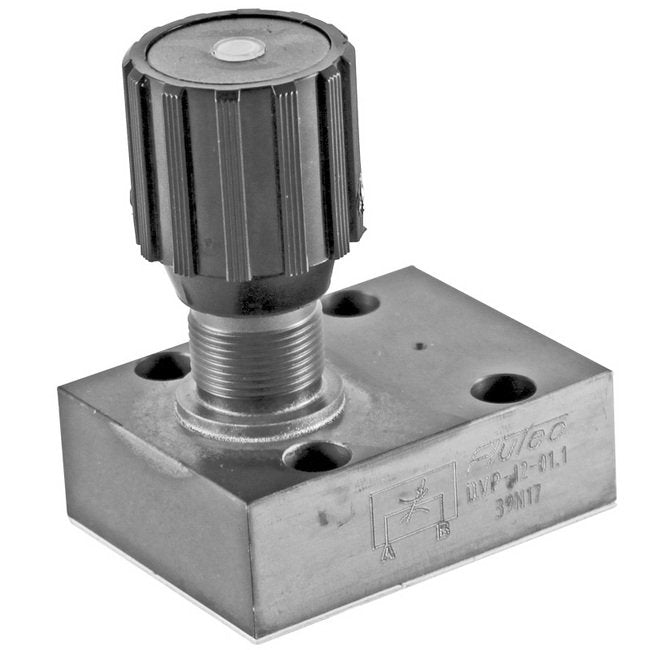

DVP-16 Flow Control Valve - Industrial Grade Steel Manifold Valve
DVP-16 Flow Control Valve - Industrial Grade Steel Manifold Valve
SKU:ACC-1c9575
High-performance DVP-16 Flow Control Valve for precise industrial flow regulation. Durable Carbon Steel construction, Color coded spindle, and unique safety design for operational reliability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DVP-16 Flow Control Valve - Industrial Grade Steel Manifold Valve
$129.99
Quantity: 1
Claim Your Seller Account
DVP-16 Flow Control Valve - Industrial Grade Steel Manifold Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DVP-16 Flow Control Valve is a robust solution for precise flow regulation in industrial settings. Engineered with SAE O-Ring, NPT or BSPP Threaded Connections, this valve ensures secure installations. Its Color coded spindle allows for accurate adjustment, while the unique safety spindle design enhances operational safety. Crafted from high-quality Carbon Steel with Fluoroelastomer seals, this valve guarantees durability and reliability. With a flow rate of 80 gpm and an operating pressure of 5000 psi, it delivers optimal performance in demanding environments. Ideal for manifold mounting and with provision for panel mounting, this valve combines efficiency with convenience.
Product Specifications
Dimensions Diameter G
1.50 in | 29 mm
Dimensions Diameter H
0.91 in | 23 mm
Dimensions Dimension A
4.17 in | 105 mm
Dimensions Dimension B
3.78 in | 96 mm
Dimensions Dimension C
0.89 in | 22.5 mm
Dimensions Dimension D
1.77 in | 45 mm
Dimensions Dimension E
1.53 in | 39 mm
Dimensions Dimension F
3.07 in | 78 mm
Dimensions Dimension J
Pg 16 Thread
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Material
Carbon Steel
Specifications Model Code Description
DVP-16-01.X
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FKM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Valve Operator
Knob
Specifications Weight
1.2 kg | 2.6 lb
