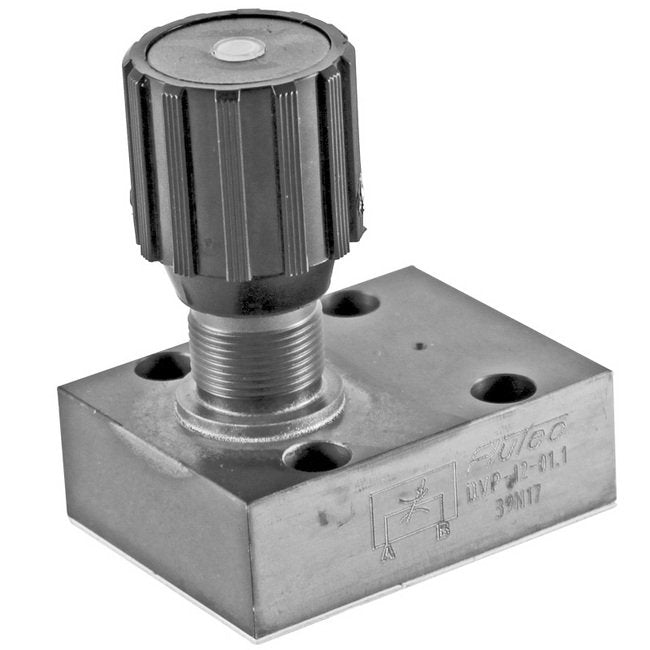

DVP-20 Flow Control Valve with Color Coded Spindle
DVP-20 Flow Control Valve with Color Coded Spindle
SKU:ACC-81d903
Precision flow control valve with color-coded spindle for accurate operations. Durable materials, high flow capacity, and operating pressure make it ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DVP-20 Flow Control Valve with Color Coded Spindle
$129.99
Quantity: 1
Claim Your Seller Account
DVP-20 Flow Control Valve with Color Coded Spindle
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DVP-20 Flow Control Valve is a precision-engineered solution designed for seamless flow control in industrial settings. Featuring SAE O-Ring, NPT or BSPP threaded connections, this valve ensures reliable performance. The color-coded spindle allows for easy and accurate flow control, while the unique safety spindle design enhances operational safety. Constructed with Fluoroelastomer (FKM) seal and housing materials, this valve is durable and can withstand temperatures ranging from -4 to 212 °F. With a flow capacity of 80 gpm and an operating pressure of 5000 psi, the DVP-20 is a versatile and efficient choice for fluid control.
Product Specifications
Dimensions Diameter G
1.93 in | 49 mm
Dimensions Diameter H
1.50 in | 38 mm
Dimensions Dimension A
5.71 in | 145 mm
Dimensions Dimension B
5.04 in | 128 mm
Dimensions Dimension C
0.98 in | 25 mm
Dimensions Dimension D
1.97 in | 50 mm
Dimensions Dimension E
2.13 in | 54 mm
Dimensions Dimension F
4.25 in | 108 mm
Dimensions Dimension J
Pg 29 Thread
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Material
Carbon Steel
Specifications Model Code Description
DVP-20-01.X
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FKM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Valve Operator
Knob
Specifications Weight
2.1 kg | 4.6 lb
