Dymax® 2,500 CP Optical Adhesive
Dymax® 2,500 CP Optical Adhesive
SKU:OPT-f97b58
Dymax® 2,500 CP Optical Adhesive: Rapid UV cure, optically clear, low stress, high strength for lens bonding & optical assembly.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dymax® 2,500 CP Optical Adhesive
$39.99
Quantity: 1
Claim Your Seller Account
Dymax® 2,500 CP Optical Adhesive
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

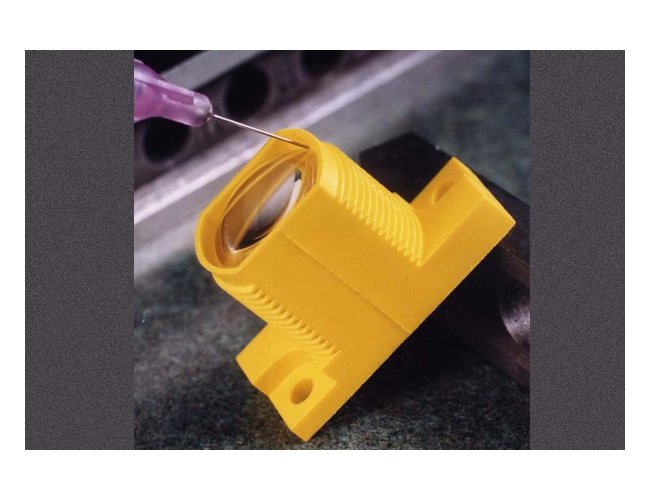

The Dymax® 2,500 Centipoises (CP) Optical Adhesive is a high-quality one-part optical epoxy that provides low-stress, low-movement, and gap-filling solutions for lens bonding, laminating, positioning, VCSEL potting, and fiber optic assembly applications. With a nominal viscosity of 2,500 cP and a refractive index of 1.50, this adhesive cures rapidly under UV/Visible light, forming high-tensile-strength, optically clear bonds with low shrinkage. Resilient, yellowing-resistant, and solvent-free, it adheres well to glass, metal, ceramic, quartz, and plastic substrates, ensuring durable and stable optical assemblies.
Product Specifications
Additional Information Additional Information
Optical Adhesive for Bonding Plastics to Glass and MetalDymax® OP-29 UV cure optical adhesive forms tough, resilient bonds to glass, metals, and a variety of plastics including polycarbonate and polyimide. OP-29 adhesive cures in seconds upon exposure to UV light. OP-29 adhesive is available in two viscosities: a free-flowing liquid (OP-29) or as a thixotropic gel (OP-29-GEL).Recommended applications included tacking, bonding, sealing, and potting.Dymax® materials are no solvents added and cure upon exposure to light. Their ability to cure in seconds results in lower processing costs. When cured with Dymax® UV light curing spot lamps, focused beam lamps, flood lamps, or conveyor systems they deliver optimum speed and performance for maximum efficiency. Dymax® lamps offer the optimum balance of UV and visible light for the fastest, deepest cures.
Features Features
Cures with UV/Visible lightOptically clear adhesiveResilientResists yellowingLow stressOne component, no mixing requiredno solvents addedFlexibleMedium viscosity for gap filling
Specifications Linear Shrinkage
0.79 %
Specifications Nominal Viscosity
2,500 cP
Specifications Refractive Index Cured At 25 Degree Celsius C Tem
1.50
