Dymax® 775 Spool Control Valve
Dymax® 775 Spool Control Valve
SKU:ADH-3e5e20
Accurately dispense medium- to high-viscosity fluids with the Dymax® 775 Spool Control Valve. Ideal for automated applications.
Regular price
$329.99
Regular price
Sale price
$329.99
Unit price
per
Initiate Order
Dymax® 775 Spool Control Valve
$329.99
Quantity: 1
Claim Your Seller Account
Dymax® 775 Spool Control Valve
$329.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

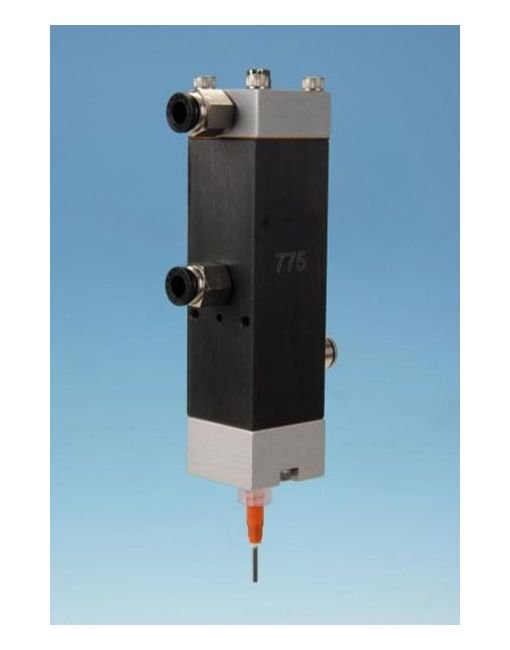

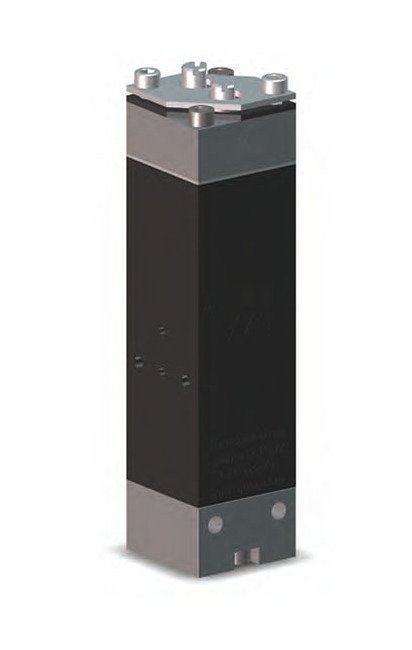

The Dymax® 775 Series Spool Control Valve is a precision tool designed to dispense medium- to high-viscosity fluids accurately. With adjustable suck-back and flow control features, this valve ensures clean shut-off, eliminating droplets and skinning-over. From dispensing volumes as small as 0.01mL to 50mL, it offers versatility and compatibility with various fluids and packaging systems. Lightweight and easy to mount, the Model 775 is ideal for automated applications, providing reliable performance in adhesive dispensing systems.
Product Specifications
Accessories 0
Item # - T15450Description - Valve Mounting Assembly
Benefits 0
Provides a crisp, clean shut-off of materials eliminating droplets and skinning-over at the end of the dispense tipValve is compatible with a larger variety of fluidsProvides accurate dispensing in shots from 0.01 mL to 50 mLLock prevents drifting or tamperingCompatible with most standard fluid packages and delivery systems Easy to handle and mount in automated or bench-top systems
Features 0
Adjustable suck-back for crisp, clean shut-off of materialsAvailable with PTFE or Fluoroelastomer sealsAdjustable and lockable flow control for accurate dispensing shotsAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight for easy handling and mounting
Specifications Activation
3-Way Solenoid Valve | DVC-345
Specifications Construction Materials
Fluoroelastomer | PTFE
Specifications Seal Material
PTFE
Specifications Thread Size
1/4 in
Specifications Thread Type
National Pipe Thread (NPT)
Specifications Type
No Reservoir

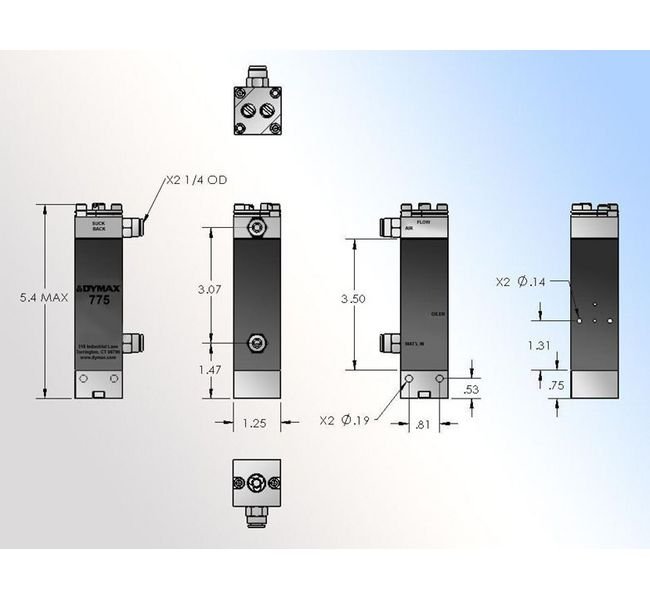

Specifications Valve Depth
1.25 in | 3.18 cm
Specifications Valve Height
5.42 in | 13.77 cm
Specifications Valve Type
Modified Spool, Normally Closed
Specifications Valve Width
1.25 in | 3.18 cm
System Includes 0
All systems includeModel 775 ValveSelected ReservoirFluid Line KitsStandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
