Dymax® Four Pole UV Lightguide
Dymax® Four Pole UV Lightguide
SKU:ULT-81ca71
Rapidly and precisely cure UV adhesives with the Dymax® Four Pole UV Lightguide. Compatible with BlueWave® MX-150. Transparent and non-toxic design.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Dymax® Four Pole UV Lightguide
$269.99
Quantity: 1
Claim Your Seller Account
Dymax® Four Pole UV Lightguide
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

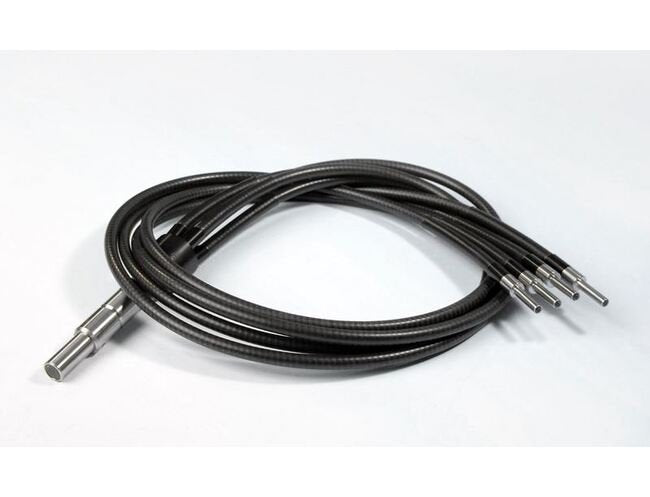

The Dymax® Four Pole UV Lightguide is an essential accessory for spot-curing systems, designed to provide rapid and precise UV light curing for adhesives, coatings, and sealants. Featuring a non-toxic and non-flammable liquid core within durable plastic tubing, this light guide is transparent from 270 to 720 nm. With sealed ends made of high-quality quartz glass and metal tubing, protected by a plastic sleeve, this light guide ensures controlled UV light emission. The Dymax® Four Pole UV Lightguide is compatible with the BlueWave® MX-150 system and offers a light output range of approximately 37% to 90%, delivering superior performance for diverse curing applications.
Product Specifications
Accessories 0
Lightguide Mounting StandsItem # - 39700Item Name - Single Lightguide Mounting StandDescription - Utilizes a 24" flexible arm for mounting 3, 5, and 8-mm lightguides. This stand offers a 5" x 5" (127 mm x 127 mm) working area and allows repeatable, hands-free spot curing.Item # - 41325Item Name - Acrylic Lightguide Mounting StandDescription - Multiple lightguides can be securely mounted on this stand for repeatable, hand-free spot curing.Item # - 41595Item Name - Lightguide Stand Expansion KitDescription - Allows the Dymax® acrylic lightguide mounting stand to hold up to four lightguide poles.Lightguide TerminatorsDescription - Lightguide terminators can be attached to the end of a lightguide to help users get UV light to those difficult-to-reach locations.Item # - 39029 - 3 mm/60ºItem # - 39030 - 3 mm/90ºItem # - 38042 - 5 mm/60ºItem # - 38049 - 5 mm/90ºItem # - 39334 - 8 mm/60ºItem # - 39333 - 8 mm/90ºLightguide SimulatorsDescription - A lightguide simulator can be used to accurately measure the direct light intensity from the system's energy source.Item # - 38408Item Name - Lightguide Simulator, 7 mm DiameterItem # - 36987Item Name - Lightguide Simulator, 5 mm Diameter
Additional Information 0
Liquid lightguides help minimize degradation of light intensity over time and transmit the highest light intensity available for UV curing. But when light guides are not clean, the performance of your curing set up can become compromised. In this video, you'll learn how to tell when a liquid light guide needs to be cleaned, and how to clean it, ensuring optimal light-curing performance.
Features 0
Protected against degradation with the Dymax® Cool Blue⢠FilterTransmit 20-30% more UVA light than more costly quartz light wandsStand up to cleaning and flexing better than quartz fiberLight spectrum output is more favorable to photoinitiators in the UVA, violet, as well as blue ranges (300-460 nm)Standard Dymax® multipole configurations incorporate integrating rods for a more balanced output from pole-to-pole
Specifications Compatible Dymax Systems
BlueWave® MX-150
Specifications Extended Rangeultraviolet B Uvb
To obtain the benefits of UVB lightguides, filters must be removed
Specifications Lightguide Size
3 mm x 1 M
Specifications Note For Pole And Longitudinal Size
Lightguide adapter conversion kit (part #42932;) is required for use with BlueWave® MX-150
Specifications Number Of Poles
Four
Specifications Output Range
~ 37 to ~ 90 %
Specifications Ultraviolet A Uva Range
Transmits 20-30% more than quartz light wands
