Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive
Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive
SKU:GAS-c5cce7
Form durable seals in seconds with Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive
$39.99
Quantity: 1
Claim Your Seller Account
Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax® GA-120 UV Light-Curable Gasket Sealant Adhesive offers a fast, efficient solution for forming protective barriers on complex surfaces. With a nominal viscosity of 1,000 cP and a cured durometer hardness of 00 to 50, this adhesive ensures a complete cure in as little as 30 seconds, providing excellent adhesion to glass, plastics, and metals. It eliminates the need for ovens and racks, reducing waste and improving efficiency. Ideal for automotive, electrical, HVAC, and energy applications, this silicone-free adhesive is self-leveling, soft, and tacky, delivering superior performance and reliability.
Product Specifications
Additional Information Additional Information

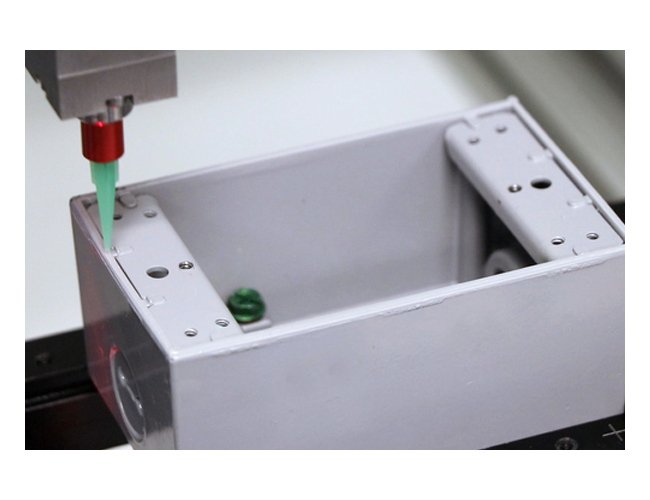

Light-Curable, Self-Leveling Flexible FIP Gasket ResinDymax® GA-120 is a form-in-place (FIP) and cure-in-place (CIP) gasketing resin formulated for immediate parts processing and increased throughput. This product is ideal for speaker assembly, sound damping, and automotive enclosures applications which require soft, tacky, flexible gasket with good deflection and self-leveling viscosity.This gasketing material has good adhesion to plastic as well as metal surfaces. Easily dispense this resin into intricate and complex component configurations. The added benefit of curing in-line allowing for increased production speed and greater output, as well as reduced inventories.Dymax® materials have no solvents added and cure upon exposure to light. Their ability to cure in seconds results in lower processing costs. When cured with Dymax® UV light curing spot lamps, focused beam lamps, flood lamps, or conveyor systems they deliver optimum speed and performance for maximum efficiency. Dymax® lamps offer the optimum balance of UV and visible light for the fastest, deepest cures.
Features Features
Cures with UV/Visible lightSoft, tacky gasketSelf-leveling viscosityCures in secondsGreatest deflectionGood adhesion to nylon and metalsSilicone freeNo solvents added
Specifications Cured Compression Set At 85 Degree Celsius C Temp
0.17 %
Specifications Cured Durometer Hardness
00 to 50
Specifications Nominal Viscosity
1,000 cP
Specifications Note For Cured Compression Set At 85 Degree Celsi
Compression set is expressed as percentage of deflection per ASTM D395 Method B at 25% deflection. To determine percent recovery, subtract 1/4 of the value from 100%. For example, the recovery is 98.8% with a 5% compression set.
Specifications Recommended Substrates
Metals | Plastics
