The Dymax® GA-140 UV-Curable Gasket Sealant Adhesive is a high-performance solution designed for form-in-place and cure-in-place applications that require a soft, tack-free, low-outgassing, and flexible gasket with compression set. With a nominal viscosity of 39,000 cP and a cured durometer hardness of A35, this adhesive offers excellent adhesion to metals, most plastics, and nylon. Its UV-curing properties make it clear in color, tear-resistant, and silicone-free. Ideal for automotive, electronic, HVAC, and energy applications, it cures in seconds, reducing production time and costs while improving overall efficiency.
Product Specifications
Additional Information Additional Information

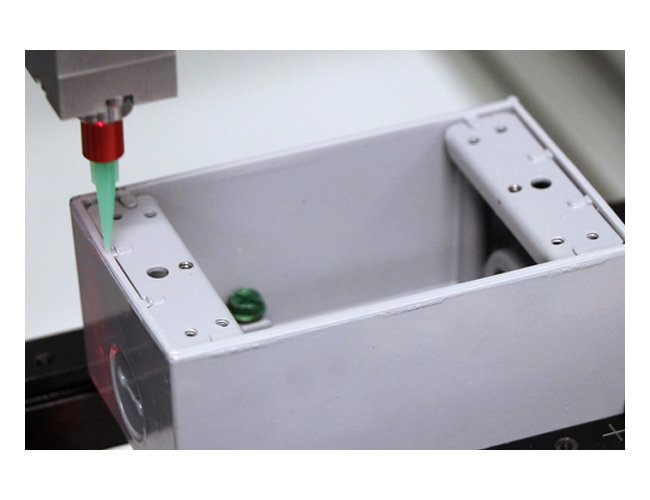

UV-Curable Moisture & Chemical Resistant FIP GasketDymax® GA-140 form-in-place (FIP) and cure-in-place (CIP) gasketing resin is formulated for fuel cell, automotive door handle, appliance housing, and critical electronic assembly and device applications which require a soft, tack-free, low-outgassing, flexible gasket with compression set. GA-140 has good adhesion to nylon and plastic surfaces. Additionally, form-in-place gaskets may help to improve and extend battery life as well as increase their reliability.The resin can be dispensed in intricate and complex configurations with the added benefit of curing in-line which allows for increased production speed and reduced inventories. It has no solvents added and cures upon exposure to light. The ability of GA-140 to cure in seconds enables faster processing, greater output, and lower assembly costs. When cured with Dymax® light-curing spot lamps, focused-beam lamps, or flood lamps, it delivers optimum speed and performance for maximum efficiency. Dymax® lamps offer the ideal balance of UV and visible light for the fastest, deepest cures.This product is in full compliance.
Features Features
Cures with UV/Visible lightLow outgassingCures soft and tack freeExcellent tear resistanceClear in colorCures in secondsSilicone freeConforms to intricate channels or recesses
Specifications Cured Compression Set At 85 Degree Celsius C Temp
14.9 %
Specifications Cured Durometer Hardness
A35
Specifications Nominal Viscosity
39,000 cP
Specifications Note For Cured Compression Set At 85 Degree Celsi
Compression set is expressed as percentage of deflection per ASTM D395 Method B at 25% deflection. To determine percent recovery, subtract 1/4 of the value from 100%. For example, the recovery is 98.8% with a 5% compression set.
Specifications Recommended Substrates
Metals | Most plastics (Acrylonitrile Butadiene Styrene (ABS), Polyvinyl chloride (PVC), Polycarbonates (PC), Polymethyl methacrylate (PMMA)) | Nylon
