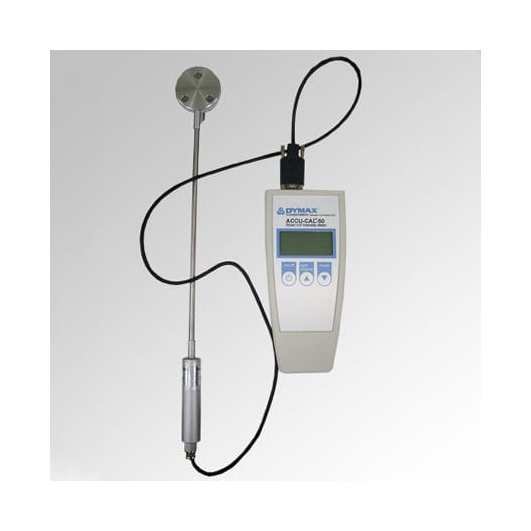

Dymax ACCU-CAL 50 UV Radiometer for Spot and Flood Lamps
Dymax ACCU-CAL 50 UV Radiometer for Spot and Flood Lamps
SKU:ULT-7cec2b
Accurate UV intensity measurement for spot and flood lamps. Easy to use with reliable results. PTB and NIST traceable.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dymax ACCU-CAL 50 UV Radiometer for Spot and Flood Lamps
$599.99
Quantity: 1
Claim Your Seller Account
Dymax ACCU-CAL 50 UV Radiometer for Spot and Flood Lamps
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax ACCU-CAL 50 Ultraviolet (UV) Intensity Meter Radiometer is a vital tool for ensuring consistent UV light curing in various applications. With a spectral sensitivity of 320 to 395 nm (UVA), it accurately measures UV intensities ranging from 1 mW/cm² to 40 W/cm². Designed for easy operation, this radiometer can measure UV light from lightguides, flood systems, and conveyors, making it versatile for industrial settings. The ACCU-CAL 50 comes complete with lightguide adapters and a simulator for precise measurements. It offers PTB and NIST traceable readings, ensuring reliability and adherence to industry standards.
Product Specifications
Accessories 0
Item # - 39554Item Name - Flood to Spot Adapter KitDescription - Kit includes three lightguide adapters (3 mm, 5 mm, and 8 mm) and a lightguide simulator (A lightguide simulator is used to measure direct spot lamp intensity (required to calculate lightguide transmission)).Item # - 39556Item Name - 3 mm Lightguide AdapterDescription - Fits 3 mm ID lightguides (5 mm OD)Item # - 39557Item Name - 5 mm Lightguide AdapterDescription - Fits 5 mm ID lightguides (7 mm OD)Item # - 39558Item Name - 8 mm Lightguide AdapterDescription - Fits 8 mm ID lightguides (10 mm OD)Item # - 38408Item Name - Lightguide Simulator (5 mm)Description - 5 mm lightguide simulator with a standard D connection
Dymax Accu Cal Radiometers 0
Dymax® offers ACCU-CAL⢠radiometers for spots, floods, and conveyors. Kits for spot lamps include the complete radiometer with 3, 5, and 8 mm lightguide adapters and a lightguide simulator. Adapter kits are available separately for users who have an existing flood/conveyor kit and need to use it for spot systems. All radiometer kits include a storage/carrying case. ACCU-CAL⢠radiometers are calibrated to measure either UV-A (320 to 390 nm), LED (~ 350 to 450 nm), or visible (395 nm to 465 nm) light intensity.
Features 0
Simple to OperateCan be Used to Test Spot or Flood Lamps, as Well as Conveyor SystemsSet Screw Locks Lightguide in PlacePTB and NIST Traceable
Measurement Modes Dose Measurement Modes
J/cm²
Measurement Modes Intensity Measurement Modes
mW/cm² | W/cm²
Measurement Modes Peak Intensity Measurement Modes
mW/cm² | W/cm²
Meter Dimensions Meter Length
120 mm
Meter Dimensions Meter Thickness
23 mm
Meter Dimensions Meter Width
65 mm
Operating Temperature Ranges Continuous Detector Operating Tempe
120 ºC
Operating Temperature Ranges Continuous Peak Operating Temperatu
200 ºC
Operating Temperature Ranges Optometer Operating Temperature Ran
+ 5 to + 40 ºC
Power Supply Battery Type
AA
Power Supply Number Of Battery
2
Radiometer Calibration 0
Dymax® recommends calibrating the ACCU-CAL⢠50 radiometer annually to ensure proper operation of the instrument. Calibration services are available through Dymax®.
Resolution Dose
1 mJ/cm²
Resolution Intensity
1 mW/cm²
Sensor Dimensions Cable Length
1 m
Sensor Dimensions Diameter
37 mm
Sensor Dimensions Photo Sensor Diameter
9 mm
Sensor Dimensions Thickness
8 mm
Specifications Approval
CE Marked
Specifications Battery Life
250 h
Specifications Calibration Period
12 months
Specifications Intensity Range
1 mW/cm² to 40 W/cm²
Specifications Lightguide Size
3 mm | 5 mm | 8 mm
Specifications Light Sources Application
Conveyors | Floods
Specifications Spectral Sensitivity
320 to 395 nm
Three Reasons To Use A Ultraviolet Uvvisible Radiometer Three Re
Maintaining a Light-Curing Process - A radiometer measures whether a light-curing system is providing intensity above the "bulb change" intensity. Radiometers provide the same monitoring control for light curing processes that thermometers provide for thermal processes.Providing a Worker Friendly Light-Curing Process - The ACCU-CAL⢠50 is sufficiently sensitive to measure the intensity of stray or reflected UV light (as little as 1 mW/cm2). Dymax® recommends that worker UVA exposure not exceed 1 mW/cm2. For reference, UV (320 to 395 nm) intensity on a sunny day can range from 2 to 6 mW/cm2.Measuring Transmission Rates Through Substrates - A radiometer can be used to measure the transmission rates of various wavelengths through substrates that absorb UV and/or visible light. To assure an effective curing process it is critical to measure the light intensity reaching the resin below the intervening substrate.
