Dymax BlueWave 200 UV LED Spot-Curing System
Dymax BlueWave 200 UV LED Spot-Curing System
SKU:ULT-6992ee
High-intensity UV LED spot-curing system for precise adhesive, coating, and encapsulant curing applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dymax BlueWave 200 UV LED Spot-Curing System
$1,899.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave 200 UV LED Spot-Curing System
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

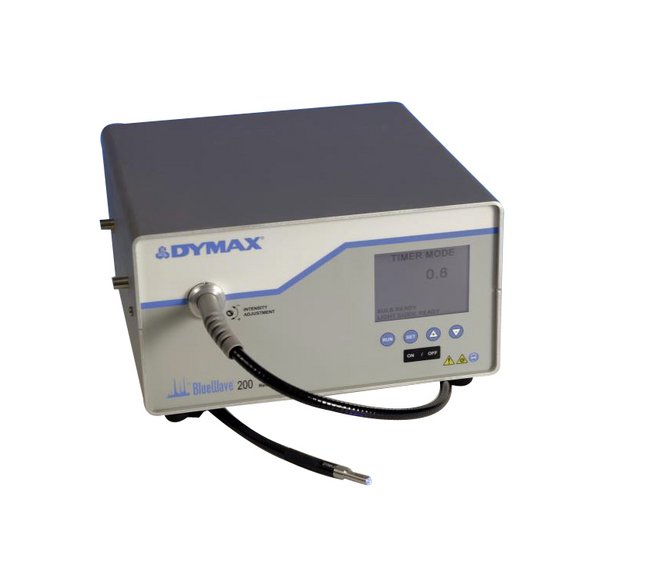

The Dymax BlueWave 200 UV LED Spot-Curing System is a high-intensity light-curing lamp system designed for precise adhesive, coating, and encapsulant curing applications. With adjustable intensity and a digital timer-controlled shutter, this system offers ease of operation and consistent performance across voltage variations. The system's features include a proprietary filter for lightguide protection, enhanced LCD display for status monitoring, and compatibility with a range of lightguides for application flexibility.
Product Specifications
Accessories 0

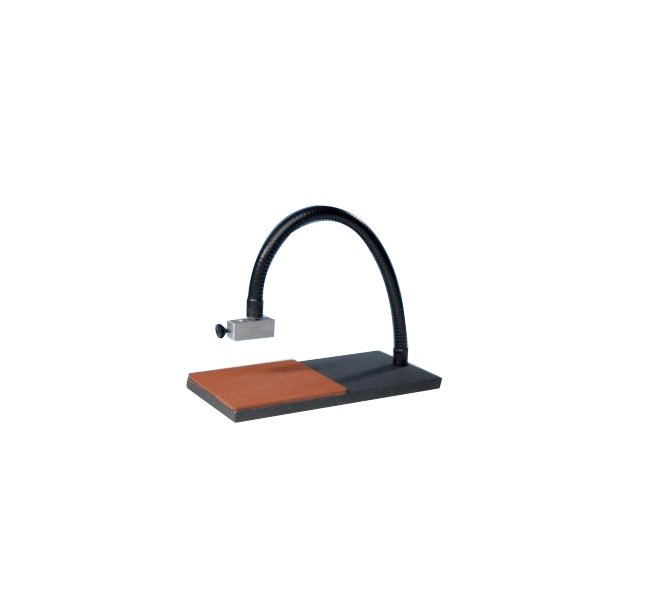

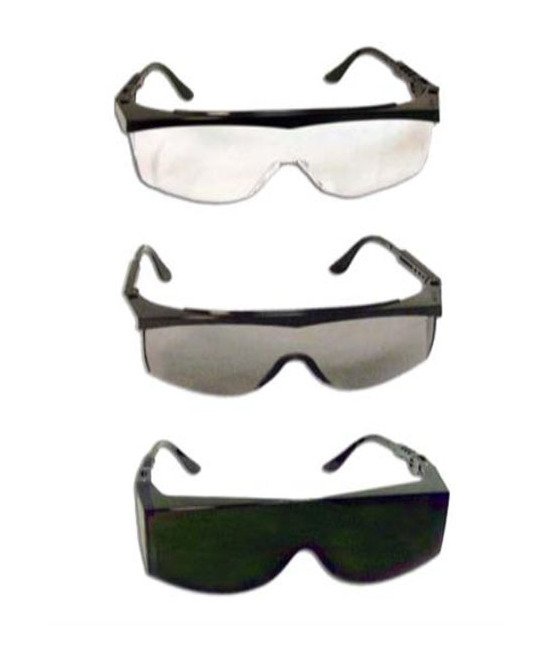

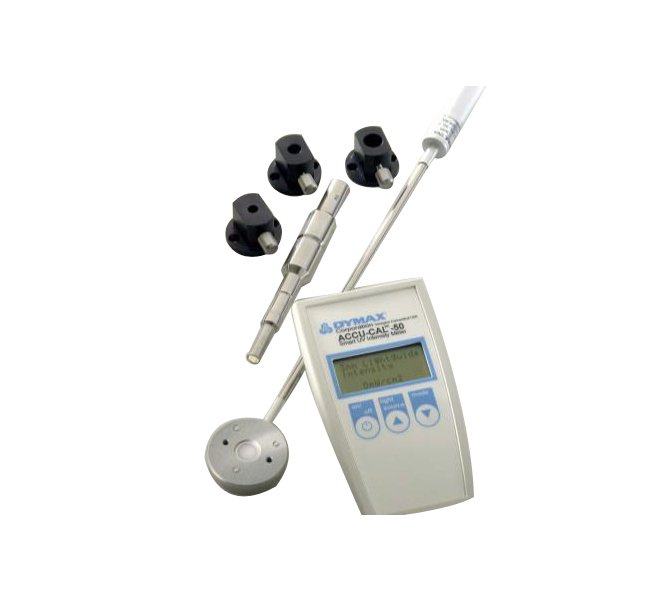

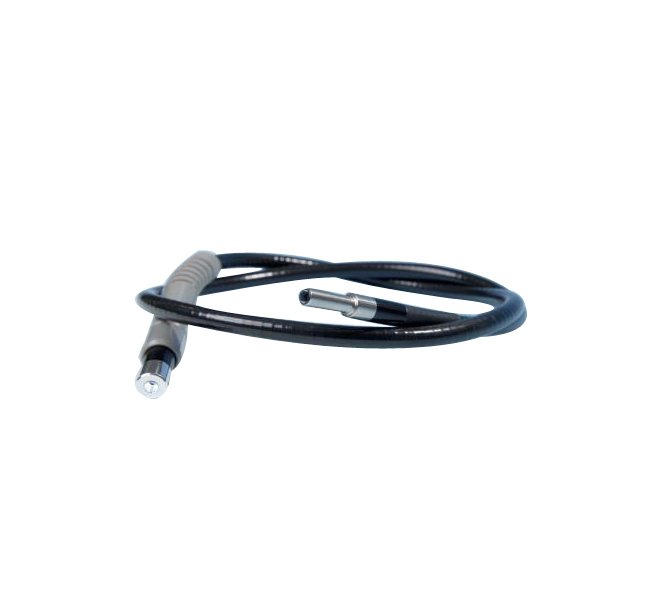

Item # 39560 ACCU-CAL⢠50 Radiometer for measuring the UV intensity of spot lamps, flood lamps, and conveyor systemsItem # 35284 UV-Blocking - Clear, Over-the-Glasses Eye Protection Item # 35285 UV-Blocking - Tinted Dark, Over-the-Glasses Eye ProtectionItem # 35286 UV-Blocking - Tint, Over-the-Glasses Eye ProtectionItem # 39700 Lightguide Mounting Stand (fits 3 mm, 5 mm and 8 mm lightguides)Liquid Lightguides available in 1, 2, 3, & 4 pole configurations Item # 39029 3 mm/60º Angled Terminators for LightguidesItem # 39030 3 mm/90º Angled Terminators for LightguidesItem # 38042 5 mm/60º Angled Terminators for LightguidesItem # 38049 5 mm/90º Angled Terminators for LightguidesItem # 38968 Rod Lenses (BlueWave 200 with rod lens stand and clamp)Item # 38699 2" x 2" Area (100 mW/cm²) Rod LensesItem # 38698 5" x 5" Area (30 mW/cm²) Rod Lenses
Additional Information 0
The faceplate design of the BlueWave® 200 V3.1 has an operator interface with an easy-to-read LCD display and patented intensity adjustment control. The control is important for validating an appropriate intensity range and maintaining that range during production. Intensity measurement is easily accomplished with the Dymax® ACCU-CAL⢠50 radiometer. Scheduled intensity measurements taken during the production process will indicate whether additional intensity adjustments are required. This method of measurement provides the most accurate readings as they are taken through the lightguide in the actual production setting.
Features 0
Patented intensity adjustment featureSimple to operate and adjustIntegral shutter with digital timerProprietary "Cool Blueâ¢" filter virtually eliminates liquid lightguide degradationEasy-to-read, lighted front panel LCD display with enhanced unit status and notification displaysImproved user interface for easier operationExtended exposure time settings to 9999.9 secondsManual intensity adjustment, >17000 mW/cm2 initial intensityUp to 2000 hours useful bulb lifeFoot switch or PLC integrationWide range of lightguides available (liquid/fiber, single/multi-pole, various lengths)Controlled power-up sequence ensures proper temperatureSmooth front panel surface that is easier to cleanFast bulb replacement
New 30 Design Includes 0
Updated front panel and large LCD displaySmooth, easy-to-clean front faceplateImproved operator interfaceControlled warm-up sequenceExtended exposure timer setting to 9999.9 secondsNo light leakage from enclosure
Overall Dimensions Overall Depth
12 in | 30.5 cm
Overall Dimensions Overall Height
6.5 in | 16.5 cm
Overall Dimensions Overall Width
12.5 in | 31.8 cm
Power Requirements Alternating Current Ac Voltage
100 to 240 V
Power Requirements Current
2.5 A
Power Requirements Frequency
50 to 60 Hz
Specifications 0
Replacement Bulb - 38465
Specifications Approval
CE Marked
Specifications Bulb
200 Watt metal-halide bulb included | Replacement in less than one minute
Specifications Bulb Warranty
Ignition warranted for 2000 hours
Specifications Cooling
Filtered fan arrangement; thermally controlled to maintain proper lamp temperature
Specifications Display
320 by 240 Pixels | LCD | Monochromatic
Specifications Inputoutput Io Port
15 Pin D - Sub-miniature Connector
Specifications Input Signals Programmable Logic Controller Plc I
Lamp Control | Programmable Logic Controller (PLC) Enable | Shutter Activate | Shutter Deactivate
Specifications Intensity Adjustment
Manual from 1 to 100 % Output
Specifications Output Signals Programmable Logic Controller Plc
Bulb Life Expired | Bulb Life Warning | Lamp Status | Lightguide Status | Power Status | Shutter Fault | Shutter Status | Temperature Fault | Unit Status
Specifications Power Supply
Solid-state, 200 Watt
Specifications Reflector
Elliptical; Glass with Dichroic Coating to Reflect Ultra Violet (UV) | Minimize Infrared Radiation (IR)
Specifications Shutter Activation
Foot Switch | Programmable Logic Controller (PLC)
Specifications Shutter Timer
Digital LCD timer up to 9999.9 seconds | Manual or timed shutter
Specifications Total Initial Intensities
280 to 450 nm | 40+ W/cm²
Specifications Type
Asian Version (Type G Plug)
Specifications Ultraviolet A Uva Initial Intensities
320 to 395 nm | 17+ W/cm²
Specifications Uvb Initial Intensities
280 to 320 nm | 7 W/cm²
Specifications Visible Initial Intensities
400 to 450 nm | 17+ W/cm²
Specifications Warranty
1 Year from Purchase
Specifications Weight
12.75 lb | 5.78 kg
