Dymax BlueWave AX-550 V2.0 LED Flood Curing System with 385nm Emitter
Dymax BlueWave AX-550 V2.0 LED Flood Curing System with 385nm Emitter
SKU:ULT-e72fca
Advanced LED flood curing system with 385nm emitter for precise and efficient curing processes.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Dymax BlueWave AX-550 V2.0 LED Flood Curing System with 385nm Emitter
$2,499.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave AX-550 V2.0 LED Flood Curing System with 385nm Emitter
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

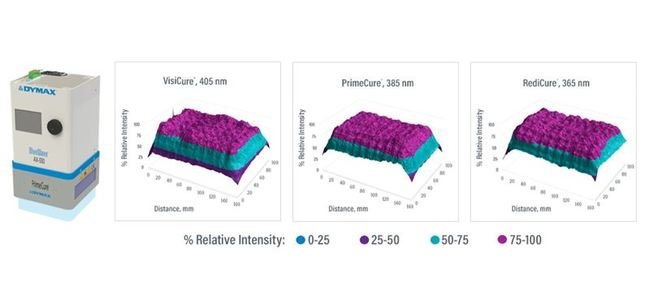

The Dymax BlueWave AX-550 V2.0 LED Flood Curing System is a cutting-edge solution that integrates a high-intensity 385nm emitter, a controller, and a power supply into a compact design. With an impressive curing area of 5 x 5 inches, it delivers both high intensity and uniformity for fast and efficient curing processes. This system is field-upgradable, allowing users to easily switch wavelengths or upgrade emitters for greater flexibility. CE compliant for global usage, it features programmable settings for curing time and intensity, making it ideal for industrial applications requiring precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
60752 - Emitters Only
Additional Information 0
All-in-One, High-Intensity Flood Curing System for Quiet, Efficient LED CuringCE Marked - Available GloballyThe AX-550 V2.0 curing system also features an easy-to-navigate user interface with push-button controls. Units can be password protected to limit access to only authorized users and protect process parameters. The units are warrantied against defects in material and workmanship for one year from the date of purchase.LED Light-Curing TechnologyDymax® LED flood curing systems generate curing energy using high-intensity LEDs in lieu of conventional arc lamp technology. The relatively narrow frequency band of energy emitted by LEDs results in cooler curing environments and substrate temperatures compared to traditional UV-style lamp systems, making them ideal for curing thermally sensitive materials. Dymax® LED curing systems offer many energy and cost-saving benefits, such as no warm-up period, lower energy consumption, no bulbs to change, and more consistent frequency and intensity output for better process control.
Dimensions Height
6.61 in | 16.8 cm
Dimensions Length
6.88 in | 17.5 cm
Dimensions Width
11.45 in | 29.1 cm
Features 0
Large 5" x 5" curing areaHigh-intensity and uniformity for fast curingAll-in-one design (controller, emitter & power supply)Quiet, low noise systemOptimization of application-specific frequency emissions by changing only the emitterEasy to navigate user interface with intuitive menu-driven programming and operationProvides system status and troubleshootingEmitters are interchangeable and easily upgraded in the field for flexibility to meet changing applicationsStandard SD card access port for field upgrading firmware to the latest specificationsPLC activation and controlControl and monitor power levels, exposure times/routines, system health and safety lockout via PLC interface
Note 0
The appropriate power cord will be added for European customers.
Operating Environment Maximum Altitude
2000 m
Operating Environment Operating Non Condensing Relative Humidity
0 to 30 %
Operating Environment Operating Temperature
10 to 40 ºC | 50 to 104 ºF
Product Spotlight 0
BlueWave® AX-550 V2.0 LED Flood LampGet high-intensity LED light curing in a compact size! The BlueWave® AX-550 flood-curing system combines an emitter, controller, and power supply into one compact unit, eliminating the bulk and cost of connection cables and other miscellaneous parts. Quiet and efficient, it is available with a 365, 385, or 405 nm emitter that provides a sizable 5" x 5" curing area. This curing lamp can also be easily incorporated into automated assembly lines.
Shipping And Storage Conditions Shipping
Ship via Standard Ground, Ocean or Air Freight
Shipping And Storage Conditions Storage Non Condensing Relative
10 to 80 %
Shipping And Storage Conditions Storage Temperature
-20 to +50 ºC
Specifications Certifications
Global (CE Marked)
Specifications Cooling
Air Cooled
Specifications Curing Area
5 x 5 in
Specifications Intensity Output
800 mW/cm²
Specifications Output Frequency
385 nm
Specifications Unit Warranty
1 year from purchase date
Specifications Weight
14.1 lb | 6.4 kg
Specifications Working Distance
25 mm
