The Dymax BlueWave MX-250 LED Flood-Curing System with a 405nm wavelength provides manufacturers with advanced curing capabilities. This high-intensity system boasts a 50 x 50 mm curing area, offering superior uniformity and consistent curing-energy emissions. With the flexibility to group emitters for larger curing patterns and user-friendly touchscreen controls, it enhances productivity and efficiency. The system's LED technology delivers quick, energy-efficient curing suitable for various materials, making it ideal for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accu Cal 50 Light Emitting Diode Led Radiometers 0
The typical intensity output degradation rate of the unit when run at 100 % power and a 100% duty cycle is approximately 8 % per 1,000 hours of run time. As with any type of energy source, environmental and operating conditions will have a direct effect on actual degradation rates. Intensity of the BlueWave® MX-250 can be measured with a standard ACCU-CAL⢠50-LED radiometer using flood-lamp intensity mode.
Additional Information 0

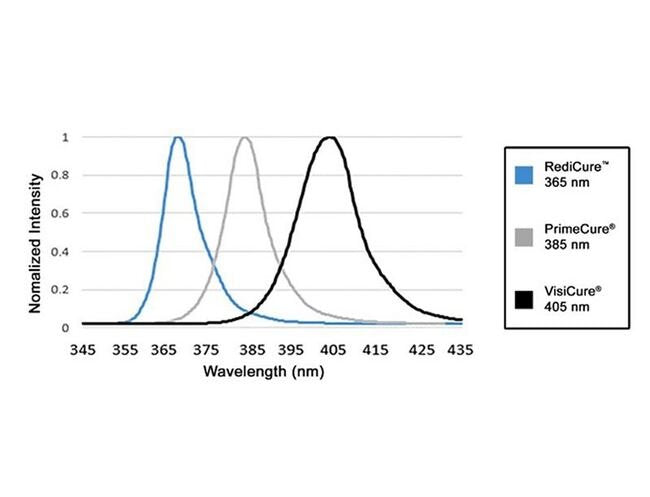

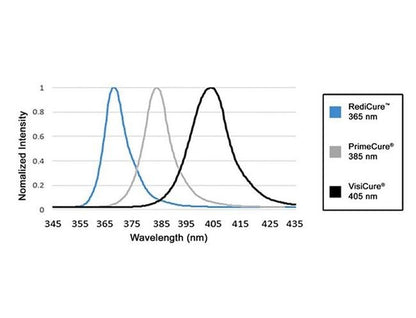

With this new design, the system can be truly tailored to users' curing needs - allowing them to choose from three different wavelength LED emitters (365, 385, or 405 nm) and providing additional flexibility with the size and pattern of the active curing area. Users also have endless set up flexibility, as this system can be set up as a bench-top unit, or for automated curing processes, the emitter can be easily mounted to robotic arms or further from the controller without fear of intensity losses.
Admin And Production Modes 0
Admin mode fully unlocks the device and allows for setting curing time and intensity cycles. Each individual curing cycle can be entered and saved as a program, and recalled when needed. The production mode is designed for simple operation by manufacturing personnel. Settings and access to admin mode can be password protected using the full QWERTY keyboard.
Features And Benefits 0

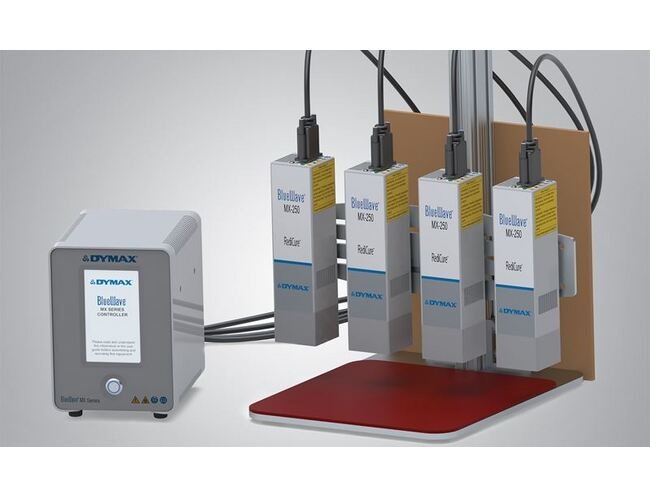

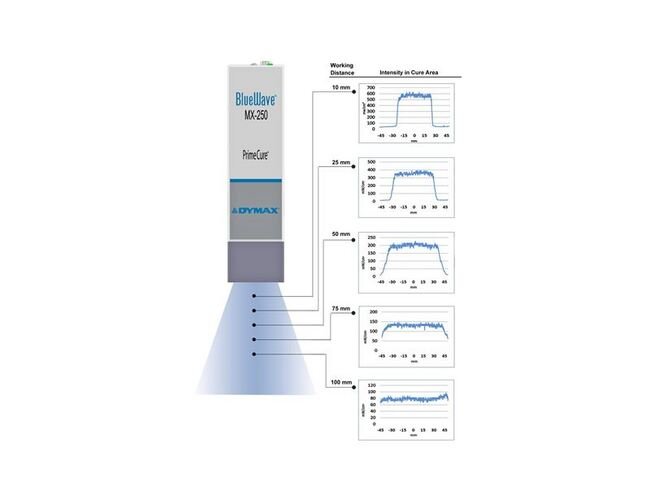

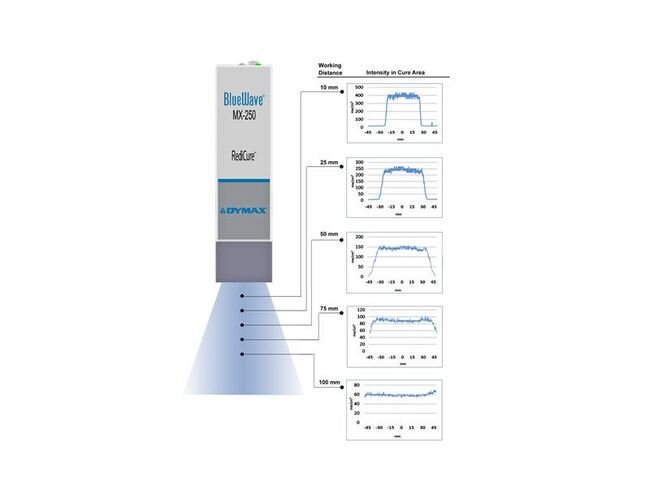

High intensityQuickly cures a variety of materialsVery high uniformity across entire cure area over a wide range of working distancesConsistent dosage over entire cure area minimizes variation in bond line cure characteristics.Allows for the ability to cure small batches of parts under cure area simultaneously.Ability to group emitters together for large curing patternsLED emitters available in 365, 385, or 405 nm wavelengthsCompatible with a variety of UV and visible light-curable materialsWavelength flexibility allows co-optimization of adhesive and curing system for optimal cure resultsAdmin and production modesProduction Mode for simple on/off operationCuring programs can be saved and easily recalledUnits can be password protected so only Production Mode can be accessed by workersTouchscreen with full keyboardImproved user interfaceCuring programs can be easily entered, stored, and recalled when neededMX Series controllers can be utilized to power both MX-250 and MX-150 emittersPrior MX-150 customers can upgrade the software in the controller to also run MX-250 emitters.Provides greater flexibility to switch between LED Spot and Flood curing configurations.Instant on-offNo warm-up periodMore energy efficientEfficient LED temperature management and system monitoringMaximized continuous operation without overheatingComfortable hand-held operating temperatureTemperature monitoring assures maximum LED lifeRemote I/O interfaceEasily incorporated into automated systems
Light Emitting Diode Led Light Curing Technology 0
Dymax® LED curing systems generate curing energy using high-intensity LEDs in lieu of conventional arc lamp technology. The relatively narrow frequency band of energy emitted by LEDs results in cooler curing environments and substrate temperatures compared to traditional UV-style lamp systems, making them ideal for curing thermally sensitive materials. Dymax® LED-curing systems offer many energy and cost-saving benefits, such as no warm-up period, lower energy consumption, no bulbs to change, and more consistent frequency and intensity output for better process control.
Note 0
Components are sold separately. Units are warrantied against defects in material and workmanship for one year from date of purchase.Curing area data taken using Fuji UV Light Distribution Mapping System. Output intensity measured using a Dymax® ACCU-CAL⢠50-LED Radiometer in flood-lamp intensity mode.
Ordering Information 0
A complete BlueWave® MX-250 system features a controller/power supply and LED emitter. Emitters are available in 365, 385, and 405 nm wavelengths.
Replacement Parts 0
System ComponentsBlueWave® MX-Series 1-CH Controller/Power SupplyItem # - 42378Description - North American Power CordItem # - 42379Description - Asian Power Cord (Type G)Item # - 42380Description - No Power CordNote - Controller packages include a 2-1-meter long interconnect cable used to connect the controller to the emitter. If a longer length is needed, a second interconnect cable can be ordered separately to extend that distance without impacting performance.LED EmittersItem # - 42806Description - RediCure® (365 nm), BlueWave® MX-250 EmitterItem # - 42807Description - PrimeCure® (385 nm), BlueWave® MX-250 EmitterItem # - 42808Description - VisiCure® (405 nm), BlueWave® MX-250 EmitterAccessoriesStands & ShieldingItem # - 42390Description - Emitter Mounting StandItem # - 41395Description - Three-Sided Acrylic ShieldInterconnect CableItem # - 42287Description - Interconnect Cable AssemblyEmitter Mounting BracketItem # - 42909Description - Single Emitter Mounting KitRadiometersItem # - 40505Description - ACCU-CAL⢠50-LED Radiometer Kit for LED Spots, Floods, and BlueWave® QX4®
Specifications Alternating Current Ac Power Supply Input Voltage
100 to 240 V
Specifications Controller Depth
6.26 in | 15.9 cm
Specifications Controller Height
5.77 in | 14.6 cm
Specifications Controller Weight
2.6 lb | 1.18 kg
Specifications Controller Width
3.74 in | 9.5 cm
Specifications Cooling
Air Cooled
Specifications Curing Area
50 x 50 mm
Specifications Emitter Depth
1.97 in | 5 cm
Specifications Emitter Height
7.9 in | 20.06 cm
Specifications Emitter Weight
1.64 lb | 0.74 kg
Specifications Emitter Width
1.97 in | 5 cm

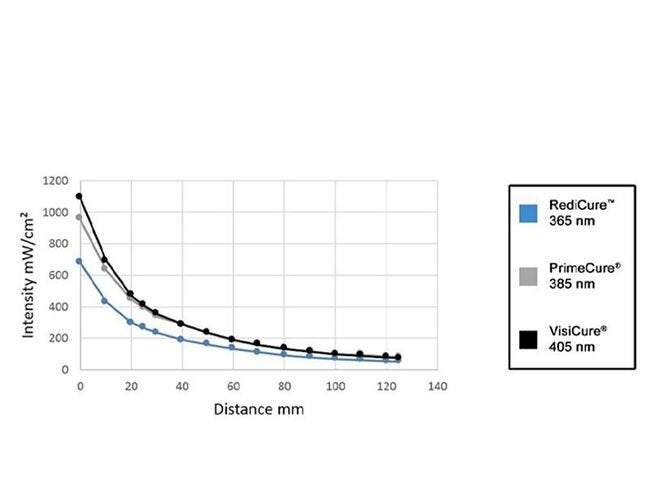

Specifications Intensity Output At 25 Millimeter Mm Array Surfac
375 mW/cm²
Specifications Intensity Output At Array Surface
1090 mW/cm²
Specifications Light Emitting Diode Led Activation
Foot Pedal | Liquid Crystal Display (LCD) Touchscreen | Programmable Logic Controller (PLC)
Specifications Light Emitting Diode Led Timer
0 to 999 S
Specifications Operating Non Condensing Relative Humidity
0 to 80 %
Specifications Operating Temperature
10 to 40 ºC
Specifications Power Supply Input Current
~2.5 A
Specifications Power Supply Input Frequency
50 to 60 Hz
Specifications Timer Resolution
0.1 S
Specifications Unit Warranty
1 year from purchase date
Specifications Wavelength
405 nm
