Dymax BlueWave MX-275 UV LED Flood Curing System - PrimeCure Emitter
Dymax BlueWave MX-275 UV LED Flood Curing System - PrimeCure Emitter
SKU:ULT-068b22
High-intensity UV LED flood curing system with precise line pattern curing, scalable area, and efficient operation.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Dymax BlueWave MX-275 UV LED Flood Curing System - PrimeCure Emitter
$2,999.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave MX-275 UV LED Flood Curing System - PrimeCure Emitter
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax BlueWave MX-275 UV LED Flood Curing System with PrimeCure Emitter is a high-intensity solution delivering light energy in a line pattern, offering precise curing. With a 5 mm x 50 mm cure area expandable to 5 mm x 200 mm using multiple emitters, it ensures uniform dosage over a wide range of distances. This system enhances productivity with instant on-off operation, efficient temperature management, and touch screen controllers for user convenience. Ideal for various applications including conveyor setups, it offers flexibility and energy efficiency while conforming to global certifications for reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
BlueWave® MX-275 LED EmittersItem # - 43094Description - Line Pattern LED Emitters - BlueWave® MX-275 Emitter, RediCure® (365 nm)Certifications - Global (CE Marked)Item # - 43098Description - Line Pattern LED Emitters - BlueWave® MX-275 Emitter, PrimeCure® (385 nm)Certifications - Global (CE Marked)Item # - 43102Description - Line Pattern LED Emitters - BlueWave® MX-275 Emitter, VisiCure® (405 nm)Certifications - Global (CE Marked)BlueWave® MX-Series 2-Channel ControllerItem # - 43184Description - BlueWave® MX-Series 2-Channel Controller - No Power Cord (The appropriate power cord will be added for European customersNote: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - GlobalItem # - 43185Description - BlueWave® MX-Series 2-Channel Controller - North American Power Cord (115V plug)Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - North AmericaItem # - 43186Description - BlueWave® MX-Series 2-Channel Controller - Asian Power Cord (Type G)Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - AsiaBlueWave® MX-Series 4-Channel ControllerItem # - 43181Description - BlueWave® MX-Series 4-Channel Controller - No Power Cord (The appropriate power cord will be added for European customers)Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - GlobalItem # - 43182Description - BlueWave® MX-Series 4-Channel Controller - North American Power Cord (115V plug)Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - North AmericaItem # - 43183Description - BlueWave® MX-Series 4-Channel Controller - Asian Power Cord (Type G)Note: 2-channel and 4-channel controllers sold without interconnect cables or foot pedals.Certifications - AsiaBlueWave® MX-MIMItem # - 43299Description - BlueWave® MX-MIM includes only the machine module interface.Certifications - Global
Additional Information 0

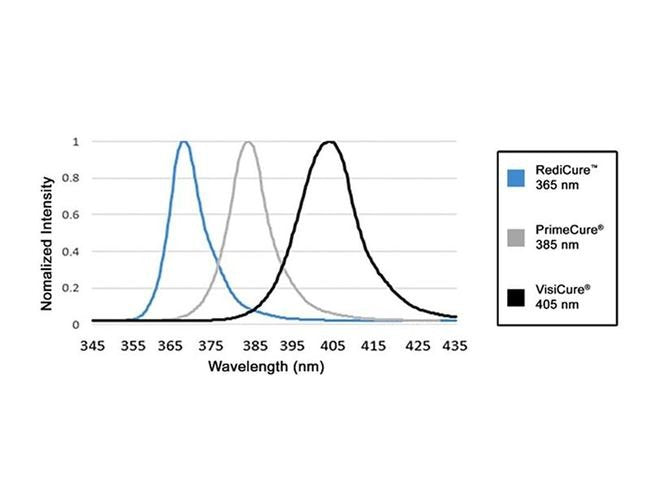

BlueWave® MX-275 system emitters are available in three different wavelengths: 365, 385, and 405 nm. As with other emitters from the MX product family, the BlueWave® MX-275 can be set up as a bench-top unit, on an array stand to create extended line patterns, or installed on automated curing processing equipment for maximum flexibility. Emitters can be paired with MX-series single or multichannel controllers.Systems and AccessoriesA complete BlueWave® MX-275 system features a controller/power supply and LED Emitter. MX-275 Emitters are available in 365, 385, and 405 nm wavelengths. Accessories noted below can be added for specific applications. Components are sold separately. Units are warrantied against defects in material and workmanship for one year from date of purchase.
Dimensions Controller Depth
6.26 in | 15.9 cm
Dimensions Controller Height
5.77 in | 14.6 cm
Dimensions Controller Width
3.74 in | 9.5 cm
Dimensions Emitter Depth
1.97 in | 5 cm
Dimensions Emitter Height
7.9 in | 20.06 cm
Dimensions Emitter Width
1.97 in | 5 cm
Features 0
High-intensity to quickly cure a variety of materialsThe 5 mm x 50 mm cure area can be scaled up by placing emitters side-by-side to provide a large, continuous band of UV LED energyVery high uniformity across entire cure area over a wide range of working distancesConsistent dosage over entire cure area minimizes variation in bond line cure characteristicsWell suited for conveyor applications where products move under the light sourceLED emitters available in 365, 385, or 405 nm wavelengthsControllers have touch screen with full keyboard and separate admin and production modesInstant on-off eliminates warm-up period for a more energy efficient systemEfficient LED temperature management and system monitoring
Intensity Output Intensity Output At 10 Millimeter Mm Working Di
1,870 mW/cm²
Intensity Output Intensity Output At 25 Millimeter Mm Working Di
1,220 mW/cm²
Intensity Output Note For Intensity Output

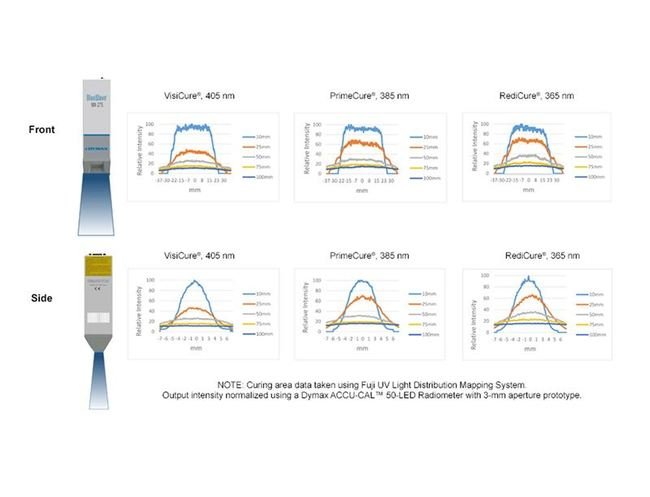

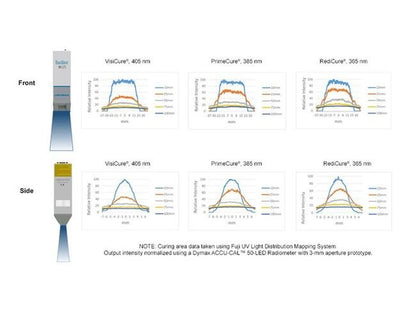

Measured using a Dymax® ACCU-CAL⢠50-LED Radiometer with 3-mm aperture set to corresponding light measurement mode. This is preliminary intensity data for reference, tests using flood mode without an aperture will yield different results.
Power Supply Input Alternating Current Ac Power Supply Input Vol
100 to 240 V
Power Supply Input Power Supply Input Current
2.5 A
Power Supply Input Power Supply Input Frequency
50 to 60 Hz
Product Spotlight 0

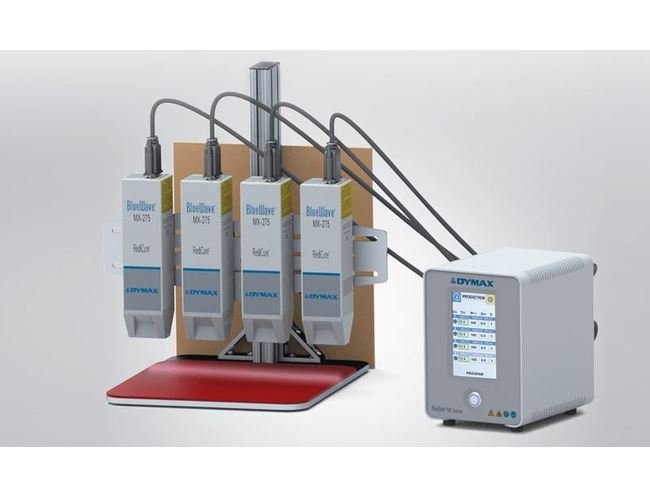

BlueWave® MX-275 LED Flood Curing SystemThe BlueWave® MX-275 curing system is a high-intensity UV LED flood curing system. Light energy is delivered in a line pattern instead of the traditional rectangular flood curing patterns. A single BlueWave® MX-275 emitter provides a 5 mm x 50 mm curing area, but when paired with a multichannel controller, up to four emitters can be used to produce a curing area as large as 5 mm x 200 mm.
Specifications Certifications
Global (CE Marked)
Specifications Cooling
Air Cooled
Specifications Curing Area
5 x 50 mm
Specifications Light Emitting Diode Led Activation
Foot Pedal | Liquid Crystal Display (LCD) Touchscreen | Programmable Logic Controller (PLC)
Specifications Light Emitting Diode Led Timer
0 to 999 s
Specifications Operating Environment
10 to 40 ºC
Specifications Output Frequency
385 nm
Specifications Timer Resolution
0.1 s
Specifications Unit Warranty
1 year from purchase date
Weight Controller Weight
2.6 lb | 1.18 kg
Weight Emitter Weight
1.64 lb | 0.74 kg
