The Dymax BlueWave MX-MIM Machine Interface Module is an essential component for machine builders and automated equipment utilizing PROFINET or EtherNet/IP protocols. Designed to streamline operations, this module supports up to four MX-Series emitters, offering advanced monitoring and diagnostics capabilities. With independent safety interlocks and simplified wiring, it enhances efficiency and flexibility in UV/LED curing systems. The module's compact size, global certifications, and compatibility with various Dymax emitters make it a versatile choice for industrial applications.
Product Specifications
Additional Information 0

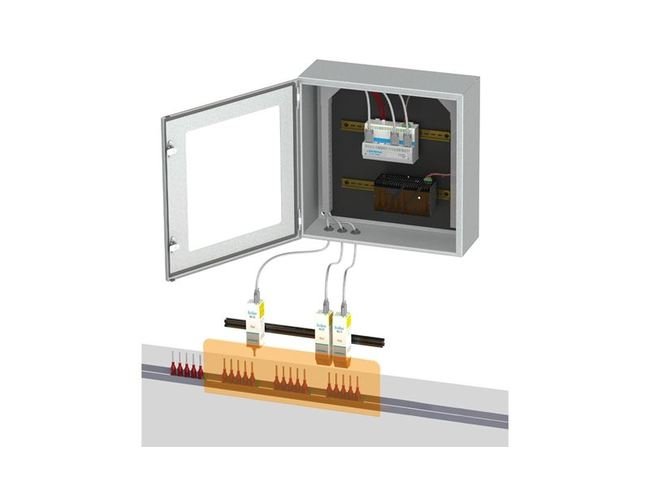

Incorporating the BlueWave® MX-MIM into automated light-curing systems allows machine builders to independently power up to four Dymax® MX-Series emitters at the same time in flood or light-bar patterns. Emitters can be synchronized together to act as one for higher throughput or to create a larger cure area. Compatible with:BlueWave® MX-150 spot lampBlueWave® MX-250 flood lampBlueWave® MX-275 light barCompatible with BlueWave® MX-150, MX-250, and MX-275 emitters with firmware version 1.11 or higher. Dymax® can easily upgrade emitter firmware to the latest versions by returning your emitter to one of our service facilities.
Features 0

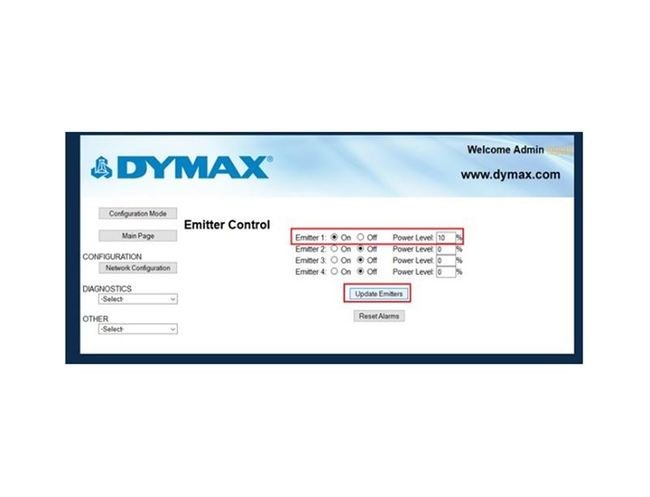

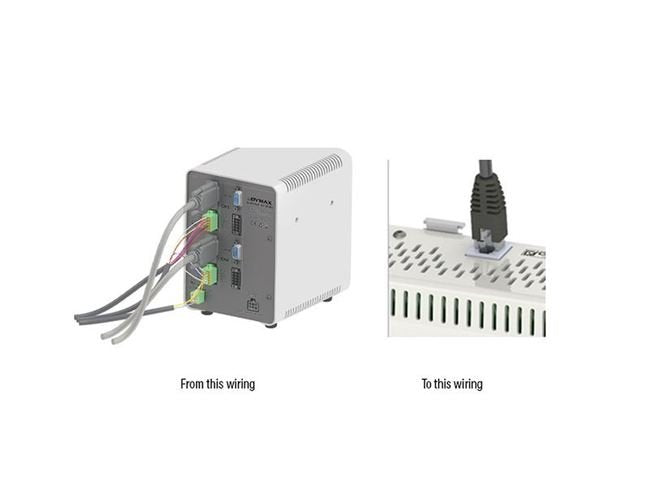

Advanced monitoring and diagnostics for systems, controllers, and emittersIntegrated web browser for set-up and monitoringSimplified wiring and I/OIndependent safety interlocks that are not reliant on firmwareMountable on a standard 35-mm DIN railInterconnect cables for multi-station or remote placement (2-, 5-, 10-, and 20-meter lengths)
Operating Environment Ambient Temperature
+10 to +40 ºC
Operating Environment Note For Operating Environment
This device is designed to operate in a typical production environment where dust particulates and harmful vapors are kept to a minimum. Cabinet air filtration is suggested to prevent dust accumulation.At Sea Level
Operating Environment Operating Environment
Indoor use only. Not qualified for outdoor use.
Operating Environment Operating Non Condensing Relative Humidity
0 to 80 %

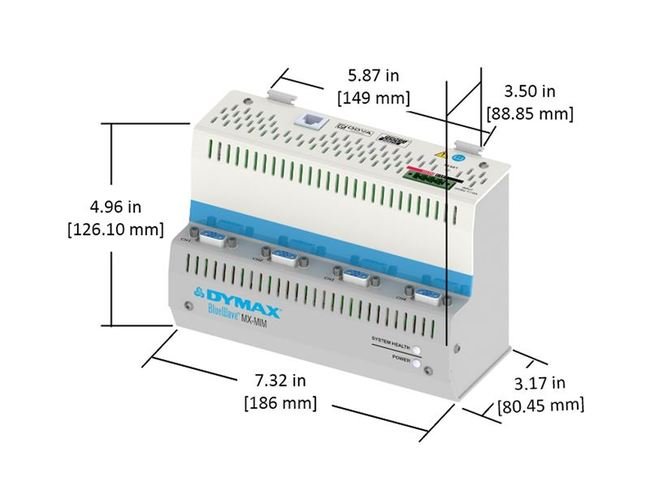

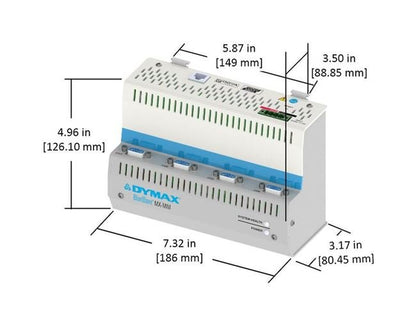

Physical Dimensions Depth
3.50 in | 8.89 cm
Physical Dimensions Height
4.96 in | 12.59 cm
Physical Dimensions Width
7.32 in | 18.59 cm
Power Supply Input Direct Current Dc Power Supply Input Voltage
24 V
Power Supply Input Direct Current Dc Power Supply Input Voltage
1 %
Power Supply Input Minimum Current
10 A
Power Supply Input Recommended Power Supply Input
300 W
Specifications Certifications
Global (CE Marked)
Specifications Cooling
Internal fan, no filter
Specifications Emitter Channels
Supports up to four MX-series emitters
Specifications Mounting

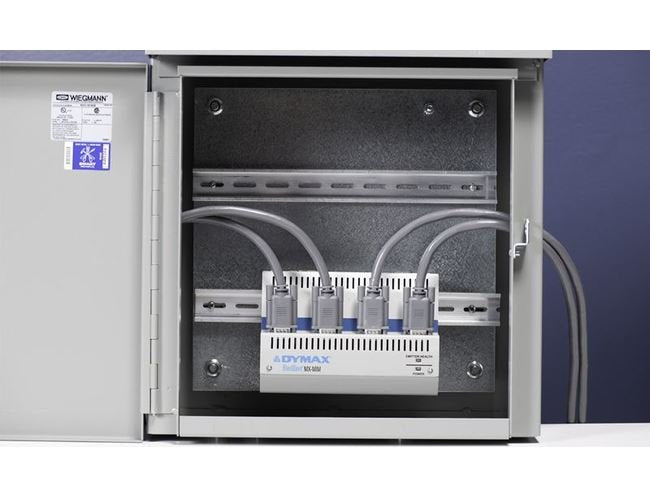

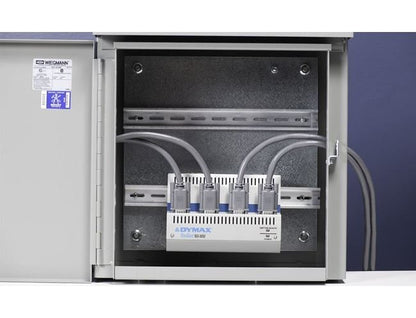

DIN Rail; 35-mm top-hat style
Specifications Network Interface
One 10/100 base-T Port. Supports EtherNet/IP, and PROFINET.
Specifications Weight
2.035 lb | 0.923 kg
Storage Conditions Note For Storage Conditions
At Sea Level
Storage Conditions Storage Non Condensing Relative Humidity
0 to 75 %
Storage Conditions Storage Temperature
-20 to +50 ºC
