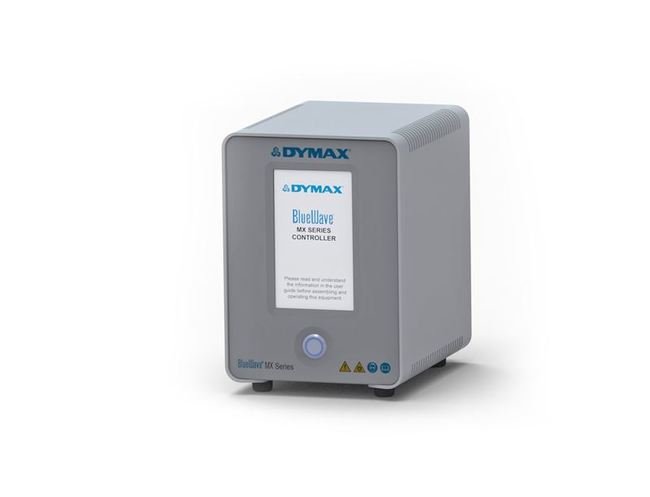

Dymax BlueWave MX-Series 2-Channel Controller
Dymax BlueWave MX-Series 2-Channel Controller
SKU:ULT-4579fa
Efficiently control up to four emitters independently with the Dymax BlueWave MX-Series 2-Channel Controller. Ideal for UV/LED curing systems.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dymax BlueWave MX-Series 2-Channel Controller
$599.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave MX-Series 2-Channel Controller
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax BlueWave MX-Series 2-Channel Controller is a versatile solution for UV/LED curing systems. With the capability to run up to four emitter workstations independently, this controller offers flexibility and efficiency in production processes. It features easy operation via foot pedal or PLC interface, interchangeable interconnect cables for flexible setup, and compatibility with various Dymax MX-series emitters. Enhanced with LED temperature management and remote interface options, it maximizes performance and LED lifespan while ensuring energy efficiency. Ideal for industrial applications requiring precise curing control.
Product Specifications
Additional Information 0
Controllers are designed to provide manufacturers with greater curing flexibility. Users can start with a single emitter and add others as their applications grow. Emitter models can be utilized in different combinations with the same controller. For those requiring a spot-cure system, BlueWave® MX-150 emitters can be outfitted with single or multi-pole lightguides to provide up to 16 individual cure spots from a single controller.Compatible with BlueWave® MX-150 and BlueWave® MX-250 emitters with firmware version 1.08 or higher. Dymax® can easily upgrade emitter firmware to the latest versions by returning your emitter to one of our service facilities.
Dimensions Depth
7.19 in | 18.3 cm
Dimensions Height
7.35 in | 18.7 cm
Dimensions Width
5.14 in | 13.1 cm
Features 0
One controller runs up to four emitters independently by foot switch or as an integrated light bar (50 mm x 200 mm)Reduced controllers decreased required footprint and costCompatible with BlueWave MX-150 and MX-250 emitters (365, 285, 405 nm versions)Users can easily switch between LED spot and flood curing configurationsSimple on/off operation using production modeApplication specific curing profiles/programs can be easily entered, stored, and recalled when neededUnits can be password protected so only production mode can be accessed by workersImproved user interface: touch screen with full keyboard and stylus for easy menu navigation (attaches to unit)Instant on/off requires no warm up period, improving energy efficiencyLED temperature management and system monitoring maximizes operation without overheating, monitors critical system functions, and ensures maximum LED lifeRemote I/O interface enables easy incorporation into automated systems and improved PLC interface flexibility
Note 0
Interconnect cables to connect controller to emitters and foot pedals sold separately.
Operating Environment Operating Non Condensing Relative Humidity
0 to 30 %
Operating Environment Operating Temperature
10 to 40 ºC | 50 to 104 ºF
Power Supply Input Power Supply Input Current
2.5 A
Power Supply Input Power Supply Input Frequency
50 to 60 Hz
Power Supply Input Power Supply Input Voltage
100 to 240 V
Specifications Certifications
Global (CE Marked) | North America
Specifications Cooling
Air Cooled
Specifications Light Emitting Diode Led Activation
Foot Pedal | Liquid Crystal Display (LCD) Touchscreen | Programmable Logic Controller (PLC)
Specifications Light Emitting Diode Led Timer
0.1 to 999 s
Specifications Maximum Timer Accuracy
0.1 %
Specifications Plug Voltage
115 V
Specifications Unit Warranty
1 year from purchase date
Specifications Weight
2.6 lb | 1.18 kg
