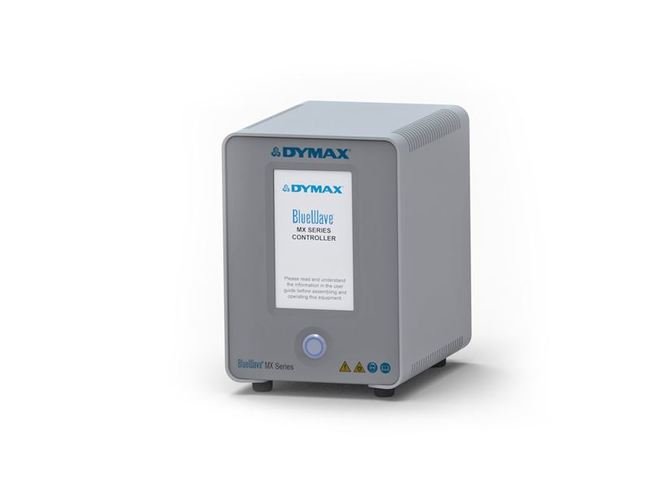

Dymax BlueWave MX-Series 4-Channel UV/LED Controller
Dymax BlueWave MX-Series 4-Channel UV/LED Controller
SKU:ULT-f89b10
Enhance UV/LED curing efficiency with the Dymax BlueWave MX-Series 4-Channel Controller. Control up to four emitters independently or in combination for precise curing configurations. Compatible with various Dymax MX-series emitters.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
Dymax BlueWave MX-Series 4-Channel UV/LED Controller
$1,199.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave MX-Series 4-Channel UV/LED Controller
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax BlueWave MX-Series 4-Channel UV/LED Controller offers unparalleled flexibility for manufacturers, allowing up to four emitters to be controlled independently or in combination. With compatibility for various Dymax MX-series emitters, including spot lamps and flood lamps, this controller enables precise curing configurations. Featuring advanced LED timer settings, cooling mechanisms, and user-friendly interface options, it enhances operational efficiency and accuracy. With a compact design and warranty support, this controller is a reliable solution for UV/LED curing processes in diverse production environments.
Product Specifications
Additional Information 0
Controllers are designed to provide manufacturers with greater curing flexibility. Users can start with a single emitter and add others as their applications grow. Emitter models can be utilized in different combinations with the same controller. For those requiring a spot-cure system, BlueWave® MX-150 emitters can be outfitted with single or multi-pole lightguides to provide up to 16 individual cure spots from a single controller.Compatible with BlueWave® MX-150 and BlueWave® MX-250 emitters with firmware version 1.08 or higher. Dymax® can easily upgrade emitter firmware to the latest versions by returning your emitter to one of our service facilities.
Dimensions Depth
7.19 in | 18.3 cm
Dimensions Height
7.35 in | 18.7 cm
Dimensions Width
5.14 in | 13.1 cm
Features 0
One controller runs up to four emitters independently by foot switch or as an integrated light bar (50 mm x 200 mm)Reduced controllers decreased required footprint and costCompatible with BlueWave MX-150 and MX-250 emitters (365, 285, 405 nm versions)Users can easily switch between LED spot and flood curing configurationsSimple on/off operation using production modeApplication specific curing profiles/programs can be easily entered, stored, and recalled when neededUnits can be password protected so only production mode can be accessed by workersImproved user interface: touch screen with full keyboard and stylus for easy menu navigation (attaches to unit)Instant on/off requires no warm up period, improving energy efficiencyLED temperature management and system monitoring maximizes operation without overheating, monitors critical system functions, and ensures maximum LED lifeRemote I/O interface enables easy incorporation into automated systems and improved PLC interface flexibility
Operating Environment Operating Non Condensing Relative Humidity
0 to 30 %
Operating Environment Operating Temperature
10 to 40 ºC | 50 to 104 ºF
Power Supply Input Power Supply Input Current
2.5 A
Power Supply Input Power Supply Input Frequency
50 to 60 Hz
Power Supply Input Power Supply Input Voltage
100 to 240 V
Specifications Certifications
North America
Specifications Cooling
Air Cooled
Specifications Light Emitting Diode Led Activation
Foot Pedal | Liquid Crystal Display (LCD) Touchscreen | Programmable Logic Controller (PLC)
Specifications Light Emitting Diode Led Timer
0.1 to 999 s
Specifications Maximum Timer Accuracy
0.1 %
Specifications Unit Warranty
1 year from purchase date
Specifications Weight
2.6 lb | 1.18 kg
