Dymax BlueWave QX4 VisiCure 405nm LED Spot-Curing System
Dymax BlueWave QX4 VisiCure 405nm LED Spot-Curing System
SKU:ULT-a54ddb
High-intensity and versatile spot-curing system with 405nm LED for precise and efficient UV curing applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Dymax BlueWave QX4 VisiCure 405nm LED Spot-Curing System
$2,599.99
Quantity: 1
Claim Your Seller Account
Dymax BlueWave QX4 VisiCure 405nm LED Spot-Curing System
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

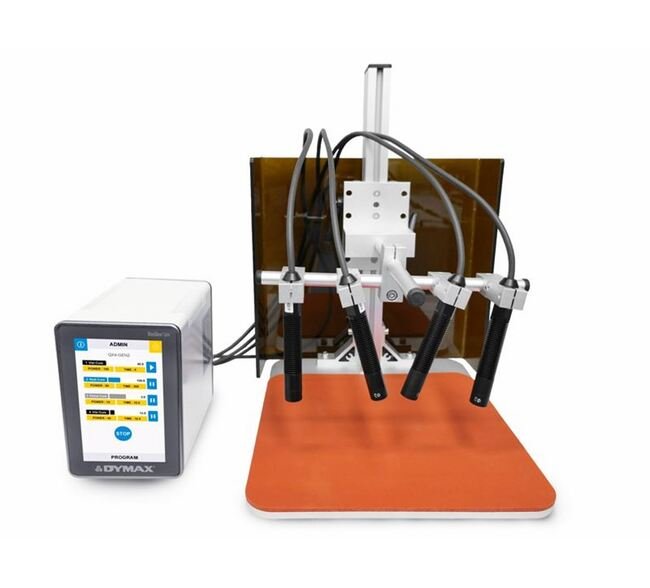

The Dymax BlueWave QX4 VisiCure 405nm LED Spot-Curing System delivers high-intensity spot-curing with a compact design for efficient and versatile UV/LED curing applications. This system features up to four LED heads in 365, 385, or 405 nm wavelengths, allowing independent programming for precise curing. With interchangeable focusing lenses, instant on-off functionality, and energy-efficient LED technology, it offers maximum flexibility and reliability for curing various materials. The PLC touch screen interface enables seamless integration into automated processes, making it ideal for industrial and research environments.
Product Specifications
Additional Information 0

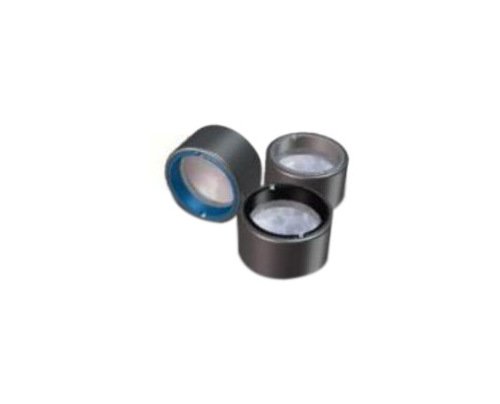

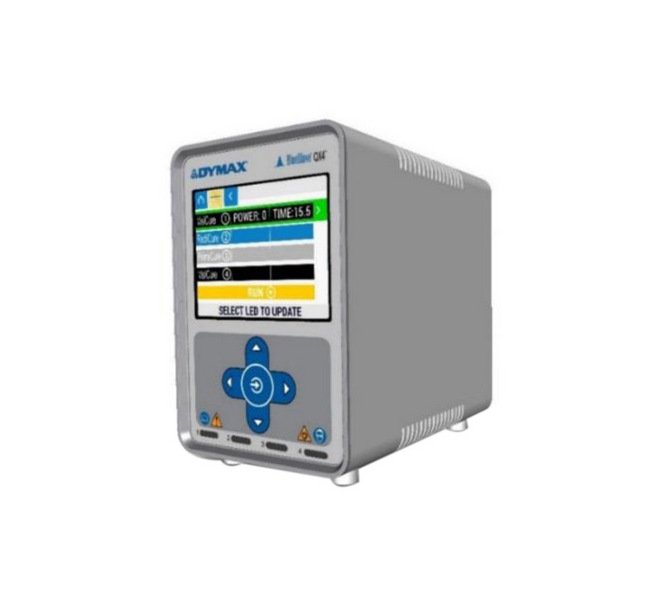

Each spot curing system can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the systemâs variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments, giving users maximum curing flexibility.In addition to the curing flexibility, the BlueWave® QX4 V2.0 also features an easy-to-use control touch screen interface with the capacity to store up to 20 programs. The unit can be activated by a foot pedal or by PLC interface, allowing it to be easily incorporated into automated systems.The complete BlueWave QX4 V2.0 LED curing system is comprised of a controller/power supply with a footswitch, up to four LED heads/wands. A lens will need to be ordered for each head/wand in order to function properly. The length of the head/wand with the direct wired cable is 1.5 M (end to end). Components are sold separately.
Dimensions Controller Depth
5.5 in | 14.1 cm | 93.5 mm
Dimensions Controller Height
5.6 in | 13.7 cm | 137.4 mm
Dimensions Controller Width
3.5 in | 9.0 cm | 147.5 mm
Features And Benefits 0
One controller controls up to four LED heads for maximum application flexibilityLED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materialsImproved, flexible LED heads can be programmed independently for accurate curingIndividual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibilityInterchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirementsInstant on-off â no warm-up period and more energy efficientEfficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperaturePLC touch screen interface that is easily incorporated into automated systems
System Specifications Controller Weight
2.2 lb | 1 kg
System Specifications Cooling
Natural Convection
System Specifications Head Weight
4.6 oz | 130 g
System Specifications Intensity Output
22.0 W/cm²
System Specifications Light Emitting Diode Led Activation
Footswitch | Front Panel | Programmable Logic Controller (PLC)
System Specifications Light Emitting Diode Led Head
VisiCure®
System Specifications Light Emitting Diode Led Timer
0.1 to 999 s
System Specifications Operating Environment Non Condensing
10 to 40 ºC | 50 to 104 ºF
System Specifications Output Frequency
405 nm
System Specifications Power Supply Input Current
~1 A
System Specifications Power Supply Input Frequency
50 Hz | 60 Hz
System Specifications Power Supply Input Voltage
100 to 240 V
System Specifications Warranty
1 Year from Purchase Date
