Dymax Disposable Fluid Path Pinch Valve - 550 mL
Dymax Disposable Fluid Path Pinch Valve - 550 mL
SKU:ADH-cf3fcf
Get precise control and contamination-free dispensing with the Dymax® Disposable Fluid Path Pinch Valve tailored for high flow rates.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Dymax Disposable Fluid Path Pinch Valve - 550 mL
$199.99
Quantity: 1
Claim Your Seller Account
Dymax Disposable Fluid Path Pinch Valve - 550 mL
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

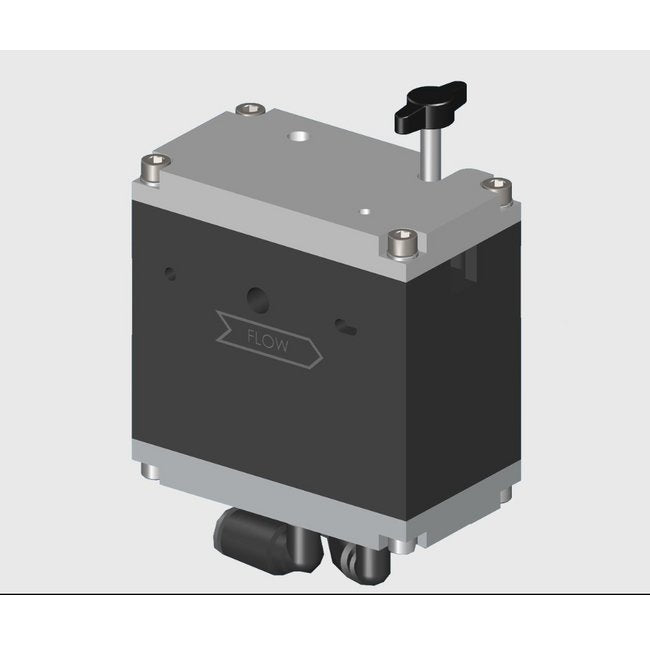

The Dymax® Model 830 Disposable Fluid Path Pinch Valve offers precise control and high material flow rates for various viscosities. Featuring a disposable fluid path that prevents contamination, this valve facilitates efficient material changeover with minimal cleanup. With an adjustable suck-back control and over-pinch adjustment, it ensures mess-free dispensing and extends valve life. Lightweight and compatible with pressurized containers, this valve is ideal for automated or bench-top systems, enhancing dispensing accuracy and productivity.
Product Specifications
Additional Information 0
The Model 830 valve can be integrated into an automated dispensing system and controlled with a three-way solenoid valve or paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.
Dimensions Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Height
3.25 in | 8.25 cm
Dimensions Dimension With Fittings And Hardware Width
4.75 in | 12.1 cm
Dimensions Height
3.125 in | 7.94 cm
Dimensions Width
3.125 in | 7.94 cm
Features 0
Disposable fluid path that carries materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processEasy product changeover with minimal clean upFluid never comes in contact with the valve, reducing valve maintenance and extending the life of the valveOver-pinch adjustment prevents tubing damage and extends lifeAdjustable suck-back control eliminates drooling and filming over nozzleDrip-free dispense when dispensing thin or stringy materialsDispenses from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight, easy to handle and mount in automated or bench-top systems
Note 0
Cartridge drop-in - 20 oz [550 mL]
Specifications Activation
Valve controller or 3-way Solenoid Valve
Specifications Construction Materials
Anodized Aluminum
Specifications Maximum Inlet Fluid Pressure
0 to 100 psi | 0 to 7 bar
Specifications Maximum Operating Temperature
104 ºF | 40 ºC
Specifications Maximum Tubing Outer Diameter Od
0.375 in | 9.53 mm
Specifications Operating Air Pressure
60 to 100 psi | 4 to 7 bar
Specifications Valve Type
Pinch Valve with Disposable Fluid Path, Normally Closed
Specifications Volume
20 oz | 550 mL
Specifications Warranty
1 year
Specifications Weight
0.68 kg | 1.5 lb
