Dymax ECE 5000 UV Light-Curing Flood Lamp System
Dymax ECE 5000 UV Light-Curing Flood Lamp System
SKU:ULT-5301bb
Experience efficient UV light curing with the Dymax ECE 5000 Flood Lamp System - Quick, reliable, and industry-compliant.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Dymax ECE 5000 UV Light-Curing Flood Lamp System
$1,299.99
Quantity: 1
Claim Your Seller Account
Dymax ECE 5000 UV Light-Curing Flood Lamp System
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

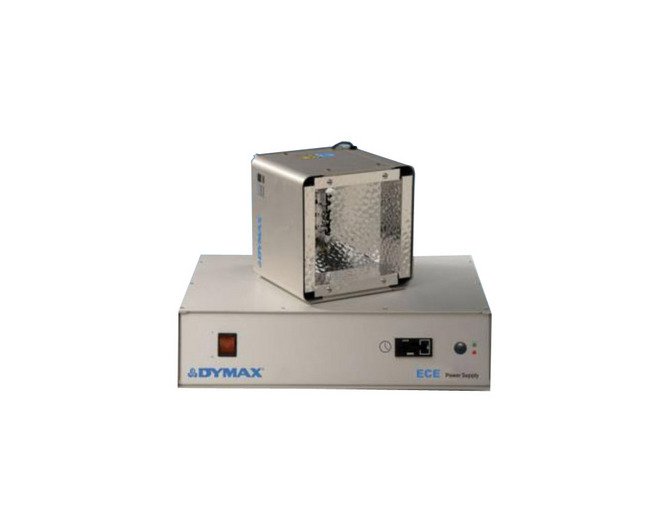

The Dymax ECE 5000 Modular 5-inch Curing Area UV Light-Curing Flood Lamp System offers moderate- to high-intensity curing over a 5" x 5" area, ideal for quick and efficient curing using Dymax light-curable materials. With a typical short curing time of 5-30 seconds, this system is simple to operate, with options for shutters and consistent intensity. It can be used as a bench-top system or integrated into automated assembly setups, meeting industry standards with a 2000-hour bulb warranty.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories 0
Item # - 35572Description - Dymax® UV light-curing flood lamps require warm-up and cool-down time. For that reason, it is not possible to control exposure by turning lamp power on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "Manual shutter shown open" shutters for use with the ECE 2000 and 5000 flood-lamp curing systems.Low-cost louvered shutter. Simple hand turn knob opens and closes shutter.Dimensions (W x D x H) - 11.3" x 11.1" x 2.5" (28.7 cm x 28.2 cm x 6.4 cm)Item # - 40885Description - ECE ZIP⢠ShutterDymax® UV light-curing flood lamps require warm-up and cool-down time. For that reason, it is not possible to control exposure by turning lamp power on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the ECE 2000 and 5000 flood-lamp curing systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (W x D x H) - 12.5" x 12.9" x 3.8" (31.8 cm x 32.8 cm x 9.7 cm)Item # - 41097Description - Stainless Steel Curtain Replacement KitDymax® UV light-curing flood lamps require warm-up and cool-down time. For that reason, it is not possible to control exposure by turning lamp power on/off. Shutters, however, can be used to control exposure time. Dymax® offers the "ZIP⢠shutter shown open" shutters for use with the ECE 2000 and 5000 flood-lamp curing systems.Electronic, curtain-style shutter. Actuated via finger switch, foot pedal, or customer supplied switch (or PLC).Dimensions (W x D x H) - 12.5" x 12.9" x 3.8" (31.8 cm x 32.8 cm x 9.7 cm)Item # - 38290ECE 2000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 2000: 8.5" x 10.8" (21.6 x 27.4 cm)Item # - 38289ECE 5000 Mounting Stand KitDescription - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.A simple and cost effective 3-sided shield that is removed manually. Not compatible with Dymax® shutters.Dimensions (L x W) - ECE 5000: 7.0" x 6.1" (17.8 x 15.5 cm)Item # - 40785Description - Dymax® offers two shielding options for its UV-curing flood systems, a mounting stand kit and a light shield.360º shielding. Swing up door and slide out shelf. Compatible with Dymax® shutters.Inside Dimensions (W x D x H) - 13.2" x 12.5" x 8.3" (35.53 cm x 31.75 cm x 21.08 cm)Outside Dimensions (W x D x H) - 15.1" x 18.2" x 10.6" (38.42 cm x 46.25 cm x 26.83 cm)Item # - 41130Item Name - North American Version (120 V Plug)Description - With Mounting StandItem # - 41140Item Name - Asian Version (Type G Plug)Description - With ECE Light ShieldItem # - 40970Item Name - No Power Cord (The appropriate power cord is included for orders in Europe.)Description - With ECE Light Shield & Manual ShutterItem # - 41150Item Name - North American Version (120 V Plug)Description - With ECE Light Shield & ECE ZIP⢠ShutterItem # - 41160Item Name - Asian Version (Type G Plug)Description - With Mounting StandItem # - 40900Item Name - No Power Cord (The appropriate power cord is included for orders in Europe.)Description - With ECE Light ShieldItem # - 40940Item Name - North American Version (120 V Plug)Description - With ECE Light Shield & Manual ShutterItem # - 41100Item Name - Asian Version (Type G Plug)Description - With ECE Light Shield & ECE ZIP⢠ShutterItem # - 40850Item Name - No Power Cord (The appropriate power cord is included for orders in Europe.)Description - With Mounting StandItem # - 41030Item Name - North American Version (120 V Plug)Description - With ECE Light ShieldItem # - 41050Item Name - Asian Version (Type G Plug)Description - With ECE Light Shield & Manual ShutterItem # - 40840Item Name - No Power Cord (The appropriate power cord is included for orders in Europe.)Description - With ECE Light Shield & ECE ZIP⢠Shutter
Additional Information 0

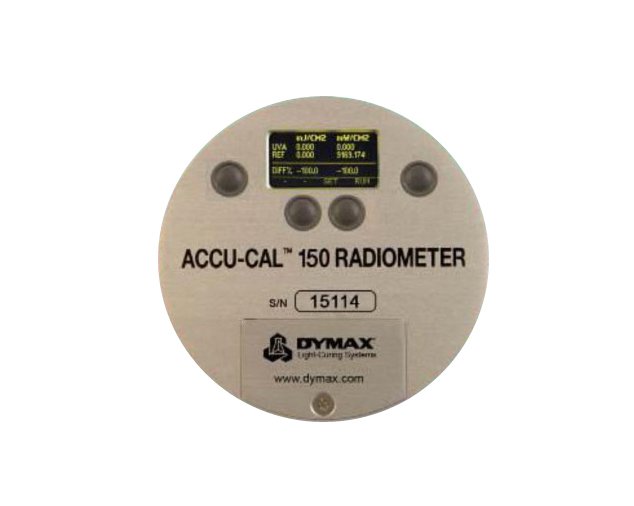

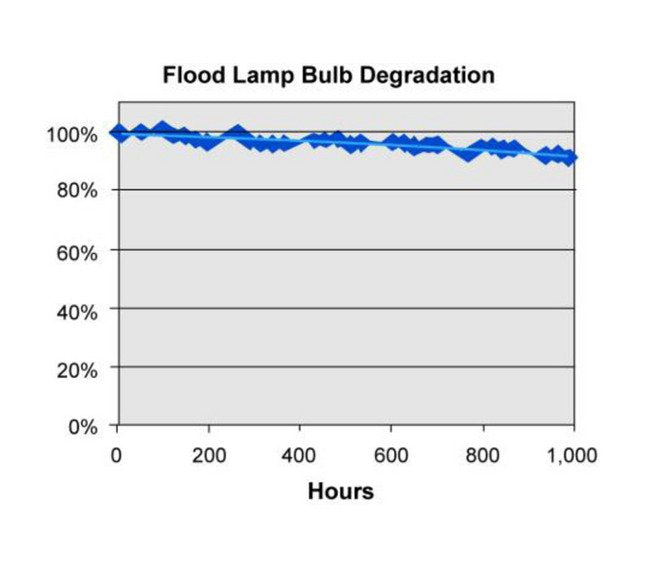

The intensity generated by Dymax® flood systems is very consistent. With continuous use, bulb degradation of less than 20% over the first 2,000 hours is typical. Power on/off cycle's temperature, humidity, and operating environment all have an effect on intensity degradation and will affect bulb life.The ACCU-CAL⢠150 radiometer is simple to operate and offers repeatable measurement of curing energy. The Dymax® ACCU-CAL⢠150 can measure UV light emitted from UV flood system, and UV conveyors.
Curing Area Curing Area Length
5 in | 12.7 cm
Curing Area Curing Area Width
5 in | 12.7 cm
Features 0
Powerful UV light-curing lamps (up to 225 mW/cm²) - Measured with a Dymax® ACCU-CAL⢠50 Radiometer (320 - 395 nm) at a lamp height of 3 in (7.62 cm) using a standard metal halide bulb.Standard systems contain a metal halide bulb (longwave) but two additional bulb options (shortwave and visible) are available for orderTwo flood lamp options available: 5 in x 5 in (12.7 cm x 12.7 cm) and 8 in x 8 in (20.3 cm x 20.3 cm)100% shielding with safety interlockEasy-to-adjust tray heightShutter that can be actuated by foot pedal or PLC Bulbs are warranted for 2,000 hours - Warranty covers bulb ignition only. Intensity is not warranted.Lamp turn-off when the Light Shield door is openContainment of non-passive lamp failureReduced light leakage with the new ECE Light Shield designRedesigned mounting plate for the ZIP Shutter reduces light leakage
Manufacturing Notes 0
Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL⢠50 radiometer.
Power Supply Alternating Current Ac Voltage
100 to 240 V
Power Supply Frequency
47 to 63 Hz
Power Supply Number Of Phases
Single phase
Power Supply Power Supply Height
4.25 in | 10.8 cm
Power Supply Power Supply Length
12 in | 30.5 cm
Power Supply Power Supply Width
16 in | 40.6 cm
Power Supply Voltage Tolerance
10 %
Reflector Housing Dimensions Reflector Housing Height
20.3 cm | 8 in
Reflector Housing Dimensions Reflector Housing Length
17.2 cm | 6.75 in
Reflector Housing Dimensions Reflector Housing Width
17.2 cm | 6.75 in
Specifications 0
Item # - 38560Metal Halide (Standard, UVA, Longwave)Item # - 36970Mercury (UVB, Shortwave)Item # - 36658Visible
Specifications Bulb Warranty
2000 H
Specifications Type
ECE 5000 Modular
Specifications Degradation
< 20 % over 2,000 hours
Specifications Initial Output Intensity At 365 Nanometer
225 mW/cm²
Specifications Ultraviolet A Uva Range
365 nm
Specifications Working Distance
5.08 to 15.24 cm | 2 to 6 in
