Dymax Four Pole UV Light Guide System
Dymax Four Pole UV Light Guide System
SKU:ULT-eecc0d
Enhance UV curing precision with the Dymax Four Pole Light-Curing System Lightguide, designed for optimal performance in UV adhesive applications.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Dymax Four Pole UV Light Guide System
$269.99
Quantity: 1
Claim Your Seller Account
Dymax Four Pole UV Light Guide System
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

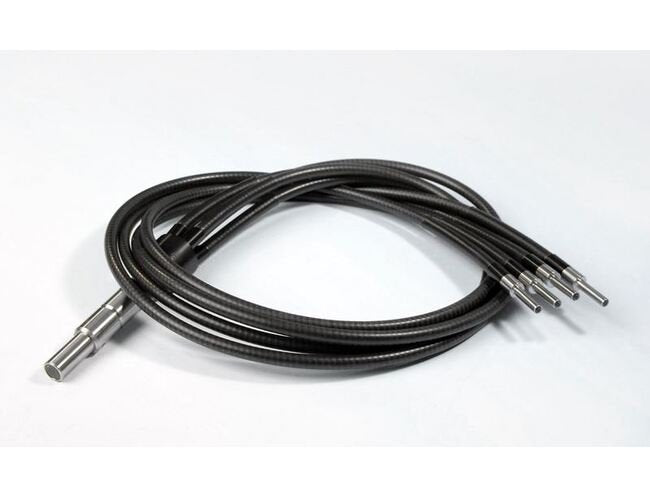

The Dymax Four Pole Light-Curing System Lightguide is a versatile accessory designed for rapid and controlled light curing of UV adhesives, coatings, and sealants. Featuring a liquid core within plastic tubing, this UV light guide is non-toxic, non-flammable, and transparent from 270 to 720 nm. Endorsed by Dymax®, this light guide ensures high performance and precision in UV curing applications. With a range extension covering Ultraviolet B (UVB) light and superior light transmission compared to quartz wands, the Dymax Four Pole Light Guide System is a reliable solution for both consumer and institutional UV curing needs.
Product Specifications
Accessories 0
Lightguide Mounting StandsItem # - 39700Item Name - Single Lightguide Mounting StandDescription - Utilizes a 24" flexible arm for mounting 3, 5, and 8-mm lightguides. This stand offers a 5" x 5" (127 mm x 127 mm) working area and allows repeatable, hands-free spot curing.Item # - 41325Item Name - Acrylic Lightguide Mounting StandDescription - Multiple lightguides can be securely mounted on this stand for repeatable, hand-free spot curing.Item # - 41595Item Name - Lightguide Stand Expansion KitDescription - Allows the Dymax® acrylic lightguide mounting stand to hold up to four lightguide poles.Lightguide TerminatorsDescription - Lightguide terminators can be attached to the end of a lightguide to help users get UV light to those difficult-to-reach locations.Item # - 39029 - 3 mm/60ºItem # - 39030 - 3 mm/90ºItem # - 38042 - 5 mm/60ºItem # - 38049 - 5 mm/90ºItem # - 39334 - 8 mm/60ºItem # - 39333 - 8 mm/90ºLightguide SimulatorsDescription - A lightguide simulator can be used to accurately measure the direct light intensity from the system's energy source.Item # - 38408Item Name - Lightguide Simulator, 7 mm DiameterItem # - 36987Item Name - Lightguide Simulator, 5 mm Diameter
Additional Information 0
Liquid lightguides help minimize degradation of light intensity over time and transmit the highest light intensity available for UV curing. But when light guides are not clean, the performance of your curing set up can become compromised. In this video, you'll learn how to tell when a liquid light guide needs to be cleaned, and how to clean it, ensuring optimal light-curing performance.
Features 0
Protected against degradation with the Dymax® Cool Blue⢠FilterTransmit 20-30% more UVA light than more costly quartz light wandsStand up to cleaning and flexing better than quartz fiberLight spectrum output is more favorable to photoinitiators in the UVA, violet, as well as blue ranges (300-460 nm)Standard Dymax® multipole configurations incorporate integrating rods for a more balanced output from pole-to-pole
Specifications Compatible Dymax Systems
BlueWave® MX-150
Specifications Extended Rangeultraviolet B Uvb
To obtain the benefits of UVB lightguides, filters must be removed
Specifications Lightguide Size
3 mm x 1.5 M
Specifications Note For Pole And Longitudinal Size
Lightguide adapter conversion kit (part #42932;) is required for use with BlueWave® MX-150
Specifications Number Of Poles
Four
Specifications Output Range
~ 37 to ~ 90 %
Specifications Ultraviolet A Uva Range
Transmits 20-30% more than quartz light wands
