Dymax Fusion F300 UV Conveyor System
Dymax Fusion F300 UV Conveyor System
SKU:ULT-ef8ca3
Experience efficient and consistent UV curing with the Dymax Fusion F300 UV Conveyor System. Full-width lamp coverage for versatile applications.
Regular price
$8,499.99
Regular price
Sale price
$8,499.99
Unit price
per
Initiate Order
Dymax Fusion F300 UV Conveyor System
$8,499.99
Quantity: 1
Claim Your Seller Account
Dymax Fusion F300 UV Conveyor System
$8,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

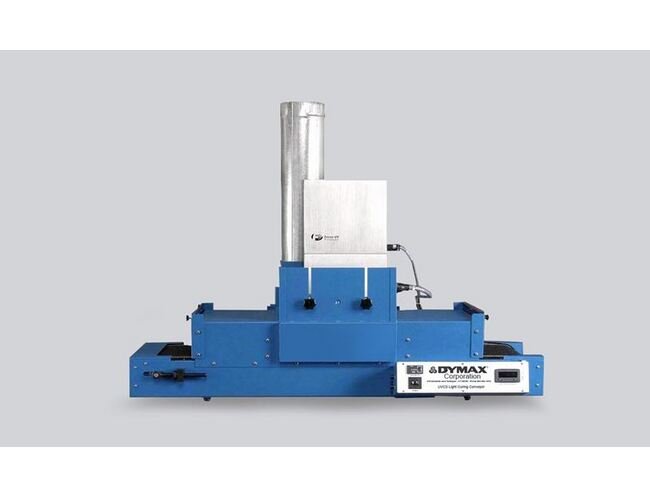

The Dymax Fusion F300 UV Conveyor System is an innovative solution for efficient UV curing processes. Featuring Fusion F300 lamps, this conveyor offers consistent curing with adjustable lamp to belt distance and full-width lamp coverage. With a curing width of 12 inches and a range of belt speeds from 1 to 27 ft/min, it provides versatility for various applications. This system also includes integral cooling, vacuum hold-down, and a vertical clearance of up to 10 inches, meeting the demanding standards of industrial UV curing processes.
Product Specifications
Additional Information 0
These conveyors have lamps that span the full width of the conveyor.
Features 0
Consistent UV curing processComplete UV shieldingAdjustable lamp to belt distance4 in, 6 in, or 10 in vertical clearanceIntegral cooling and vacuum hold-down1 to 27 fpm or 25 to 115 fpmBulb life: 5,000 hoursBench-top conveyor (cart optional)
Manufacturing Notes 0

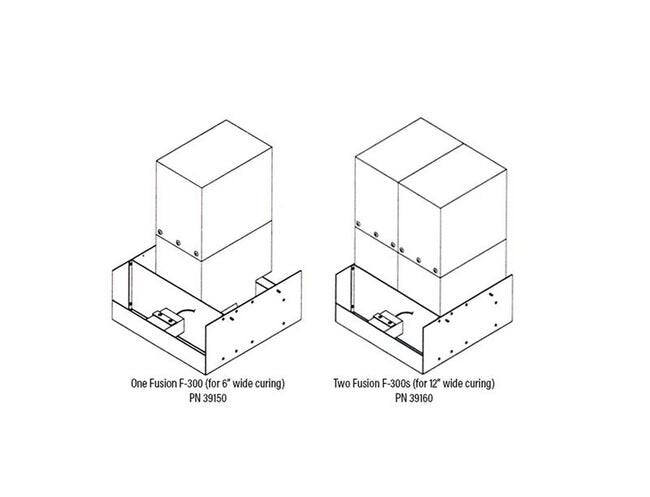

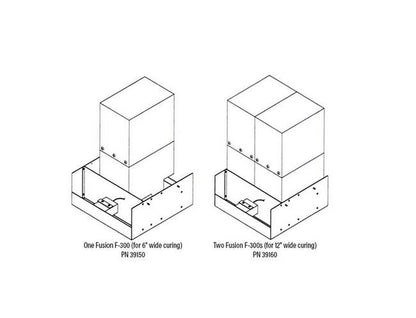

UVCS conveyors are available without lamps for those customers that have previously purchased 5000-EC or Fusion F300 lamps. Additional lamps may be incorporated into UVCS conveyors after initial purchase (from one or two Fusion lamps, or up to four 5000-ECs). Contact Dymax® Application Engineering for configuration assistance.
Note 0
These conveyors have lamps that span the full width of the conveyor.
Replacement Parts 0
Item # - 39205Item Name - Acrylic Tunnel ShieldQuantity - 1Item # - 39207Item Name - Tunnel Light CurtainQuantity - 1Item # - 39134Item Name - Replacement BeltQuantity - 1Item # - 39209Item Name - Extension ShieldQuantity - 1Item # - 39241Item Name - 5000-EC (for conveyors)Quantity - 1
Selection Of Lamps 0
These lamps provide moderate intensity (~200 mW/cm2) over a 6" x 6" (approximate) curing area. Their 400-Watt auto-switching power supplies accept 90 to 264 Volts AC and 47 to 63 Hz. With normal use, 5000-EC bulbs will retain approximately 90% of their original intensity after 1,000 hours. 5000-EC lamps are recommended for small-to-medium throughput bonding applications. For faster or more tack-free cures, Fusion F300 lamps are recommended.UVCS series conveyors can be outfitted with either 5000-EC lamps or Fusion F300 lamps.
Specifications Belt Speeds
1 to 27 ft/min
Specifications Belt Width
12 in | 30 cm
Specifications Conveyor Voltage
220 V | 230 V
Specifications Crated Height
29 in | 74 cm
Specifications Crated Length
69 in | 175 cm
Specifications Crated Width
44 in | 112 cm
Specifications Curing Width
12 in | 30 cm
Specifications Current
2.4 A
Specifications Frequency
50 Hz | 60 Hz
Specifications Lamp Adjustment Range
1.7 to 5.5 in | 4.3 to 14 cm
Specifications Lamp Model
Fusion F300 Lamps
Specifications Lamp Orientation
Full Width (FW)
Specifications Line Speed
1 to 27 fpm | 25 to 115 fpm
Specifications Maximum Parts Height
10 in | 25.4 cm
Specifications Maximum Ultraviolet A Uva Energy At 5 Feet Per Mi
2 J/cm² | 320 to 390 nm
Specifications Maximum Ultraviolet A Uva Intensity
2500 mW/cm² | 320 to 390 nm
Specifications Note For Maximum Parts Height
Adding Rises Increases
Specifications Number Of Lamps
2

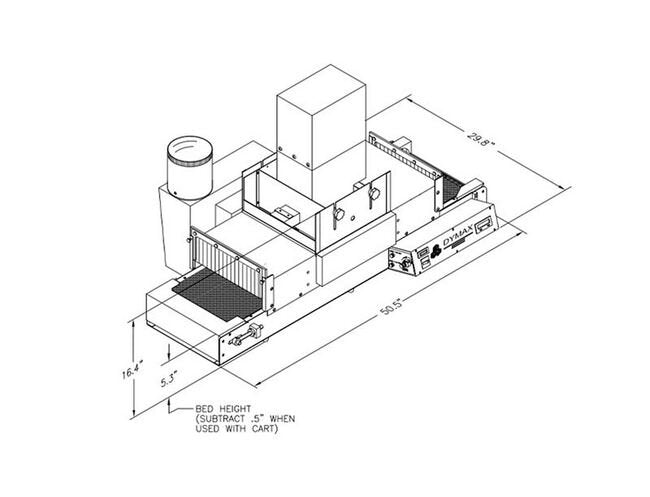

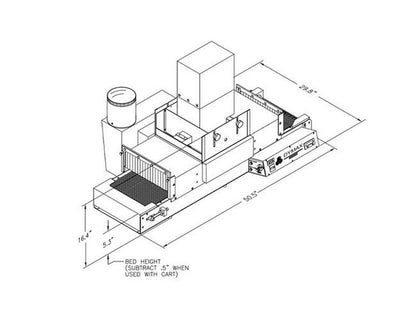

Specifications Overall Height
16.4 in | 42 cm
Specifications Overall Length
50.5 in | 128 cm
Specifications Overall Width
29.8 in | 76 cm
Specifications Shipping Weight With Crates And Lamps
350 to 400 lb | 159 to 181 kg
Specifications Type
Asian Version (Type G Plug)
Specifications Vertical Clearance
10 in (with 6 in riser, PN 39280) | 4 in (Standard) | 6 in (with 2 in riser, PN 39218)
Specifications Width Of Illuminated Area
12 in
