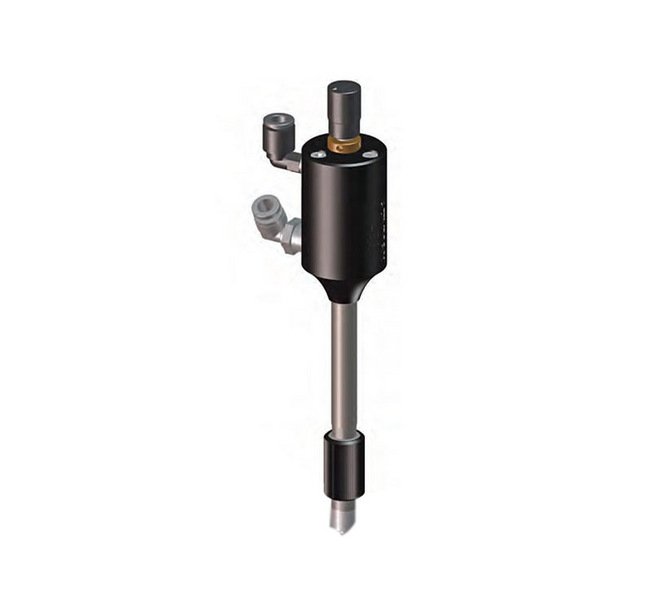

The Dymax® Large Reservoir Needle Valve Dispenser from the Model 400 Series offers precise control over dispensing volumes, ensuring shot-to-shot consistency with the DVC-345 controller. This wand-style valve is lightweight and comfortable to handle, ideal for dispensing low to medium viscosity materials. With the ability to dispense from pressurized cartridges, bottles, and pails, this system includes a valve stand, various dispense tips, and meets European Conformity standards.
Product Specifications
Additional Information 0
The Model 400 is available in several system packages, paired with the Dymax® DVC-345 bench-top valve controller and material reservoirs of various styles and sizes. Additional accessories, like a valve stand and various style dispense tips, are also available for this system.
Features 0
Material flow adjustment on valve for precise control over dispensing volumesShot-to-shot consistency when used with the DVC-345 controllerEasy and comfortable to handleLightweight, wand-style valve bodyAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Compatible with most standard fluid packages and delivery systemsFor use with low to medium viscosity materials
Specifications Activation
DVC-345 Valve Controller or 2-Position, 4-Way Solenoid Valve
Specifications Alternating Current Ac Electrical Supply Controll
110 V | 220 V
Specifications Certifications
Global (CE Marked)
Specifications Industry Standards
European Conformity
Specifications Maximum Fluid Pressure
80 psi | 5.5 bar
Specifications Operating Air Pressure
80 to 100 psi | 5.5 to 6.9 bar
Specifications Reservoir Size
Up to 1 gal

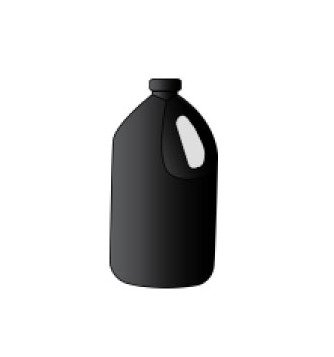

Specifications Reservoir Type
Large Bottle Drop-In
Specifications Valve Air Inlet Thread
10-32
Specifications Valve Construction Materials Wetted Parts
Acetal | PTFE | Silicone | Stainless Steel

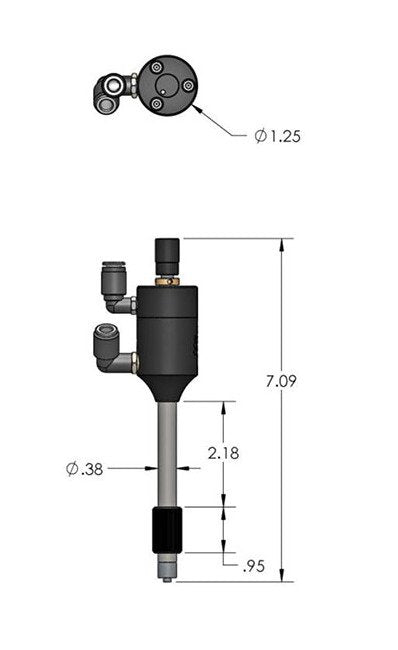

Specifications Valve Depth
1.25 in | 0.57 cm
Specifications Valve Fluid Inlet National Pipe Thread Npt
1/8 in | 3.2 mm
Specifications Valve Height
7.09 in | 3.22 cm
Specifications Valve Type
Normally Closed | Pneumatic Needle Valve
Specifications Valve Weight
0.35 lb | 0.16 kg
Specifications Warranty
1 Year from Purchase
System Includes 0
Model 400 Handheld Needle ValveSelected Reservoir for Fluid Package UsedDVC-345 Digital Valve ControllerAir Filter/Regulator - 0 to 100 psi (0 to 6.9 bar)Controller Air Line KitFluid Line Kit - 6 ft of Black 1/4 in (6.3 mm) OD tubing and 3/8 to 1/4 in(9.5 mm to 6.3 mm) reducer and two 3/8 to 1/4 in (9.5 mm - 6.3 mm) stem fitting insertsValve StandReservoir Air Line KitFluid Line Kit - 6 ft of black 3/8 in (9.5 mm) OD tubingDispensing Tip Kit for Low Viscosity FluidsAir Precision Regulator - Includes three pressure gauges:0 to 30 psi (0 to 2 bar) for very low to medium to viscosity materials0 to 60 psi (0 to 4.1 bar) for medium to viscosity materials0 to 100 psi (0 to 6.9 bar) for high to viscosity materials
