Dymax MD® Series 250 UV/LED Needle Bonding Adhesive
Dymax MD® Series 250 UV/LED Needle Bonding Adhesive
SKU:MDN-ac5ca1
Cutting-edge UV/LED needle bonding adhesive for rapid, efficient assembly processes with ISO 10993 compliance & fluorescing technology.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dymax MD® Series 250 UV/LED Needle Bonding Adhesive
$29.99
Quantity: 1
Claim Your Seller Account
Dymax MD® Series 250 UV/LED Needle Bonding Adhesive
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax MD® Series 250 Centipoise (cP) Nominal Viscosity Needle Bonding Adhesive is a cutting-edge solution for high-speed syringe assembly lines. This adhesive cures rapidly under UV/Visible/LED light, ensuring efficient production processes. Featuring UV/LED compatibility, ISO 10993 compliance, and fluorescing technology for automated inspection, this single-component adhesive is ideal for bonding various substrates like PC, PMMA, and PA plastics, as well as glass and metal. With its LED optimization, bright red fluorescing, and no added solvents, this adhesive delivers superior performance, meeting stringent industry standards for medical-grade applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information

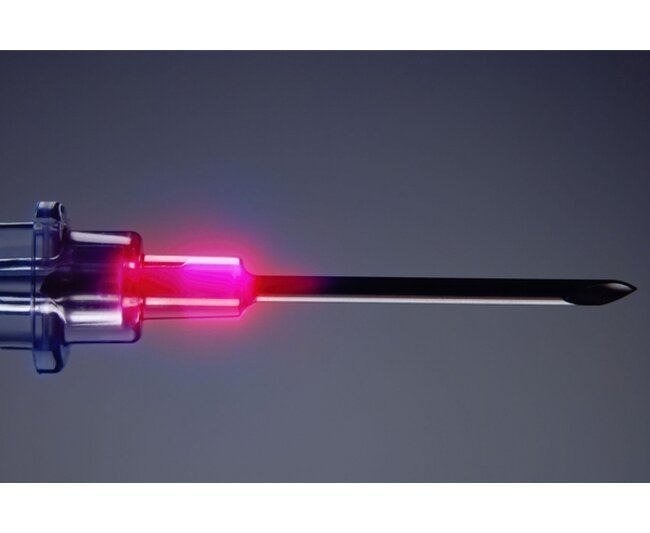

LED-Curable Ultra-Red® Fluorescing Medical AdhesiveDymax® MD® 1501-M-UR with Ultra-Red® fluorescing technology is designed for bonding lightly colored, opaque, or translucent substrates with either UV/Visible light or LED light at 405 nm. This product fluoresces bright red under low-intensity black light (365 nm). The bright red fluorescence contrasts extremely well on plastics that naturally fluoresce blue in color (like PVC), and greatly assists with visual inspection of the bond-line area.Typical applications include needle bonding, syringe assembly, and single-use assemblies. 1501-M-UR medical device adhesive also meets ISO 10993-5 Cytotoxicity biocompatibility approvals.Dymax® MD® Medical Device Adhesives materials have no solvents added and cure upon exposure to light. Their ability to cure in seconds enables faster processing, greater output, and lower processing costs. When cured with Dymax® light-curing spot lamps, focused beam lamps, or flood lamps, they deliver optimum speed and performance for medical device assembly. Dymax® lamps offer the ideal balance of UV and visible light for the fastest, deepest cures.
Available Grades Cured Durometer Hardness
D70
Available Grades Nominal Viscosity
250 cP
Available Grades Recommended Substrates
Acrylonitrile Butadiene Styrene (ABS) | Cellulose Acetate Propionate (CAP) | Polycarbonates (PC) | Polyethylene Terephthalate Glycol (PETG) | Polyvinyl chloride (PVC) | Stainless Steel | Styrene Acrylonitrile Resin (SAN)
Features Features
LED optimized for 405 nmCures with LED or UV/Visible lightUltra-Red® - fluoresces bright redNo solvents addedSingle componentCompliant with ISO 10993
Specifications Cured Elongation At Break
80 %
