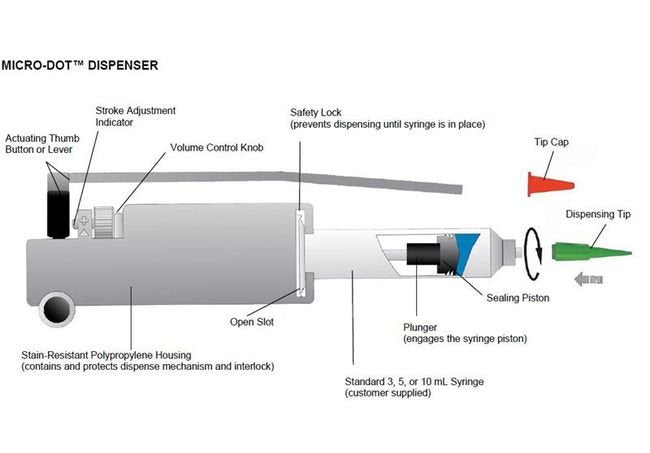

The Dymax Micro-Dot Manual Syringe Dispenser is a versatile and precise tool designed for adhesive dispensing applications. This lever-activated dispenser offers control over dispense volume, ensuring accuracy even with changes in viscosity and syringe level. Its portable design requires no power or air, allowing for convenient use anytime, anywhere. With features like positive-displacement dispensing, adjustable stroke, and compatibility with various syringe sizes, this dispenser eliminates material contamination risks during dispense. Ideal for multiple hand-held dispensing tasks, the Micro-Dot provides efficient and reliable dispensing performance.
Product Specifications
Accessories 0
Item # - T15466Inclined Syringe StandSyringe Stand for One SyringeStands for dispensing syringes and spray guns are ideal for keeping surfaces clean and organized.
Benefits 0
Control over dispense volume, assuring an accurate dispense despite viscosity and syringe level changesUseful for a variety of applicationsPortable; can be used anytime, anywhereEasy product change overEliminates the risk of material contamination during dispenseWorks with standard machine-ready syringesMultiple options for hand-held dispensing
Features 0
Positive-displacement dispensing with adjustable strokePortable design; no power or air requiredDisposable fluid reservoir for no material contaminationCompatible with standard machine-ready syringes (3,5, & 10 mL)
Specifications Activation
Manual by lever or thumb actuator
Specifications Dispenser Type
Manual, positive displacement syringe dispenser
Specifications Height
2.13 in | 5.4 mm
Specifications Length
4.5 in | 11.4 mm
Specifications Material Viscosity
400 cP
Specifications Maximum Shot Size
0.170 mL
Specifications Maximum Tip Taper Size
14 gauge
Specifications Minimum Shot Size
0.0003 mL
Specifications Minimum Tip Taper Size
25 gauge
Specifications Syringe Size
3 mL | 5 mL | 10 mL
Specifications Type
Lever Activated
Specifications Warranty
1 Year from Purchase
Specifications Weight
2.8 oz | 81.3 g
Specifications Width
0.87 in | 2.2 mm
