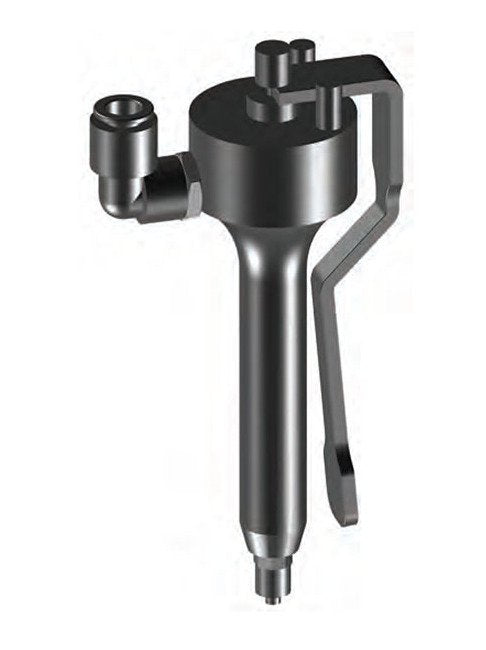

Dymax Model 200 Series Handheld Dispenser
Dymax Model 200 Series Handheld Dispenser
SKU:ADH-2457c5
Experience precision and ease with the Dymax Model 200 Handheld Dispenser, perfect for a wide range of adhesive dispensing needs.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dymax Model 200 Series Handheld Dispenser
$249.99
Quantity: 1
Claim Your Seller Account
Dymax Model 200 Series Handheld Dispenser
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax Model 200 Series Handheld Dispenser offers precise and ergonomic dispensing of low-to-medium viscosity fluids such as adhesives. Featuring a manually-controlled valve with a floating diaphragm, this dispenser ensures accurate dispensing for various applications. Its lightweight design and compatibility with different materials make it ideal for dot, bead, or potting applications. With compliance to European Conformity standards, this dispenser provides contamination-free dispensing and is easy to operate, making it a reliable choice for both manual and automated processes.
Product Specifications
Additional Information 0
Easy to operate, ergonomic designs for handheld dispensingDymax® offers handheld and mountable dispensing systems for manual or automated dispensing processes. Our dispensing systems are available with disposable fluid path, diaphragm, needle, and spool valves.Disposable Fluid Path Valves - Contaminate-Free DispensingDymax® disposable fluid path valves are uniquely engineered to prevent material contamination. The disposable fluid path carries materials from the material reservoir to the dispense tip, sealing fluids in the fluid path. This prevents the fluid from coming in contact with the valve's inner components and ensures a contaminate-free dispensing process. The fluid path is easy to replace and requires minimal clean-up, allowing for rapid material changeover.Diaphragm Valves - No Fluid Contamination with Less MaintenanceDiaphragm valves are ideal for dispensing light-curable materials, solvent-based products, and reactive materials like cyanoacrylates and anaerobic because the internal design of the valve prevents fluid from coming in contact with the valve's actuating components. This drastically minimizes valve maintenance and production down-time.Needle Valves - Extreme Precision DispensingNeedle valves are designed to deliver precise dots or very fine beads of low- to medium-viscosity fluids. Dymax® needle valves feature a stroke adjustment which allows for fine-tuning of the dispense volume and ensures precise and consistent deposits. Handheld and mountable models are available.Spool Valves - Accuracy with Suck-Back ControlSpool valves are ideal for automated dispensing systems and are designed to accurately dispense a variety of medium- to high-viscosity fluids. The valves' accuracy comes from two main features: suck-back control and adjustable flow control. The suck-back feature assures consistent, string less dispensing of tackier materials and prevents droplets from remaining on the dispense nozzle when using lower viscosity materials.
Dimensions Depth
2.20 in | 11.4 cm
Dimensions Height
6.45 in | 2.2 cm
Features 0
Lightweight, ergonomic design for easy handlingPortable design; no power or air requiredIdeal for dot, bead, or potting applications with fluids up to 5,000 cPs
Note 0
All systems include a Model 200 valve, selected reservoir, fluid line kits, valve stand, air precision regulator, airline kits, air filter/regulator, and tip kit.
Specifications Activation
Lever (Manual)
Specifications Capacity
6 oz
Specifications Industry Standards
European Conformity
Specifications Type
Cartridge Reservoir
Specifications Valve Type
Handheld Diaphragm | Normally Closed
