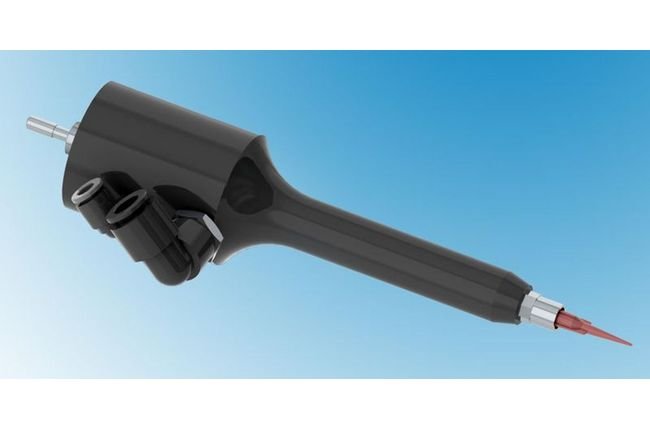

Dymax Model 300 Series Handheld Dispenser

Item# - T11146Power Requirements 120 VAC, 240 VAC, 50/60 Hz, 1/10 AmpDimensions - 6.25" x 8" x 3.5" [15.9 cm x 20.3 cm x 8.9 cm]Weight - 2.8 lb [1.27 kg]The DVC-345 digital valve controller provides precise and consistent valve actuation without complex programming. Its internal 4-way solenoid valve operates Dymax® or other pneumatic dispense valves. This controller may be operated via foot switch, manual front panel switch, or remote PLC. Cycle time may be set in a range from 0.001 to 9.999 seconds in 0.001 second increments.Item# - T170041 Gallon Bottle Drop-In TankCapacity - 1 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside.Item# - T178595 Gallon Bottle Drop-In TankCapacity - 5 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside.Item# - T1686410 Gallon Pail Drop-In TankCapacity - 10 galFor applications where large amounts of material are being dispensed, Dymax® offers pressure tanks that can accept bottle and pail size packages. These pressure-tanks have a fully removable lids, allowing for an entire bottle or pail to be placed inside. Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 14Color - WhiteInner Diameter - 0.063" [1.60 mm]Length - 1.25" [31.75 mm]Item# - T16-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 16Color - CharcoalInner Diameter - 0.047" [1.19 mm]Length - 1.25" [31.75 mm]Item# - T18-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 18Color - GreenInner Diameter - 0.033" [0.84 mm]Length - 1.25" [31.75 mm]Item# - T20-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 20Color - PinkInner Diameter - 0.023" [0.58 mm]Length - 1.25" [31.75 mm]Item# - T22-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 22Color - BlueInner Diameter - 0.016" [0.41 mm]Length - 1.25" [31.75 mm]Item# - T25-125-TT-50 (Value Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 25Color - RedInner Diameter - 0.010" [0.25 mm]Length - 1.25" [31.75 mm]Item# - P3230 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 14Color - WhiteInner Diameter - 0.063" [1.60 mm]Length - 1.25" [31.75 mm]Item# - P3231 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 16Color - CharcoalInner Diameter - 0.047" [1.19 mm]Length - 1.25" [31.75 mm]Item# - P3232 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 18Color - GreenInner Diameter - 0.033" [0.84 mm]Length - 1.25" [31.75 mm]Item# - P3233 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 20Color - PinkInner Diameter - 0.023" [0.58 mm]Length - 1.25" [31.75 mm]Item# - P3247 (Premium Line)Free-Flow Taper Tips (Sold in packages of 50)Free-flow taper tips are molded from polyethylene with a UV-light block additive, making them compatible with a wide variety of medium-to-high viscosity fluids including UV light-curable materials.Gauge - 25Color - RedInner Diameter - 0.010" [0.25 mm]Length - 1.25" [31.75 mm]item# - T15-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]item# - T18-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 18Color - GreenLength - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]item# - T20-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 20Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.023" [0.58 mm]item# - T25-050-PP-50 (Value Line)Polypropylene Flexible Dispensing Tips (sold in packages of 50)Polypropylene dispensing tips are ideal for difficult-to-reach applications. These soft, flexible tips prevent scratching of the part when the needle comes in contact with the work surface.Gauge - 25Color - RedLength - 0.5" [12.7 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T020-050-TL-50 (Value Line)PTFE-Lined Dispensing Tips (Sold in packages of 50)PTFE-lined needle tips are ideal for dispensing low-viscosity fluids. They resist clogging, making them great for use with gel cyanoacrylates. PTFE-lined dispensing tips can also be used with anaerobics, solvents, epoxies, grease, oils, pastes, and more. (Value Line)Gauge - 21Color - GrayLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T006-050-TL-50 (Value Line)PTFE-Lined Dispensing Tips (Sold in packages of 50)PTFE-lined needle tips are ideal for dispensing low-viscosity fluids. They resist clogging, making them great for use with gel cyanoacrylates. PTFE-lined dispensing tips can also be used with anaerobics, solvents, epoxies, grease, oils, pastes, and more. (Value Line)Gauge - 30Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.006" [0.15 mm]Item# - T14-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 14Color - WhiteLength - 0.5" [12.7 mm]Inner Diameter - 0.063” [1.60 mm]Item# - T15-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]Item# - T16-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 16Color - CharcoalLength - 0.5" [12.7 mm]Inner Diameter - 0.047" [1.19 mm]Item# - T18-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - GreenLength - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]Item# - T20-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 20Color - PinkLength - 0.5" [12.7 mm]Inner Diameter - 0.023" [0.58 mm]Item# - T21-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T23-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 0.5" [12.7 mm]Inner Diameter - 0.016" [0.41 mm]Item# - T25-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 25Color - RedLength - 0.5" [12.7 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T27-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 27Color - GrayLength - 0.5" [12.7 mm]Inner Diameter - 0.008" [0.20 mm]Item# - T30-050-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 30Color - LavenderLength - 0.5" [12.7 mm]Inner Diameter - 0.006" [0.15 mm]Item# - T14-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 14Color - WhiteLength - 1" [25.4 mm]Inner Diameter - 0.063" [1.60 mm]Item# - T15-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 1" [25.4 mm]Inner Diameter - 0.052" [1.32 mm]Item# - T16-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 16Color - CharcoalLength - 1" [25.4 mm]Inner Diameter - 0.047" [1.19 mm]Item# - T18-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - GreenLength - 1" [25.4 mm]Inner Diameter - 0.033" [0.84 mm]Item# - T20-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 20Color - PinkLength - 1" [25.4 mm]Inner Diameter - 0.023" [0.58 mm]Item# - T21-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 1" [25.4 mm]Inner Diameter - 0.020" [0.51 mm]Item# - T23-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 1" [25.4 mm]Inner Diameter - 0.016" [0.41 mm]Item# - T25-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 25Color - RedLength - 1" [25.4 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T27-100-50 (Value Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 27Color - GrayLength - 1" [25.4 mm]Inner Diameter - 0.008" [0.20 mm]Item# - P3169 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 0.5" [12.7 mm]Inner Diameter - 0.052" [1.32 mm]Item# - P3170 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - Green Length - 0.5" [12.7 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3171 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 0.5" [12.7 mm]Inner Diameter - 0.020" [0.51 mm]Item# - P3172 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 0.5" [12.7 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3175 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 15Color - AmberLength - 1" [25.4 mm]Inner Diameter - 0.052" [1.32 mm]Item# - P3176 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 18Color - Green Length - 1" [25.4 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3178 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 21Color - PurpleLength - 1" [25.4 mm]Inner Diameter - 0.020" [0.51 mm]Item# - P3177 (Premium Line)Stainless Steel Dispensing Tips (Sold in packages of 50)The most versatile of all tips, these dispensing tips are comprised of a polypropylene hub and passivated 304 stainless steel tubing. Stainless steel dispensing tips can be used with a wide variety of low-to-high viscosity fluids including adhesives, epoxies, greases, oils, paints, solder masks, solvents, and more.Gauge - 23Color - OrangeLength - 1" [25.4 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3431 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 14Color - White - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.063" [1.60 mm]Item# - P3432 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 18Color - Green - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.033" [0.84 mm]Item# - P3433 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 22Color - Blue - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.016" [0.41 mm]Item# - P3434 (Premium Line)Opaque Free-Flow Taper Tips (sold in packages of 10)Opaque free-flow taper tips are molded from polyethylene.Gauge - 25Color - Red - OpaqueLength - 1.25" [31.75 mm]Inner Diameter - 0.010" [0.25 mm]Item# - T16307Air Filter Regulator with Air Shut OffAccurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T16629High-Precision Air Regulator for Fluid PressureAccurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T17286Precision Air Regulator, 0-15 PSI (For Use with Spray Guns)Accurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing.Item# - T17289Precision Air Regulator,0-30 PSI (For Use with Spray Guns)Accurately monitor and control your dispensing system’s air pressure to achieve accurate dispensing..Item# - T167873/8" OD Polyethylene Fluid-Line Kit, 6' LongOuter Diameter 3/8 inLength 6 ftMaterial lines carry fluid from the reservoir to the dispensing valve.Item# - T167931/4" OD Polyethylene Fluid-Line Kit, 6' LongOuter Diameter - 1/4 inLength - 6 ftMaterial lines carry fluid from the reservoir to the dispensing valve.

Minimizes damage to the valve’s actuating components and requires less maintenanceWhen maintenance is necessary, it is simple and quick to perform, minimizing production down-timeSuitable for low- to high-viscosity fluidsShot-to-shot consistency (when used with the DVC-345 controller)Easy and comfortable to handle

Ideal for low-to-medium viscosity fluidsDiaphragm design minimizes necessary maintenanceMaterial flow adjustment for precise control over dispense volumes

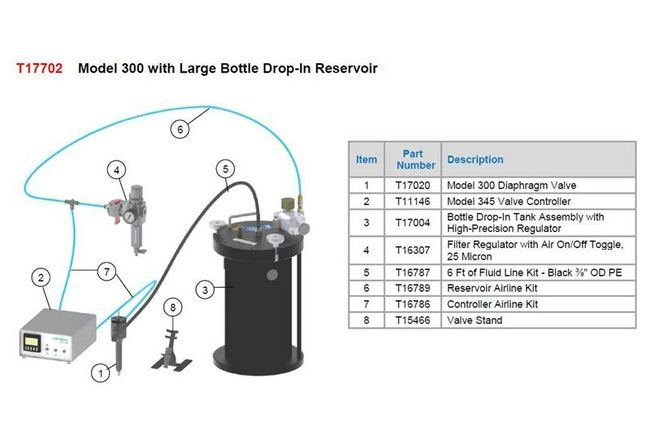

T11146 : Model 345 Valve Controller | T15466 : Valve Stand | T16307 : Filter Regulator with Air On/Off Toggle, 25 Micron | T16786 : Controller Airline Kit | T16787 : 6 Ft of Fluid Line Kit - Black 3/8 in OD PE | T16789 : Reservoir Airline Kit | T17004 : Bottle Drop-In Tank Assembly with High-Precision Regulator | T17020 : Model 300 Diaphragm Valve

2-Position | 4-Way Solenoid Valve | DVC-345 Valve Controller

110 V | 220 V

<1 gal

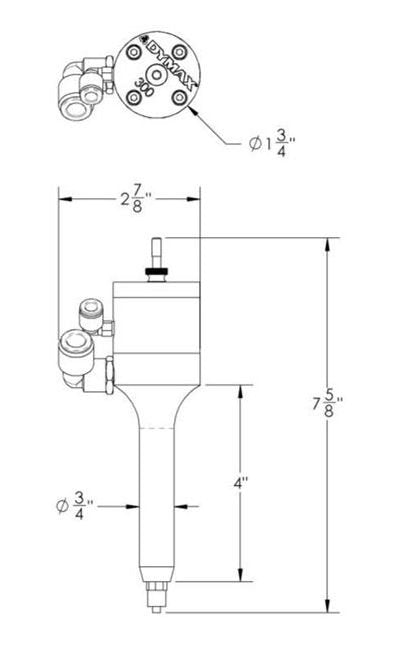

1.75 in | 4.45 cm

6 ft

3/8 in | 9.5 mm

7.63 in | 19.37 cm

European Conformity

80 psi | 5.5 bar

60 to 100 psi | 4.1 to 6.9 bar

0 to 30 psi | 0 to 60 psi | 0 to 100 psi | 0 to 2 bar | 0 to 4.1 bar | 0 to 6.9 bar

0 to 100 psi | 0 to 6.9 bar

Large Bottle Drop-In

10-32

Acetal | Polyethylene | PolyTetraFluoroEthylene (PTFE)

1/8 in | 3.2 mm

National Pipe Thread (NPT)

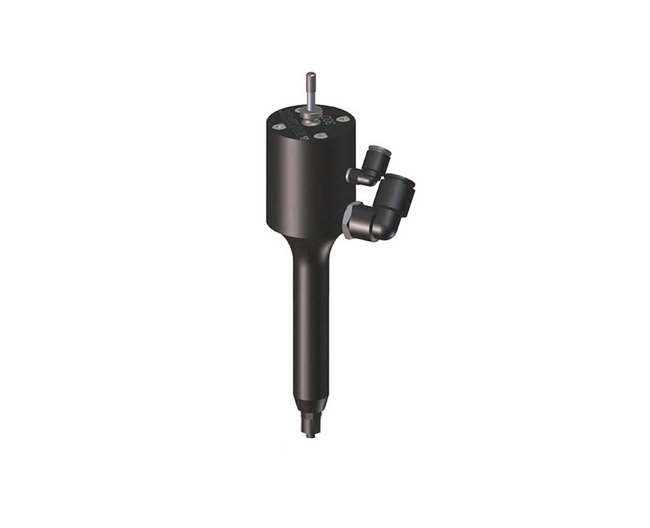

Handheld Diaphragm, Normally Closed

1 Year from Purchase

3.7 oz | 105 g

All systems includeModel 300 ValveDVC-345 ControllerSelected ReservoirFluid Line KitsValve StandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
