Dymax Model 455 Series 0.125" Tubing Disposable Fluid Path Dispenser
Dymax Model 455 Series 0.125" Tubing Disposable Fluid Path Dispenser
SKU:ADH-02c3e3
Achieve precise adhesive dispensing with the Dymax Model 455 Series Pinch Valve Dispenser.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Dymax Model 455 Series 0.125" Tubing Disposable Fluid Path Dispenser
$189.99
Quantity: 1
Claim Your Seller Account
Dymax Model 455 Series 0.125" Tubing Disposable Fluid Path Dispenser
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

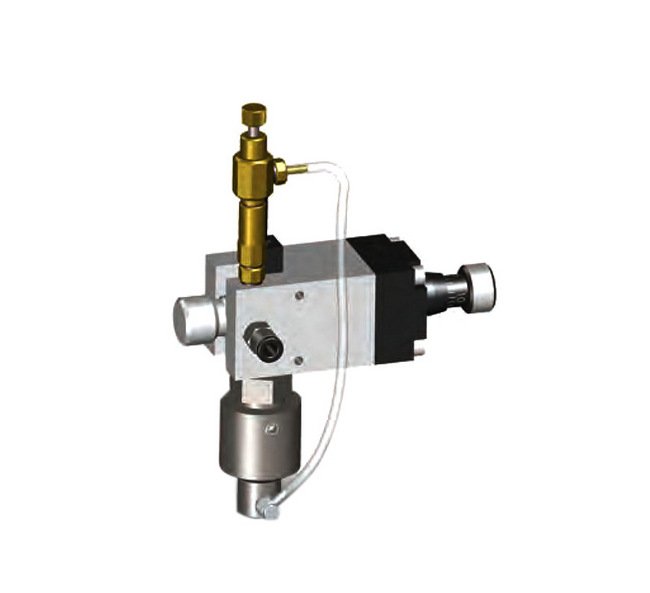

The Dymax Model 455 Series Mountable Disposable Fluid Path Dispenser is a precision-engineered, pneumatically operated pinch valve designed for dispensing medium to high viscosity adhesives with extreme accuracy. Its micrometer control feature ensures consistent material flow, while the disposable fluid path prevents contamination and allows for quick material changeover. With a durable anodized aluminum construction and versatile tubing options, this dispenser guarantees reliable performance. Integrated seamlessly into automated systems, it meets European Conformity standards for quality assurance.
Product Specifications
Accessories 0
Item # - T16029Description - Model 455 Valve Only with 0.066" Black Polytetrafluoroethylene (PTFE) TubingCertifications - Global (CE Marked)Item # - T17552Description - Model 455 Valve Only with 0.095" Black Polytetrafluoroethylene (PTFE) TubingCertifications - Global (CE Marked)Item # - T17555Description - Model 455 Valve Only with 0.125" Black Polyethylene TubingCertifications - Global (CE Marked)
Additional Information 0

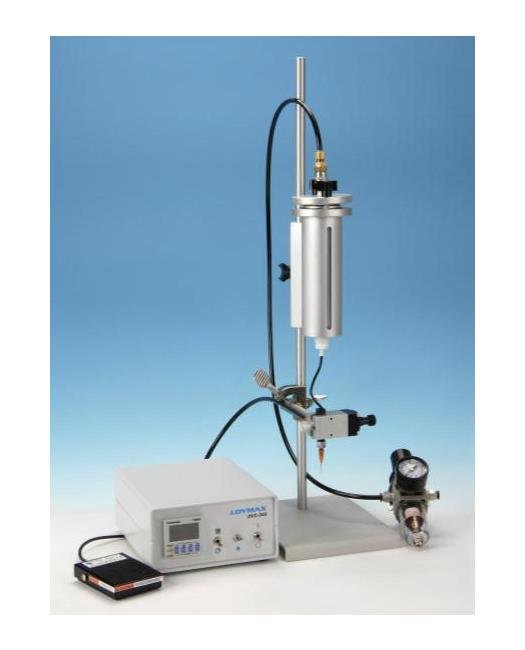

The dispensing valve can be integrated into an automated dispensing system or can be paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.

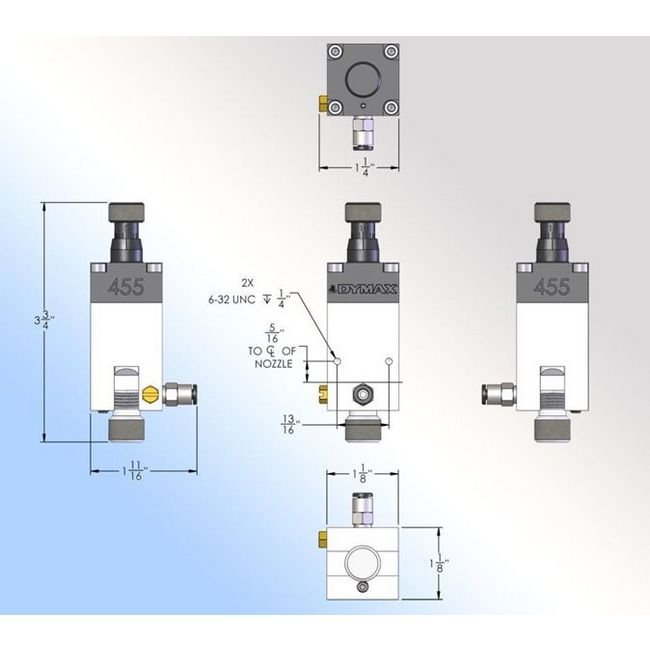

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
1.125 in | 2.86 cm
Dimensions Width
3.75 in | 9.53 cm
Features 0
Disposable fluid path that carriers materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processAllows for easy product changeover with minimal cleanupFluid never comes in contact with the valve's inner components, reducing maintenance and extending the valve life
Note 0
All systems include Model 455 valve, selected reservoir, fluid line kits, stand, air precision regulator, airline kits, air filter/regulator, and tip kit.
Specifications Activation
3-Way Solenoid Valve | Valve Controller
Specifications Cartridge Reservoir Capacity
20 oz | Up to 1 gal | 550 mL
Specifications Certifications
Global (CE Marked)
Specifications Construction Materials
Anodized Aluminum
Specifications Industry Standards
European Conformity
Specifications Material
Polyethylene (PE)
Specifications Maximum Inlet Fluid Pressure
100 psi | 6.89 bar
Specifications Maximum Operating Temperature
350 ºF | 177 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 6.35 mm
Specifications Operating Air Pressure
60 to 90 psi | 4.14 to 6.21 bar
Specifications Tubing Size
0.125 in
Specifications Type
Cartridge Reservoir
Specifications Flow Rate With Water
15 mL/s
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 Year from Purchase Date
Specifications Weight
5.5 oz | 146 g
