Dymax Model 455 Series Black Pinch Valve
Dymax Model 455 Series Black Pinch Valve
SKU:ADH-f3c555
Precision dispensing with Dymax Model 455 Black Pinch Valve for medium to high viscosity adhesives. Disposable fluid path for contamination-free dispensing.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Dymax Model 455 Series Black Pinch Valve
$249.99
Quantity: 1
Claim Your Seller Account
Dymax Model 455 Series Black Pinch Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

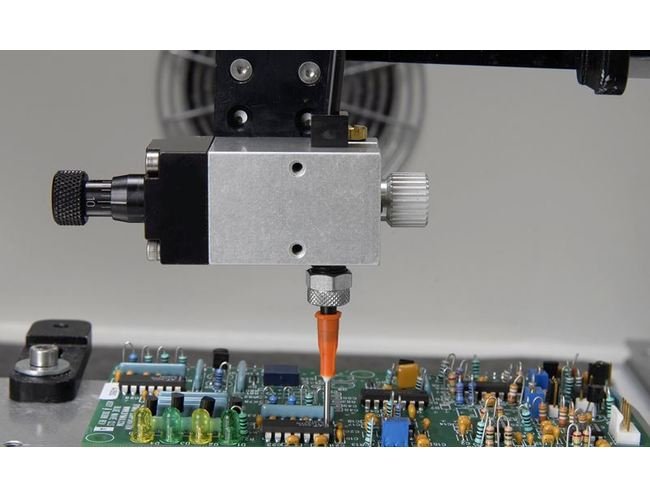

The Dymax Model 455 Series 0.125-inch Tubing Size Black Pinch Valve is a pneumatically operated, normally closed valve designed for dispensing medium to high viscosity adhesives with precision. Featuring a disposable fluid path, this valve ensures contaminate-free dispensing, material consistency, and minimal cleanup. With a micrometer control for flow adjustment, it offers accuracy and reliability. Ideal for light-curable adhesives, inks, and cyanoacrylates, this valve is constructed with anodized aluminum and PTFE materials, meeting European Conformity standards.
Product Specifications
Additional Information 0
This valve can be supplied with fluid paths of varying materials and sizes for optimum material compatibility.The dispensing valve can be integrated into an automated dispensing system or can be paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.

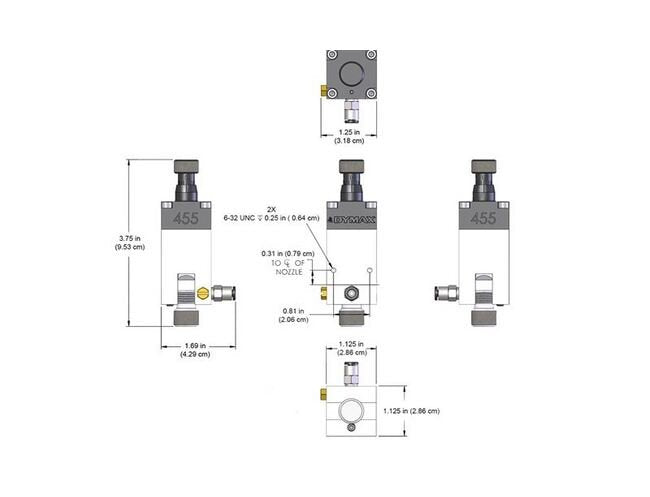

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
1.125 in | 2.86 cm
Dimensions Width
3.75 in | 9.53 cm
Features 0
Disposable fluid path that carriers materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processAllows for easy product changeover with minimal cleanupFluid never comes in contact with the valve's inner components, reducing maintenance and extending the valve life
Specifications Activation
3-Way Solenoid Valve | Valve Controller
Specifications Certifications
Global (CE Marked)
Specifications Construction Materials
Anodized Aluminum
Specifications Industry Standards
European Conformity
Specifications Material
Polytetrafluoroethylene (PTFE)
Specifications Maximum Inlet Fluid Pressure
100 psi | 6.89 bar
Specifications Maximum Operating Temperature
350 ºF | 177 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 6.35 mm
Specifications Operating Air Pressure
60 to 90 psi | 4.14 to 6.21 bar
Specifications Tubing Size
0.125 in
Specifications Type
Model 455
Specifications Flow Rate With Water
0.095 in (2.41 mm) ID tubing- 15 mL/second | 0.125 in (3.17 mm) ID tubing- 30 mL/second
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 Year from Purchase Date
Specifications Weight
5.5 oz | 146 g
