Dymax Model 455 Series Tubing Mountable Fluid Dispenser
Dymax Model 455 Series Tubing Mountable Fluid Dispenser
SKU:ADH-32d18a
Achieve precise, contaminate-free dispensing with the Dymax Model 455 Series Fluid Dispenser. European Conformity certified.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Dymax Model 455 Series Tubing Mountable Fluid Dispenser
$499.99
Quantity: 1
Claim Your Seller Account
Dymax Model 455 Series Tubing Mountable Fluid Dispenser
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

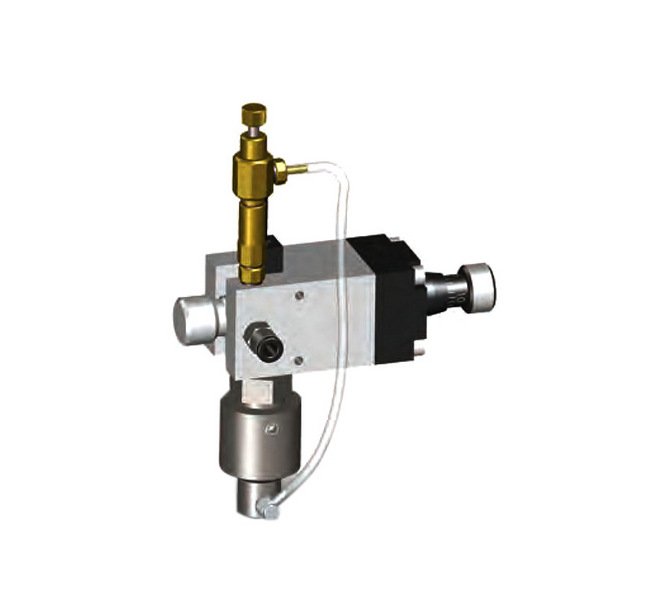

The Dymax Model 455 Series Tubing Mountable Fluid Dispenser features a pinch valve with a disposable fluid path, constructed from anodized aluminum. Operating at an air pressure range of 60 to 90 psi, it ensures precise dispensing with a maximum fluid pressure of 100 psi. With a tubing size of 0.066 inches and a PTFE material, this dispenser guarantees contaminate-free dispensing, easy product changeover, and extended valve life. Certified with European Conformity standards, this dispenser offers reliability and ease of operation for a variety of applications.
Product Specifications
Accessories 0
Item # - T16029Description - Model 455 Valve Only with 0.066" Black Polytetrafluoroethylene (PTFE) TubingCertifications - Global (CE Marked)Item # - T17552Description - Model 455 Valve Only with 0.095" Black Polytetrafluoroethylene (PTFE) TubingCertifications - Global (CE Marked)Item # - T17555Description - Model 455 Valve Only with 0.125" Black Polyethylene TubingCertifications - Global (CE Marked)
Additional Information 0

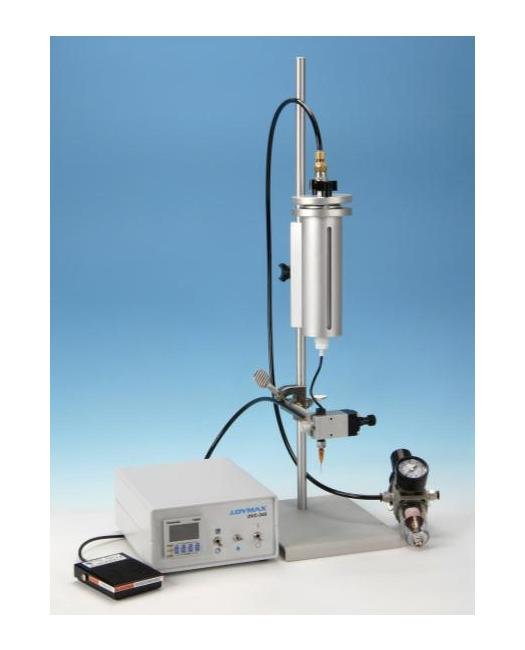

The Model 455's disposable fluid path carries materials from the material reservoir to the dispense tip. Fluids are sealed within the fluid path, preventing contact with the valve's inner components and ensuring a contaminate-free dispensing process. The fluid path is easy to replace and requires minimum clean-up, allowing for rapid material changeover. This valve can be supplied with fluid paths of varying materials and sizes for optimum material compatibility.The dispensing valve can be integrated into an automated dispensing system or can be paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.

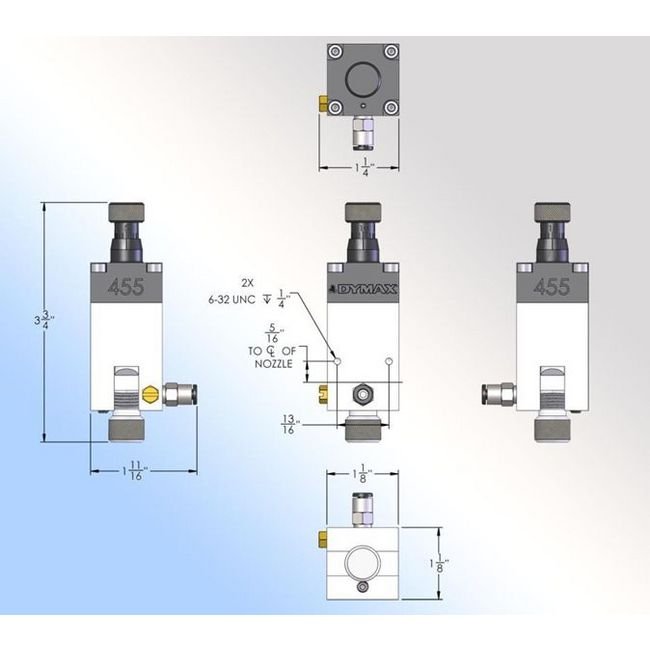

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
1.125 in | 2.86 cm
Dimensions Width
3.75 in | 9.53 cm
Features 0
Disposable fluid path that carriers materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processAllows for easy product changeover with minimal cleanupFluid never comes in contact with the valve's inner components, reducing maintenance and extending the valve life
Note 0
All systems include a Model 455 valve, selected reservoir, fluid line kits, stand, air precision regulator, airline kits, air filter/regulator, and tip kit
Specifications Activation
3-Way Solenoid Valve | Valve Controller
Specifications Cartridge Reservoir Capacity
20 oz | 550 mL
Specifications Certifications
Europe Only (CE Marked)
Specifications Construction Materials
Anodized Aluminum
Specifications Industry Standards
European Conformity
Specifications Material
Polytetrafluoroethylene (PTFE)
Specifications Maximum Inlet Fluid Pressure
100 psi | 6.89 bar
Specifications Maximum Operating Temperature
350 ºF | 177 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 6.35 mm
Specifications Operating Air Pressure
60 to 90 psi | 4.14 to 6.21 bar
Specifications Tubing Size
0.066 in
Specifications Type
Cartridge Reservoir
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 Year from Purchase Date
Specifications Weight
5.5 oz | 146 g
