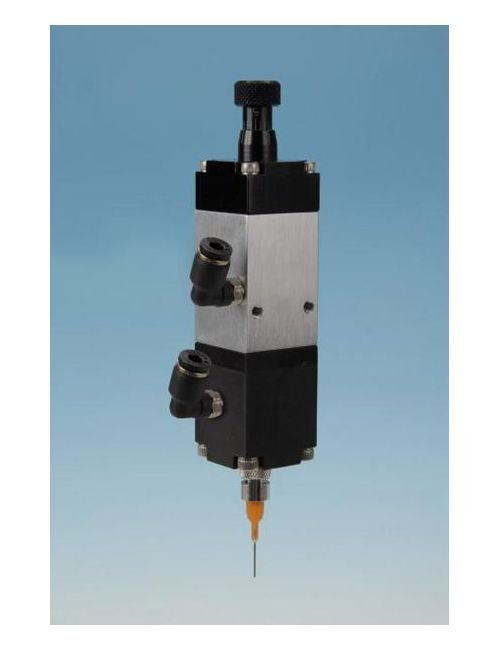

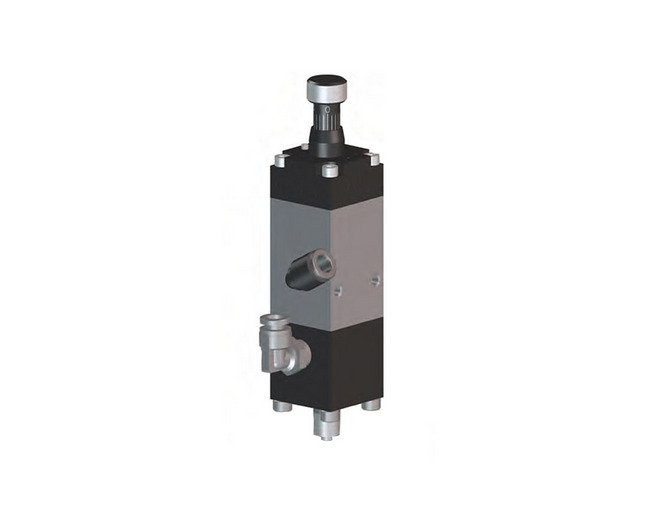

The Dymax Model 475 Series Air Pressure Dispenser is a cutting-edge solution for accurately dispensing low- to high-viscosity fluids. Featuring a pneumatic diaphragm valve with minimal wear, this dispenser excels in handling reactive materials. Its stroke adjustment capability ensures precise shot volumes, making it ideal for various applications. With a lightweight design and extreme precision, this dispenser minimizes maintenance needs and offers shot-to-shot consistency with the DVC-345 controller. Easy to handle and mount, it's perfect for automating processes or bench-top setups.
Product Specifications
Accessories 0
Item # - T16857Description - Valve Mounting Assembly
Benefits 0
Minimizes damage to the valveâs actuating components and necessary maintenanceSuitable for low- to high viscosity fluids including reactive and solvent based materialsShot-to-shot consistency (when used with the DVC-345 controller)Easy to handle and mount in automated or bench-top systems

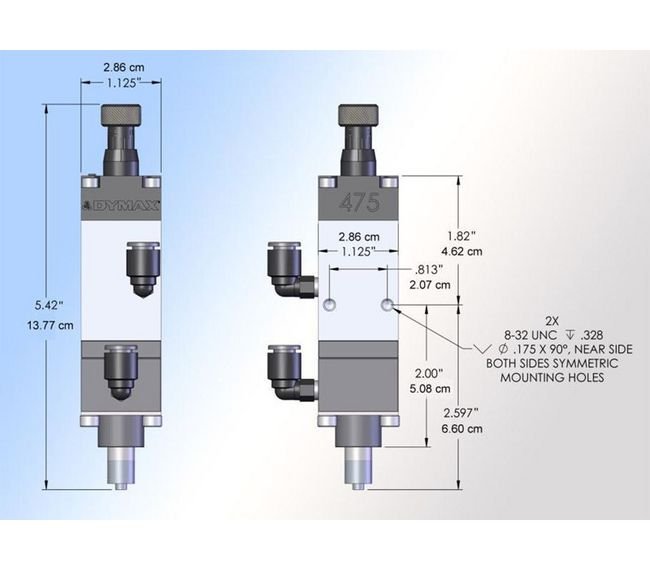

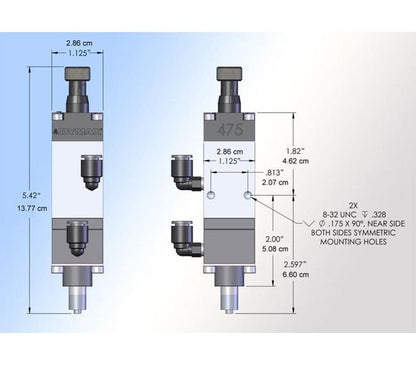

Dimensions Depth
1.125 in | 2.86 cm
Dimensions Height
5.42 in | 13.77 cm
Dimensions Width
1.125 in | 2.86 cm
Features 0
Lightweight for easy handling and mountingExtreme precision even at small sizesIdeal for low- to high-viscosity fluids including reactive solvent-based materialsMaterial flow adjustment for precise control over dispense volumes
Manufacturing Notes 0
Other sizes available in free flow orifice diameter
Parts Description 0
T16858 : Valve Rebuild Kit
Specifications Activation
3-Way Solenoid Valve | DVC-345 Controller
Specifications Air Inlet Thread
10-32
Specifications Body Material
Acetal (Wetted Parts)
Specifications Cycle Rate
3000 cycles/min
Specifications Diaphragm Material
UHMW Polyethylene (Wetted Parts)
Specifications Fluid Inlet National Pipe Thread Npt
1/8
Specifications Fluid Inlet Thread Type
National Pipe Thread (NPT)
Specifications Fluid Outlet Thread
1/4 to 28
Specifications Free Flow Orifice Diameter
0.1 in | 2.54 mm
Specifications Industry Standards
European Conformity
Specifications Maximum Inlet Fluid Pressure
120 psi | 8.27 bar
Specifications Maximum Operating Temperature
120 ºF | 49 ºC
Specifications Operating Air Pressure
60 to 80 psi | 4.14 to 5.51 bar
Specifications Valve Type
Pneumatic Diaphragm, Normally Closed
Specifications Warranty
1 Year from Purchase
Specifications Weight
5 oz | 0.14 kg
System Includes 0

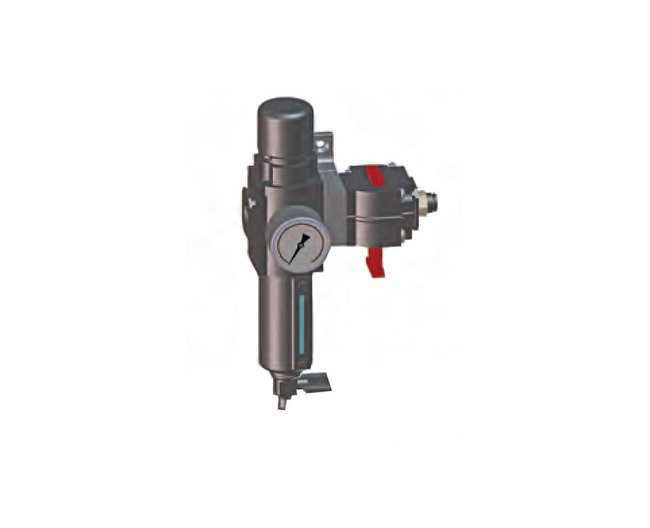

All systems includeModel 475 ValveDVC-345 ControllerSelected ReservoirFluid Line KitsValve Mounting AssemblyLab StandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
