Dymax Model 485 Series Mountable Dispenser
Dymax Model 485 Series Mountable Dispenser
SKU:ADH-165a5a
Accurate and precise dispensing system for low to high viscosity fluids with shot-to-shot consistency and easy integration into automated setups.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Dymax Model 485 Series Mountable Dispenser
$599.99
Quantity: 1
Claim Your Seller Account
Dymax Model 485 Series Mountable Dispenser
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

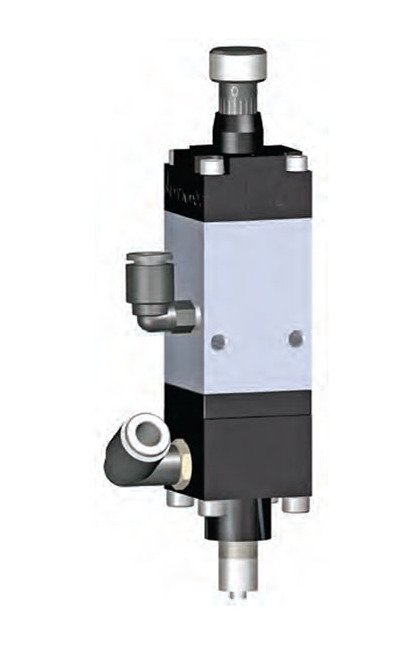

The Dymax Model 485 Series Mountable Dispenser is a precision dispensing system designed for delivering accurate dots or fine beads of low- to high-viscosity fluids. With a stroke adjustment valve for volume control, this system ensures consistent deposits, making it ideal for applications like glob-top dispensing and UV light-curable adhesives. Lightweight, easy to handle, and mountable, it offers shot-to-shot consistency when paired with the DVC-345 controller, allowing for precise control over dispense volumes. Suitable for integration into automated lines or bench-top systems, the Dymax dispenser is versatile for both manual and automated dispensing processes.
Product Specifications
Accessories 0

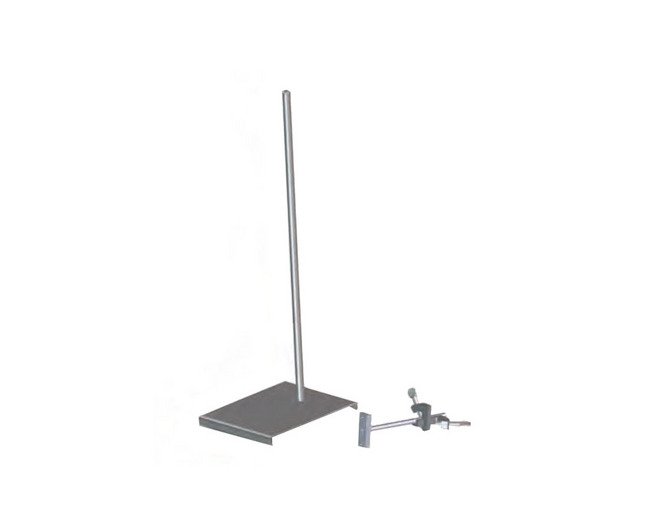

Item # - T16857Description - Valve Mounting Assembly
Additional Information 0
Mountable Dispensing SystemEasily integrated into automated lines or bench-top systemsHandheld & Mountable Dispensing SystemsEasy to operate, ergonomic designs for handheld dispensingDymax® offers handheld and mountable dispensing systems for manual or automated dispensing processes. Our dispensing systems are available with disposable fluid path, diaphragm, needle, and spool valves.Disposable Fluid Path Valves - Contaminate-Free DispensingDymax® disposable fluid path valves are uniquely engineered to prevent material contamination. The disposable fluid path carries materials from the material reservoir to the dispense tip, sealing fluids in the fluid path. This prevents the fluid from coming in contact with the valve's inner components and ensures a contaminate-free dispensing process. The fluid path is easy to replace and requires minimal clean-up, allowing for rapid material changeover.Diaphragm Valves - No Fluid Contamination with Less MaintenanceDiaphragm valves are ideal for dispensing light-curable materials, solvent-based products, and reactive materials like cyanoacrylates and anaerobics because the internal design of the valve prevents fluid from coming in contact with the valve's actuating components. This drastically minimizes valve maintenance and production down-time.Needle Valves - Extreme Precision DispensingNeedle valves are designed to deliver precise dots or very fine beads of low- to medium-viscosity fluids. Dymax® needle valves feature a stroke adjustment which allows for fine-tuning of the dispense volume and ensures precise and consistent deposits. Handheld and mountable models are available.Spool Valves - Accuracy with Suck-Back ControlSpool valves are ideal for automated dispensing systems and are designed to accurately dispense a variety of medium- to high-viscosity fluids. The valves' accuracy comes from two main features: suck-back control and adjustable flow control. The suck-back feature assures consistent, stingless dispensing of tackier materials and prevents droplets from remaining on the dispense nozzle when using lower viscosity materials.
Dimensions Depth
1.13 in | 2.87 cm
Dimensions Height
5.14 in | 13.06 cm
Dimensions Width
1.13 in | 2.87 cm
Features 0
Lightweight for easy handling and mountingIdeal for low-to-high viscosity fluidsShot-to-shot consistency (when used with DVC-345 controller)Material flow adjustment for precise control over dispense volumes
Note 0
All systems include a Model 485 valve, DVC-345 controller, selected reservoir, fluid line kits, valve mounting assembly, air precision regulator, airline kits, air filter/regulator, and tip kit
Specifications Activation
3-Way Solenoid Valve | DVC-345
Specifications Cartridge Reservoir Capacity
<1 gal
Specifications Industry Standards
European Conformity
Specifications Type
Bottle Drop-In
Specifications Valve Type
Normally Closed | Pneumatic Needle
