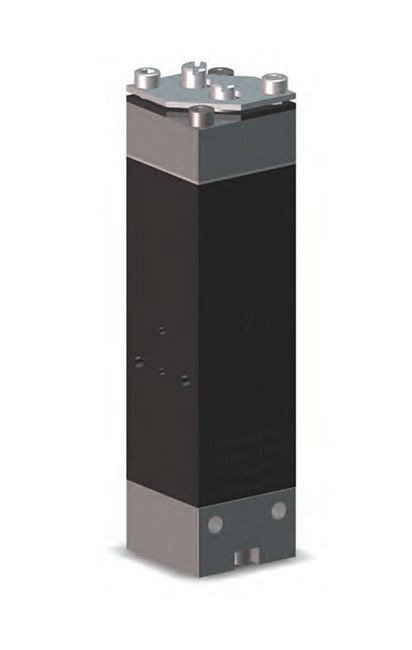

Dymax Model 775 Spool Control Valve
Dymax Model 775 Spool Control Valve
SKU:ADH-3b8c55
Accurate dispensing valve for medium- to high-viscosity fluids with adjustable suck-back and flow control. Ideal for automated applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dymax Model 775 Spool Control Valve
$349.99
Quantity: 1
Claim Your Seller Account
Dymax Model 775 Spool Control Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

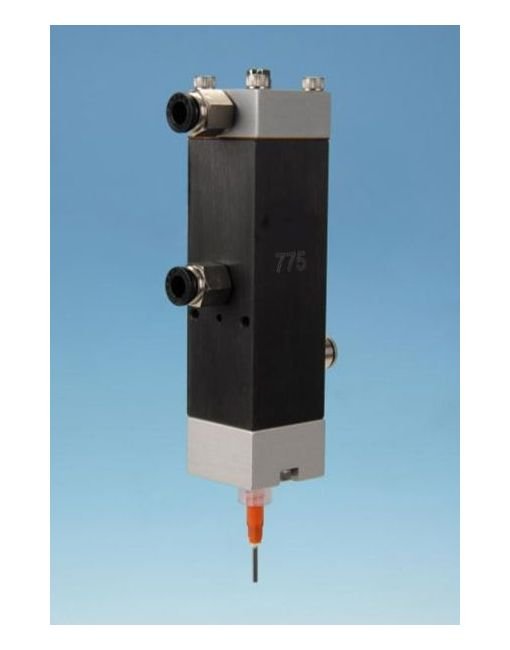

Ideal for precise dispensing of medium- to high-viscosity fluids, the Dymax Model 775 Spool Control Valve features adjustable suck-back and flow control for accurate automated applications. With a valve width of 1.25 inches and a height of 5.42 inches, this valve is suitable for dispensing volumes from 0.01 mL to 50 mL. It is compatible with various reservoir hardware and seal materials, providing crisp shut-off and accurate shots, making it a versatile choice for adhesive dispensing systems.
Product Specifications
Accessories 0
Item # - T15450Description - Valve Mounting Assembly
Benefits 0
Provides a crisp, clean shut-off of materials eliminating droplets and skinning-over at the end of the dispense tipValve is compatible with a larger variety of fluidsProvides accurate dispensing in shots from 0.01 mL to 50 mLLock prevents drifting or tamperingCompatible with most standard fluid packages and delivery systems Easy to handle and mount in automated or bench-top systems
Features 0
Adjustable suck-back for crisp, clean shut-off of materialsAvailable with PTFE or Fluoroelastomer sealsAdjustable and lockable flow control for accurate dispensing shotsAble to dispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight for easy handling and mounting
Specifications Activation
3-Way Solenoid Valve | DVC-345
Specifications Construction Materials
Fluoroelastomer | PTFE
Specifications Seal Material
fluoroelastomer o-ring
Specifications Thread Size
1/4 in
Specifications Thread Type
National Pipe Thread (NPT)
Specifications Type
No Reservoir

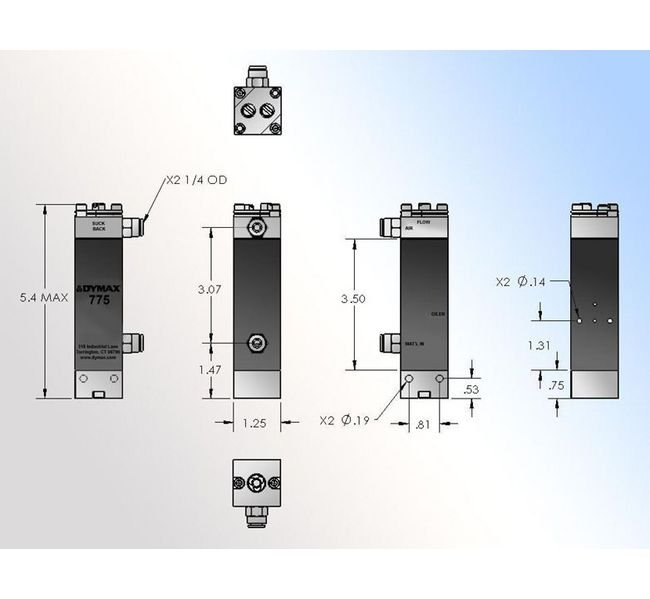

Specifications Valve Depth
1.25 in | 3.18 cm
Specifications Valve Height
5.42 in | 13.77 cm
Specifications Valve Type
Modified Spool, Normally Closed
Specifications Valve Width
1.25 in | 3.18 cm
System Includes 0
All systems includeModel 775 ValveSelected ReservoirFluid Line KitsStandAir Precision RegulatorAir Line KitsAir Filter/RegulatorTip Kit
