Dymax Model 828 Open Disposable Fluid Path Pinch Valve
Dymax Model 828 Open Disposable Fluid Path Pinch Valve
SKU:ADH-bcb5ef
Get precise control and contaminant-free dispensing with the Dymax Model 828 Pinch Valve.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Dymax Model 828 Open Disposable Fluid Path Pinch Valve
$149.99
Quantity: 1
Claim Your Seller Account
Dymax Model 828 Open Disposable Fluid Path Pinch Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

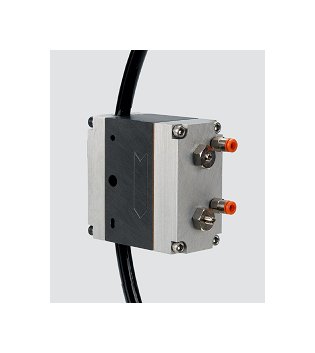

The Dymax Model 828 Open Disposable Fluid Path Pinch Valve is a high-performance valve designed for precise control over material flow rates. This valve features a disposable fluid path that prevents contact with the valve's inner components, ensuring a contaminant-free dispensing process. With suck-back control for handling stringy and tacky materials, easy product changeover, and over-pinch adjustment to prevent tubing damage, this valve offers reliability and efficiency. Lightweight and compatible with various materials, the Dymax Model 828 is perfect for both consumer and institutional adhesive dispensing needs.
Product Specifications
Additional Information 0
This valve is compatible with a maximum tubing size of 0.375 in [9.53 mm] OD.The Model 828 valve can be integrated into an automated dispensing system and controlled with a four-way solenoid valve or paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.
Dimensions Depth
1.50 in | 3.81 cm
Dimensions Height
2.91 in | 7.39 cm
Dimensions Width
2.98 in | 7.57 cm
Features 0
Disposable fluid path that carries materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processEasy product changeover with minimal clean upFluid never comes in contact with the valve's inner components, reducing valve maintenance and extending the life of the valveOver-pinch adjustment prevents tubing damage and millions of cycle before replacementAdjustable suck-back control eliminates drooling and film over nozzleDrop-free dispense when dispensing thin or stringy materialsDispenses from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight, easy to handle and mount in automated or bench-top systems
Specifications Accepts Air Inlets Outside Diameter Od
0.156 in | 0.40 cm
Specifications Activation
Valve controller or 4-way Solenoid Valve
Specifications Construction Materials
Anodized Aluminum
Specifications Material
Polyethylene
Specifications Maximum Operating Temperature
150 ºF | 65 ºC
Specifications Maximum Tubing Outer Diameter Od
0.25 in | 0.63 mm
Specifications Operating Air Pressure
75 to 100 psi | 5 to 7 bar
Specifications Maximum Inlet Fluid Pressure
100 psi | 7 bar
Specifications Valve Type
Pinch Valve with Disposable Fluid Path
Specifications Warranty
1 year
Specifications Weight
0.23 kg | 0.5 lb
