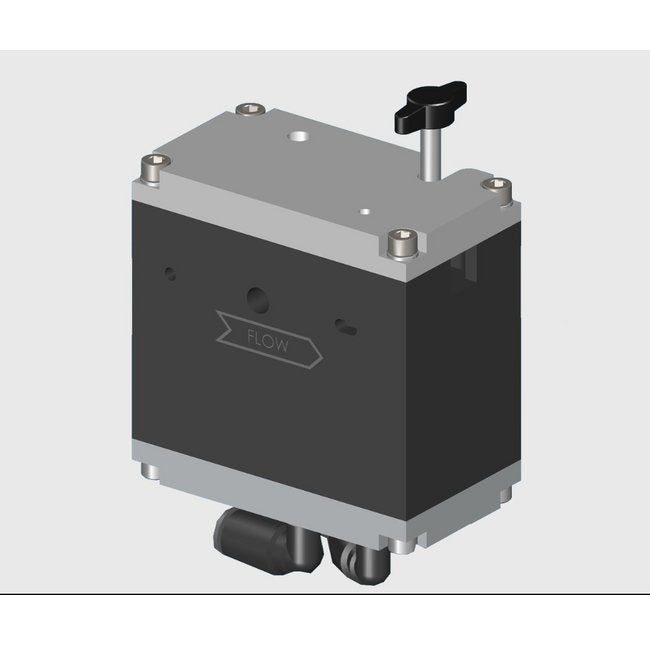

Dymax Model 830 Disposable Fluid Path Pinch Valve, 300mL
Dymax Model 830 Disposable Fluid Path Pinch Valve, 300mL
SKU:ADH-d5fca4
Get precise, mess-free material dispensing with the Dymax Model 830 Disposable Fluid Path Pinch Valve, designed for low- to high-viscosity substances.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Dymax Model 830 Disposable Fluid Path Pinch Valve, 300mL
$289.99
Quantity: 1
Claim Your Seller Account
Dymax Model 830 Disposable Fluid Path Pinch Valve, 300mL
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax Model 830 Disposable Fluid Path Pinch Valve is a cutting-edge solution for precise material dispensing. This normally closed valve offers superior material flow rates for low- to high-viscosity substances. The valve's disposable fluid path ensures contaminant-free dispensing, with an easy-to-replace design that minimizes cleanup time. Featuring a dual-piston pinch mechanism and suck-back control, this valve excels at handling stringy and tacky materials with efficiency and precision, making it ideal for industrial and institutional applications.
Product Specifications
Additional Information 0
The Model 830 valve can be integrated into an automated dispensing system and controlled with a three-way solenoid valve or paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.
Dimensions Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Height
3.25 in | 8.25 cm
Dimensions Dimension With Fittings And Hardware Width
4.75 in | 12.1 cm
Dimensions Height
3.125 in | 7.94 cm
Dimensions Width
3.125 in | 7.94 cm
Features 0
Disposable fluid path that carries materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processEasy product changeover with minimal clean upFluid never comes in contact with the valve, reducing valve maintenance and extending the life of the valveOver-pinch adjustment prevents tubing damage and extends lifeAdjustable suck-back control eliminates drooling and filming over nozzleDrip-free dispense when dispensing thin or stringy materialsDispenses from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight, easy to handle and mount in automated or bench-top systems
Note 0
Cartridge drop-in - 12 oz [300 mL]
Specifications Activation
Valve controller or 3-way Solenoid Valve
Specifications Construction Materials
Anodized Aluminum
Specifications Maximum Inlet Fluid Pressure
0 to 100 psi | 0 to 7 bar
Specifications Maximum Operating Temperature
104 ºF | 40 ºC
Specifications Maximum Tubing Outer Diameter Od
0.375 in | 9.53 mm
Specifications Operating Air Pressure
60 to 100 psi | 4 to 7 bar
Specifications Valve Type
Pinch Valve with Disposable Fluid Path, Normally Closed
Specifications Volume
12 oz | 300 mL
Specifications Warranty
1 year
Specifications Weight
0.68 kg | 1.5 lb
