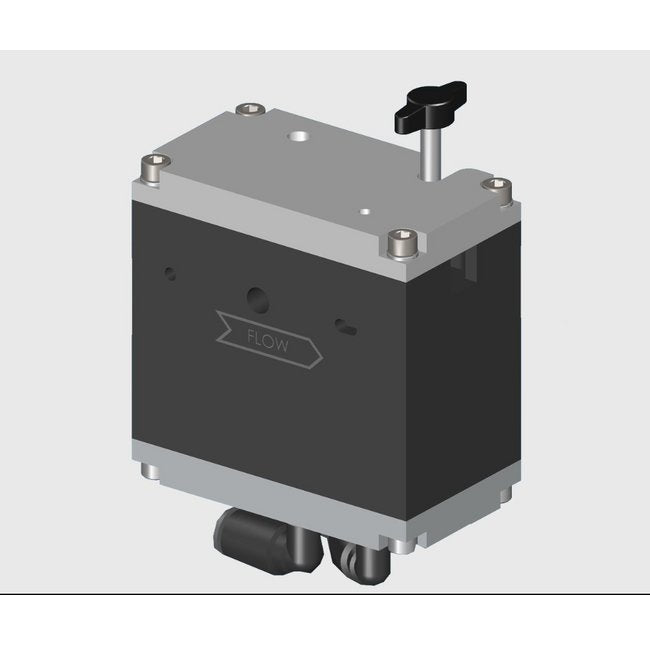

The Dymax Model 830 Disposable Pinch Valve is a high-performance solution for precise material dispensing. Featuring a normally closed design with a disposable fluid path, this valve ensures contaminate-free dispensing from low to high-viscosity materials. Its dual-piston mechanism, suck-back control, and disposable fluid path provide efficient handling of stringy and tacky substances with minimal mess. Easy to integrate into automated systems, this valve promotes rapid material changeover and extended valve life, making it ideal for industrial applications demanding reliability and cleanliness.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information 0
The Model 830 valve can be integrated into an automated dispensing system and controlled with a three-way solenoid valve or paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.
Dimensions Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Height
3.25 in | 8.25 cm
Dimensions Dimension With Fittings And Hardware Width
4.75 in | 12.1 cm
Dimensions Height
3.125 in | 7.94 cm
Dimensions Width
3.125 in | 7.94 cm
Features 0
Disposable fluid path that carries materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processEasy product changeover with minimal clean upFluid never comes in contact with the valve, reducing valve maintenance and extending the life of the valveOver-pinch adjustment prevents tubing damage and extends lifeAdjustable suck-back control eliminates drooling and filming over nozzleDrip-free dispense when dispensing thin or stringy materialsDispenses from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight, easy to handle and mount in automated or bench-top systems
Specifications Activation
Valve controller or 3-way Solenoid Valve
Specifications Construction Materials
Anodized Aluminum
Specifications Maximum Inlet Fluid Pressure
0 to 100 psi | 0 to 7 bar
Specifications Maximum Operating Temperature
104 ºF | 40 ºC
Specifications Maximum Tubing Outer Diameter Od
0.375 in | 9.53 mm
Specifications Operating Air Pressure
60 to 100 psi | 4 to 7 bar
Specifications Valve Type
Pinch Valve with Disposable Fluid Path, Normally Closed
Specifications Warranty
1 year
Specifications Weight
0.68 kg | 1.5 lb
