Dymax Multi-Cure Conformal Coating
Dymax Multi-Cure Conformal Coating
SKU:CON-5f991a
Quick-curing conformal coating with secondary cure capabilities for PCB protection in extreme conditions. IPC/MIL SPEC approved.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Dymax Multi-Cure Conformal Coating
$29.99
Quantity: 1
Claim Your Seller Account
Dymax Multi-Cure Conformal Coating
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

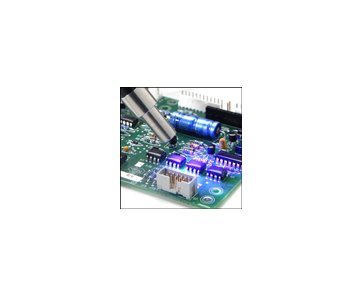

Protect PCBs and components with Dymax Multi-Cure Conformal Coating, a light-cure solution that offers quick UV/Visible/LED curing in seconds. Featuring secondary heat or moisture-cure capabilities for shadow areas, this conformal coating provides flexibility, rigid bonds, and temperature/humidity resistance. With approvals like IPC and MIL SPEC, and industry-specific certifications, it meets high standards for automotive, industrial, and military applications. Notable for its halogen-free, one-part formulation and high dielectric strength, this coating ensures reliable board protection in seconds.
Product Specifications
Additional Information 0
Reliable Board Protection in Seconds.
Additional Key Features 0
Black grades availableVariety of available viscosities
Applications 0
ConformalCorrosion ResistantIndustrialMilitary SpecificationUltraviolet (UV)
Cured Mechanical Properties Durometer Hardness
D60
Cured Mechanical Properties Elongation At Break
150 %
Cured Mechanical Properties Modulus Of Elasticity
37.9 MPa | 5,500 psi
Cured Mechanical Properties Tensile At Break
15.8 MPa | 2,300 psi
Electrical Properties Dielectric Strength
> 1,500 V/mil
Environmental Benefits Of Dymax Light Curable Materials 0
Dymax® understands that safe, ecologically friendly products benefit our customers, the environment, and us.We have created materials that minimize ecological impact. These attributes include:No solvents added materialsHalogen-free materialsREACH - no substance of very high concern (SVHC)Eco-friendly, one-component materialsDymax® Halogen-Free conformal coatings, encapsulants, and adhesives are documented by an independent laboratory to meet or exceed standards set forth in IEC 61249-2-21. This international directive defines halogen-free as < 900 ppm for chlorine, < 900 ppm for bromine and < 1,500 ppm total level of both combined. The current test method used for certification is BS EN 14582:2007.
Industries Served 0
AutomotiveTypical applications include speedometer circuitry, engine control modules and sensors, door and window controls, airbag sensors, audio circuitry, and more.InstrumentationTypical applications include sensor circuits, display connectors, mother boards, and more.Smart Connected DevicesTypical applications include PCBs for camera modules, tablets, cell phones, computers, wearables, and more.ApplianceTypical applications include control boards, sensors, and modules used in handheld power tools, appliance sub-components, small consumer appliances, and major home appliances.IndustrialTypical applications include circuit boards used in electrical sockets, power supplies, and switches.
Note 0
Other grades are available for specific applications requiring physical properties different from standard products listed here.
Other Cured Properties Flammability
UL V-0
Specifications Approvals
IPC-CC-830-B | MIL-I-46058C | UL 746 | UL Flammability
Specifications Halogen Free
Yes
Specifications Heat
Yes
Specifications Ultraviolet Uv Visible Light
Yes
Testing Corrosion Resistance Flowers Of Sulfur
Poor
Testing Corrosion Resistance Salt Fog
Good
Testing Flexibility Ipc Tm 650 2451
Pass
Testing High Temperaturehigh Humidity
Pass
Testing Note For Thermal Shock Resistance
Tested on PCB003 test boards
Testing Thermal Shock Resistance
Pass
Uncured Properties Nominal Viscosity
2,300 cP
