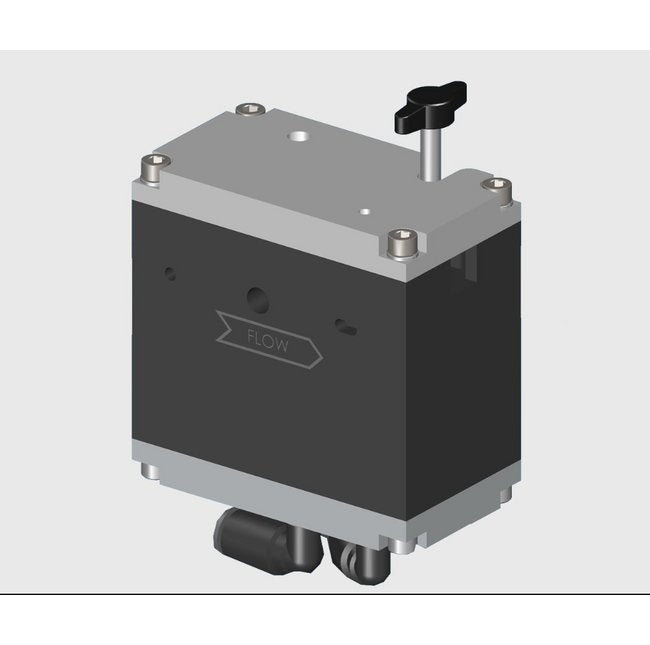

Dymax Pinch Valve with Disposable Fluid Path (15L)
Dymax Pinch Valve with Disposable Fluid Path (15L)
SKU:ADH-2c5df9
Reliable Dymax Pinch Valve with Disposable Fluid Path for precise, contamination-free material dispensing.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Dymax Pinch Valve with Disposable Fluid Path (15L)
$259.99
Quantity: 1
Claim Your Seller Account
Dymax Pinch Valve with Disposable Fluid Path (15L)
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Dymax Pinch Valve with Disposable Fluid Path is a reliable solution for precise material dispensing. With a robust construction using anodized aluminum, this normally closed valve offers efficient control over flow rates for a wide range of materials. It features a disposable fluid path that ensures contamination-free dispensing and easy cleanup, promoting rapid material changeovers. Ideal for low- to high-viscosity fluids, the valve minimizes air entrapment and prevents contact between the material and inner components. This valve is lightweight, easy to integrate into automated systems, and compatible with various reservoir setups. Trust Dymax for durable, effective fluid path solutions.
Product Specifications
Additional Information 0
The Model 830 valve can be integrated into an automated dispensing system and controlled with a three-way solenoid valve or paired with the Dymax® DVC-345 Digital Valve Controller and a material reservoir to create a bench-top dispensing system.
Dimensions Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Depth
1.75 in | 4.45 cm
Dimensions Dimension With Fittings And Hardware Height
3.25 in | 8.25 cm
Dimensions Dimension With Fittings And Hardware Width
4.75 in | 12.1 cm
Dimensions Height
3.125 in | 7.94 cm
Dimensions Width
3.125 in | 7.94 cm
Features 0
Disposable fluid path that carries materials from the material reservoir to the dispense tipFluids remain contaminate-free during dispensingPrevents air entrapment during the dispensing processEasy product changeover with minimal clean upFluid never comes in contact with the valve, reducing valve maintenance and extending the life of the valveOver-pinch adjustment prevents tubing damage and extends lifeAdjustable suck-back control eliminates drooling and filming over nozzleDrip-free dispense when dispensing thin or stringy materialsDispenses from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight, easy to handle and mount in automated or bench-top systems
Note 0
Pail drop-in - up to 15 Liter (straight or tapered)
Specifications Activation
Valve controller or 3-way Solenoid Valve
Specifications Construction Materials
Anodized Aluminum
Specifications Maximum Inlet Fluid Pressure
0 to 100 psi | 0 to 7 bar
Specifications Maximum Operating Temperature
104 ºF | 40 ºC
Specifications Maximum Tubing Outer Diameter Od
0.375 in | 9.53 mm
Specifications Operating Air Pressure
60 to 100 psi | 4 to 7 bar
Specifications Valve Type
Pinch Valve with Disposable Fluid Path, Normally Closed
Specifications Volume
Up to 15 L
Specifications Warranty
1 year
Specifications Weight
0.68 kg | 1.5 lb
