Dymax RediCure 365nm LED Spot-Curing System
Dymax RediCure 365nm LED Spot-Curing System
SKU:ULT-67794c
The Dymax RediCure offers precise 365nm LED spot-curing with energy-efficient technology for versatile applications.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Dymax RediCure 365nm LED Spot-Curing System
$1,899.99
Quantity: 1
Claim Your Seller Account
Dymax RediCure 365nm LED Spot-Curing System
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

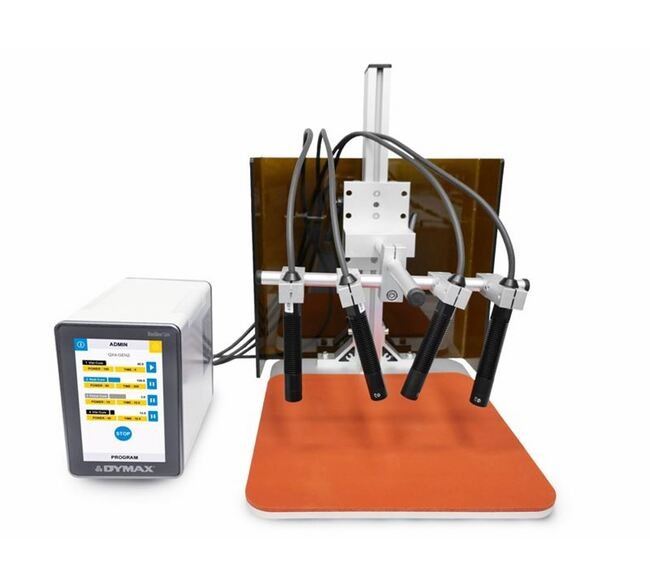

The Dymax RediCure 365nm LED Spot-Curing System, part of the BlueWave QX4 series, offers high-intensity spot-curing technology in a compact design. With versatile 365nm output wavelength LED heads that can operate independently, this system provides precise curing for a wide range of materials. Featuring energy-efficient instant on-off functionality and interchangeable focusing lenses, it ensures maximum flexibility and efficiency in curing applications. The PLC touch screen interface allows seamless integration into automated systems, making it a user-friendly solution for both consumer and institutional buyers.
Product Specifications
Additional Information 0

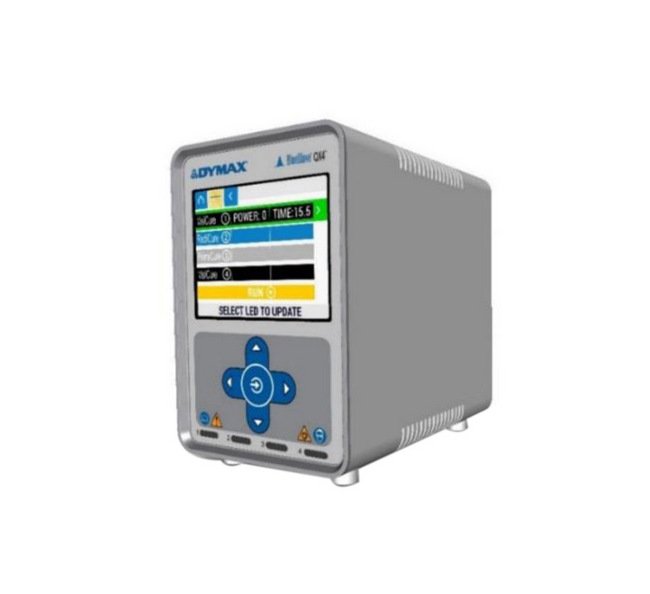

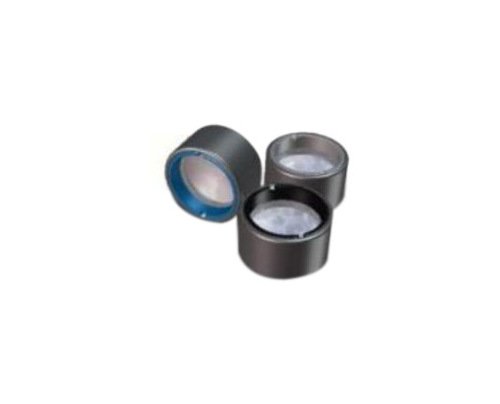

Each spot curing system can be outfitted with either the 3-, 5-, or 8-mm diameter focusing lenses. LED heads and focusing lenses can be used in any combination and can be controlled through the systemâs variable mode, a feature that allows each head to be individually programmed for intensity and cycle times. Individual exposure times and intensity settings can be set to 1% increments, giving users maximum curing flexibility.In addition to the curing flexibility, the BlueWave® QX4 V2.0 also features an easy-to-use control touch screen interface with the capacity to store up to 20 programs. The unit can be activated by a foot pedal or by PLC interface, allowing it to be easily incorporated into automated systems.The complete BlueWave QX4 V2.0 LED curing system is comprised of a controller/power supply with a footswitch, up to four LED heads/wands. A lens will need to be ordered for each head/wand in order to function properly. The length of the head/wand with the direct wired cable is 1.5 M (end to end). Components are sold separately.
Dimensions Controller Depth
5.5 in | 14.1 cm | 93.5 mm
Dimensions Controller Height
5.6 in | 13.7 cm | 137.4 mm
Dimensions Controller Width
3.5 in | 9.0 cm | 147.5 mm
Features And Benefits 0
One controller controls up to four LED heads for maximum application flexibilityLED heads for 365, 385, or 405 nm wavelengths for better compatibility with different light-curable materialsImproved, flexible LED heads can be programmed independently for accurate curingIndividual exposure times and intensity settings available in 1% increments for each LED head allows for maximum curing flexibilityInterchangeable/replaceable focusing lenses in 3-, 5-, and 8-mm diameters that allow tailoring of the unit to your curing requirementsInstant on-off â no warm-up period and more energy efficientEfficient LED temperature management for continuous operation without overheating and comfortable hand-held operating temperaturePLC touch screen interface that is easily incorporated into automated systems
System Specifications Controller Weight
2.2 lb | 1 kg
System Specifications Cooling
Natural Convection
System Specifications Head Weight
4.6 oz | 130 g
System Specifications Intensity Output
16.9 W/cm²
System Specifications Light Emitting Diode Led Activation
Footswitch | Front Panel | Programmable Logic Controller (PLC)
System Specifications Light Emitting Diode Led Head
RediCure®
System Specifications Light Emitting Diode Led Timer
0.1 to 999 s
System Specifications Operating Environment Non Condensing
10 to 40 ºC | 50 to 104 ºF
System Specifications Output Frequency
365 nm
System Specifications Power Supply Input Current
~1 A
System Specifications Power Supply Input Frequency
50 Hz | 60 Hz
System Specifications Power Supply Input Voltage
100 to 240 V
System Specifications Warranty
1 Year from Purchase Date
