Dymax SG-150-RS Spray Gun with Round Cap
Dymax SG-150-RS Spray Gun with Round Cap
SKU:ADH-b575b3
Achieve precise coatings with the Dymax SG-150-RS Spray Gun. Ideal for fluids under 10,000 cP viscosity.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Dymax SG-150-RS Spray Gun with Round Cap
$349.99
Quantity: 1
Claim Your Seller Account
Dymax SG-150-RS Spray Gun with Round Cap
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

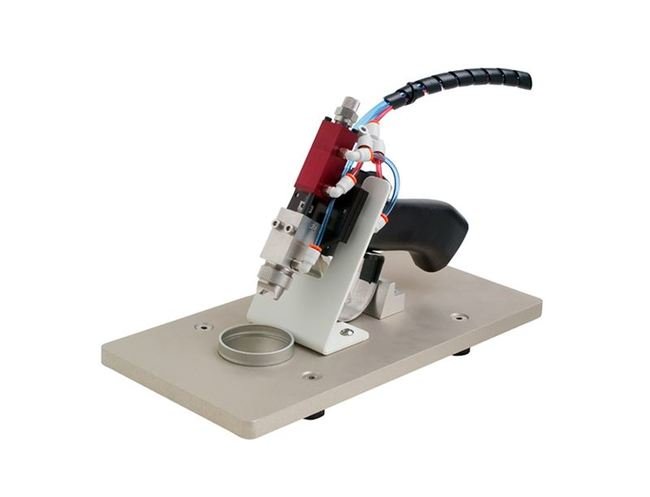

The Dymax SG-150-RS Standard-Flow Spray Gun with Round Cap is a top-of-the-line handheld spray gun designed for coating and masking applications. With a flow rate of 0.3 mL/s and compatibility with fluids below 10,000 cP viscosity, this spray gun offers precision and reliability. It features stainless steel, PTFE, and FFKM components, ensuring durability and compatibility with a wide range of fluids. The pneumatic operation, lightweight design, and easy material flow adjustment make it ideal for various industrial needs.
Product Specifications
Accessories 0
Item # - C-T16629Description - Clearance - High-precision air regulator for fluid pressureLimited quantities, please submit RFQ for pricing and availability. Certifications - Global (CE Marked)Item # - T15454Description - Sprayer stand with solvent cupCertifications - Global (CE Marked)Item # - T15697Description - Flat Spray Air CapCertifications - Global (CE Marked)Item # - T16307Description - Air Filter Regulator with air shut off Certifications - Global (CE Marked)Item # - T16787Description - Fluid Line Kit - 3/8? OD, PolyethyleneCertifications - Global (CE Marked)Item # - T16793Description - Fluid Line Kit - 1/4? OD, PolyethyleneCertifications - Global (CE Marked)
Additional Information 0
Both SG-150 models utilize a normally closed, stainless steel needle valve to control fluid flow and have a dual-acting air cylinder that provides immediate start/stop functionality. A stroke adjustment on the valve can be used to fine-tune the flow rate and a precision air regulator/gauge assembly simultaneously activates the atomizing air while the valve is opened and fluid is flowing. Both models are delivered with a round spray cap that provides a circular spray pattern, with an optional flat spray cap available if a linear or flat spray pattern is preferred.The guns' design incorporates a durable, lightweight, cast metal handle with pneumatic trigger mechanism so no additional electronic controls are required to activate the spray. The operator effortlessly controls the spray by manually pulling or releasing the trigger.Dymax® spray valves provide users with manual control over the valve and its spray and are ideal for the following applications:Masking of turbines or other metal surfaces before surface treatmentMasking medical implants before finishing treatmentsConformal coating of circuit boardsSpraying solvents for cleaning part surfacesCoating large parts with grease or other lubrication before assembly
Air Pressure Required Atomizing Air Pressure
0 to 15 psi | 0 to 1.03 bar
Air Pressure Required Valve Air Pressure
60 to 100 psi | 4.14 to 6.89 bar
Dimensions Air Regulator Stand Height
9 in | 22.8 cm
Dimensions Air Regulator Stand Length
8 in | 20.5 cm
Dimensions Air Regulator Stand Width
9 in | 22.8 cm
Dimensions Sprayer Height
8 in | 20.5 cm
Dimensions Sprayer Length
8 in | 20.5 cm
Dimensions Sprayer Width
4 in | 10.2 cm
Features 0
All wetted components are stainless steel, Polytetrafluoroethylene (PTFE), or Perfluoroelastomer (FFKM)Compatible with wide range of fluidsDispense from pressurized cartridges, bottles, and pails (requires appropriate reservoir hardware)Lightweight assembly with low trigger resistanceEasy adjustment of material flow and spray atomizationPneumatically operated, no power requiredSealed fluid body with no exposure to ambient conditionsEasy shutdown and cleanup
Fluid Input Fitting Fluid Input Fitting Tube Push
3/8 in
Fluid Input Fitting Outside Diameter Od Tubing
3/8 in
Product Spotlight 0
Dymax® High-Flow Handheld Sprayer with SpeedMask Masking ResinDymax® offers both standard and high-flow handheld sprayers for applying coatings, lubricants, masking resins, and other low-to-high viscosity fluids. Watch as the standard and high-flow sprayers are used to spray Dymax® SpeedMask masking resin. See the difference in flow rate between the two models.
Specifications Activation
Manually Controlled -Trigger Actuate
Specifications Certifications
Global (CE Marked)
Specifications Flow Rate
0.3 mL/s
Specifications Viscosity
<10,000 cP
Specifications Warranty
1 Year from Purchase (Excludes Soft Seals)
Spray Pattern Flat Air Cap Spray Pattern Optional Accessory
0.50 to 2.0 in | 12.70 to 50.80 mm
Spray Pattern Round Air Cap Spray Pattern Standard
0.25 to 1.0 in | 6.35 to 25.40 mm
Weight Air Regulator Stand Weight
6.6 lb | 3.0 kg
Weight Sprayer Weight
1.7 lb | 0.8 kg
