Dymax SG-200 Super-Flow Spray Gun with 20 oz Reservoir
Dymax SG-200 Super-Flow Spray Gun with 20 oz Reservoir
SKU:ADH-220925
Enhance productivity with the Dymax SG-200 Super-Flow Spray Gun for high-viscosity coating and masking applications
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Dymax SG-200 Super-Flow Spray Gun with 20 oz Reservoir
$399.99
Quantity: 1
Claim Your Seller Account
Dymax SG-200 Super-Flow Spray Gun with 20 oz Reservoir
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

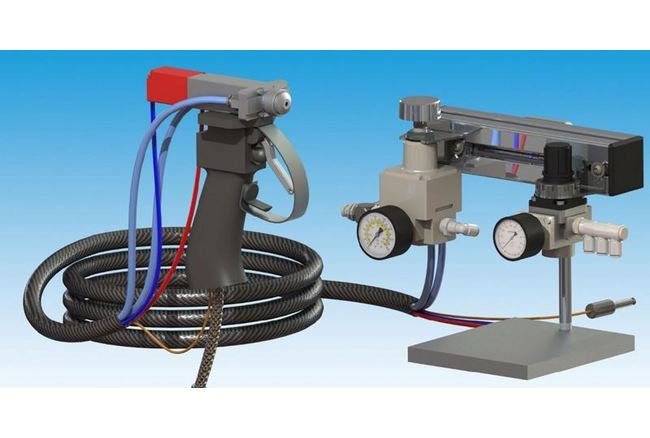

The Dymax SG-200 Super-Flow Spray Gun is a high-powered handheld sprayer designed for masking and coating applications with viscosities ranging from 5,000 cP to 80,000 cP. It offers a flow rate 5-10 times higher than the SG-100 models, delivering 2.5 - 20 oz per minute for enhanced productivity. Featuring a stainless steel needle valve, dual-acting air cylinder, and dual-port atomizing nozzle, this spray gun ensures symmetrical material delivery. Compatible with various accessories for customization, this system is designed for high-volume and large-part applications.
Product Specifications
Accessories 0
Item # - T11146Description - DVC-345 ControllerCertifications - Global (CE Marked)Item # - T15454Description - Front Closing Stand with Drip CupCertifications - Global (CE Marked)Item # - T15698Description - Round Air CapCertifications - Global (CE Marked)Item # - T16307Description - Air Filter Regulator with Shut OffCertifications - Global (CE Marked)Item # - T18005Description - High-Pressure Hose KitCertifications - Global (CE Marked)Item # - T18020Description - Flat Spray Air CapCertifications - Global (CE Marked)Item # - T21287Description - Material Regulator ModuleCertifications - Global (CE Marked)
Additional Information 0
Handheld SG-200 spray gun with needle valve and controlling air regulatorsModel 345 controller for remote switching or automated useSpray gun standAir Line Kit - 1/4 in (6.3 mm) OD tubing with fitting on one endSelected reservoir for fluid package used with airline kit 1/4 in (6.3 mm) OD tubingFluid line kit - 6 ft of black 3/8 in (9.5 mm) OD tubingFluid line kits - 6 ft of black 1/4 in: (6.3 mm) OD tubing and 3/8 in - 1/4 in (9.5 mm - 6.3 mm) stem fitting insertsAir pressure regulator - includes three pressure gauges0-30 psi (0-2 bar) for very low- to medium-viscosity materials0-60 psi (0-4.1 bar) for medium-viscosity materials
Applications 0
Masking of turbines or other metal surfaces before surface treatmentsMasking medical implants before finishingCoating large parts with grease or other lubrication before assemblySpraying solvents for cleaning part surfaces
Features 0
Configurations for low- and high-viscosity applicationsCompatible with light-curable conformal coatings and masking materialsHigh-quality, light-blocking stainless or polyethylene fluid tubing for maximum flow rateHigh-quality, precision air regulators supplied for precise fluid control and air atomizationHandheld and machine-mount configuration flexibilityAir filter regulator includes an integrated shutoff valve and pressure exhaust to quickly and safely depressurize the system, eliminating the need for the operator to open and close the regulatorEasy-to-open, swing-down toggles on the bottle and pail reservoirsHigh-viscosity supply capabilities with optional 11:1 ratio positive-displacement ram pump
Specifications Air Filterregulator Pressure
0 to 100 psi | 0 to 6.9 bar
Specifications Cartridge Reservoir Capacity
20 oz | 550 mL
Specifications Certifications
Global (CE Marked)
Specifications Flow Rate
2.5 to 20 oz/min
Specifications Outside Diameter Od Tubing
1/4 in | 3/8 in | 6.3 mm | 9.5 mm
Specifications Package
Low Viscosity
Specifications Stem Fitting
1/4 to 3/8 in | 6.3 to 9.5 mm
Specifications Tube Color
Black
Specifications Tube Length Fluid Line
6 ft
Specifications Viscosity
<5,000 cP
