Dymax SG-200 Super-Flow Sprayer System
Dymax SG-200 Super-Flow Sprayer System
SKU:ADH-2f9028
High-powered handheld sprayer for precise and efficient masking and coating applications. Achieve maximum productivity with control over viscosity and flow rate.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Dymax SG-200 Super-Flow Sprayer System
$799.99
Quantity: 1
Claim Your Seller Account
Dymax SG-200 Super-Flow Sprayer System
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

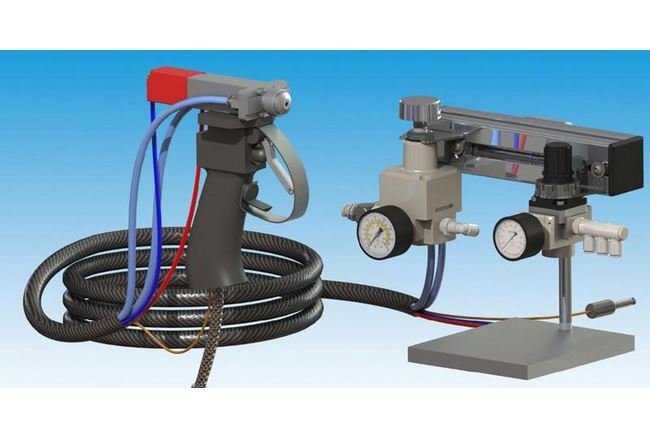

The Dymax SG-200 Super-Flow Sprayer System with 5-Gallon Ram Pump is a high-powered handheld sprayer designed for masking and coating applications with viscosities between 5,000 to 80,000 cP. Offering a flow rate 5-10 times higher than its predecessor, the SG-200 maximizes productivity in high-volume tasks. Its stainless steel needle valve and dual-acting air cylinder ensure precise control and immediate start/stop functionality. With features like configurable viscosity applications, compatible with light-curable materials, and high-viscosity supply capabilities, this system enhances efficiency and precision.
Product Specifications
Accessories 0
Item # - T11146Description - DVC-345 ControllerCertifications - Global (CE Marked)Item # - T15454Description - Front Closing Stand with Drip CupCertifications - Global (CE Marked)Item # - T15698Description - Round Air CapCertifications - Global (CE Marked)Item # - T16307Description - Air Filter Regulator with Shut OffCertifications - Global (CE Marked)Item # - T18005Description - High-Pressure Hose KitCertifications - Global (CE Marked)Item # - T18020Description - Flat Spray Air CapCertifications - Global (CE Marked)Item # - T21287Description - Material Regulator ModuleCertifications - Global (CE Marked)
Additional Information 0
Handheld SG-200 spray gun with needle valve and controlling air regulatorsModel 345 controller for remote switching or automated useSpray gun standFluid line kit - 6 ft braided SS hose, 3/8 in NPT swivelIn-line, downstream material regulatorAir precision regulator - includes three pressure gauges:0-30 psi (0-2 bar) for very low- to medium-viscosity materials0-80 psi (0-4.1 bar) for high-viscosity materials
Applications 0
Masking of turbines or other metal surfaces before surface treatmentsMasking medical implants before finishingCoating large parts with grease or other lubrication before assemblySpraying solvents for cleaning part surfaces
Features 0
Configurations for low- and high-viscosity applicationsCompatible with light-curable conformal coatings and masking materialsHigh-quality, light-blocking stainless or polyethylene fluid tubing for maximum flow rateHigh-quality, precision air regulators supplied for precise fluid control and air atomizationHandheld and machine-mount configuration flexibilityAir filter regulator includes an integrated shutoff valve and pressure exhaust to quickly and safely depressurize the system, eliminating the need for the operator to open and close the regulatorEasy-to-open, swing-down toggles on the bottle and pail reservoirsHigh-viscosity supply capabilities with optional 11:1 ratio positive-displacement ram pump
Specifications Air Filterregulator Pressure
0 to 100 psi | 0 to 6.9 bar
Specifications Certifications
Global (CE Marked)
Specifications Flow Rate
2.5 to 20 oz/min
Specifications Hose Material
Braided Stainless Steel
Specifications Package
High Viscosity
Specifications Positive Displacement Ram Pump Ratio
11:1
Specifications Swivel Size National Pipe Thread Npt
3/8 in
Specifications Taper Or Straight Pail
5 gal
Specifications Tube Length Fluid Line
6 ft
Specifications Viscosity
5,000 to 80,000 cP
